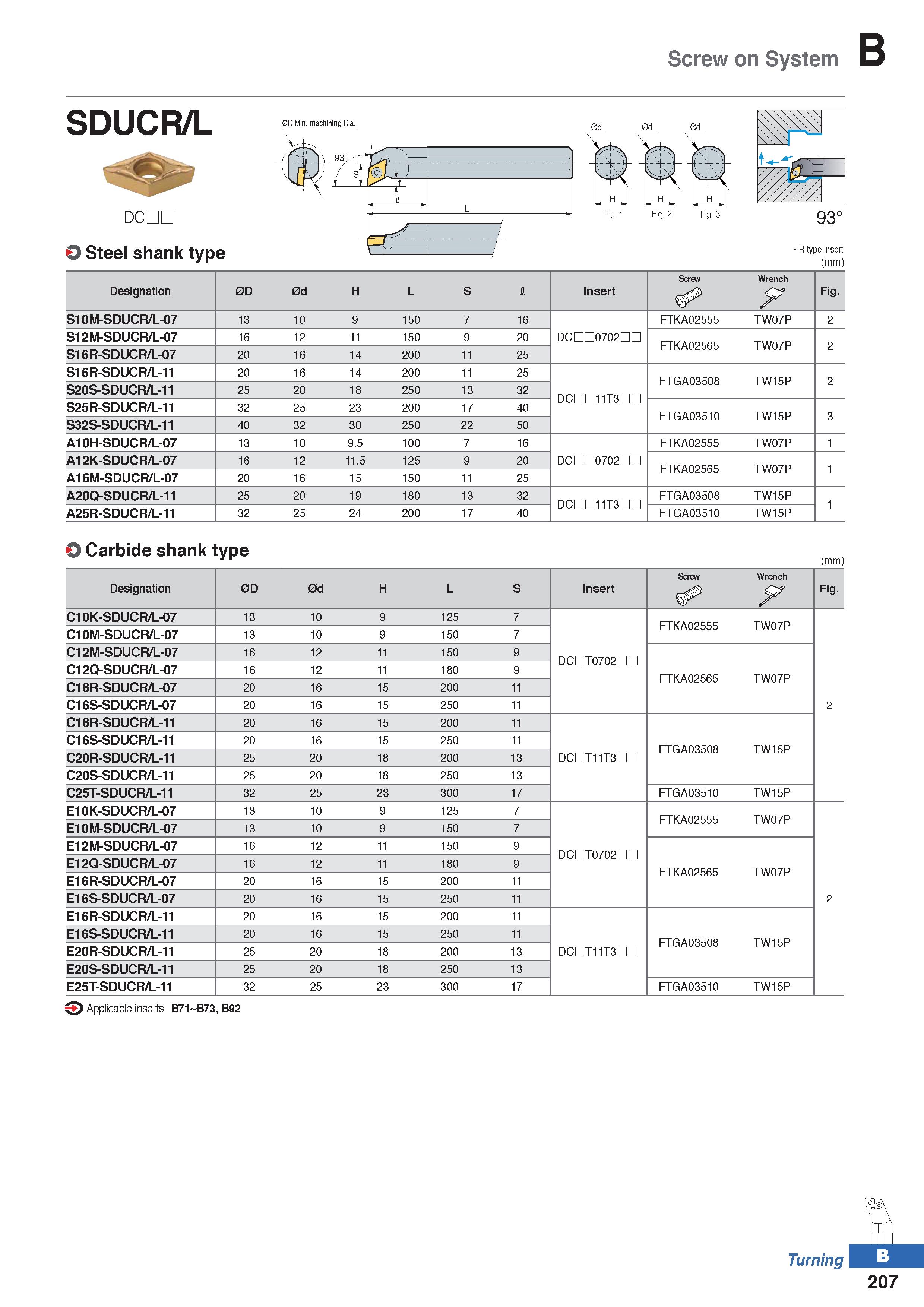

Screw on System SDUCR/L 0D Min. machining Dia. 0d 0d DCDL O Steel shank type , H J „ H m\ m H Fig. 1 Fig. 2 Fig. 3 R type insert (mm) Designation 0D 0d H L S I Insert Screw Wrench F Fig. S10M-SDUCR/L-07 13 10 9 150 7 16 FTKA02555 TW07P 2 S12M-SDUCR/L-07 16 12 11 150 9 20 DCDD0702nn FTKA02565 TW07P 2 S16R-SDUCR/L-07 20 16 14 200 11 25 S16R-SDUCR/L-11 20 16 14 200 11 25 FTGA03508 TW15P 2 S20S-SDUCR/L-11 25 20 18 250 13 32 DCH01T3DD S25R-SDUCR/L-11 32 25 23 200 17 40 FTGA03510 TW15P 3 S32S-SDUCR/L-11 40 32 30 250 22 50 A10H-SDUCR/L-07 13 10 9.5 100 7 16 FTKA02555 TW07P 1 A12K-SDUCR/L-07 16 12 11.5 125 9 20 DCDD0702nn FTKA02565 TW07P 1 A16M-SDUCR/L-07 20 16 15 150 11 25 A20Q-SDUCR/L-11 25 20 19 180 13 32 DCH01T3DD FTGA03508 TW15P 1 A25R-SDUCR/L-11 32 25 24 200 17 40 FTGA03510 TW15P O Carbide shank type (mm) Designation 0D 0d H L S Insert Screw Wrench F Fig. C10K-SDUCR/L-07 13 10 9 125 7 FTKA02555 TW07P C10M-SDUCR/L-07 13 10 9 150 7 C12M-SDUCR/L-07 16 12 11 150 9 DCDT0702DD C12Q-SDUCR/L-07 16 12 11 180 9 FTKA02565 TW07P C16R-SDUCR/L-07 20 16 15 200 11 C16S-SDUCR/L-07 20 16 15 250 11 2 C16R-SDUCR/L-11 20 16 15 200 11 C16S-SDUCR/L-11 20 16 15 250 11 FTGA03508 TW15P C20R-SDUCR/L-11 25 20 18 200 13 DCDT11T3DD C20S-SDUCR/L-11 25 20 18 250 13 C25T-SDUCR/L-11 32 25 23 300 17 FTGA03510 TW15P E10K-SDUCR/L-07 13 10 9 125 7 FTKA02555 TW07P E10M-SDUCR/L-07 13 10 9 150 7 E12M-SDUCR/L-07 16 12 11 150 9 DCDT0702DD E12Q-SDUCR/L-07 16 12 11 180 9 FTKA02565 TW07P E16R-SDUCR/L-07 20 16 15 200 11 E16S-SDUCR/L-07 20 16 15 250 11 2 E16R-SDUCR/L-11 20 16 15 200 11 E16S-SDUCR/L-11 20 16 15 250 11 FTGA03508 TW15P E20R-SDUCR/L-11 25 20 18 200 13 DCDT11T3DD E20S-SDUCR/L-11 25 20 18 250 13 E25T-SDUCR/L-11 32 25 23 300 17 FTGA03510 TW15P Applicable inserts B71 B73, B92 L Turning 207
