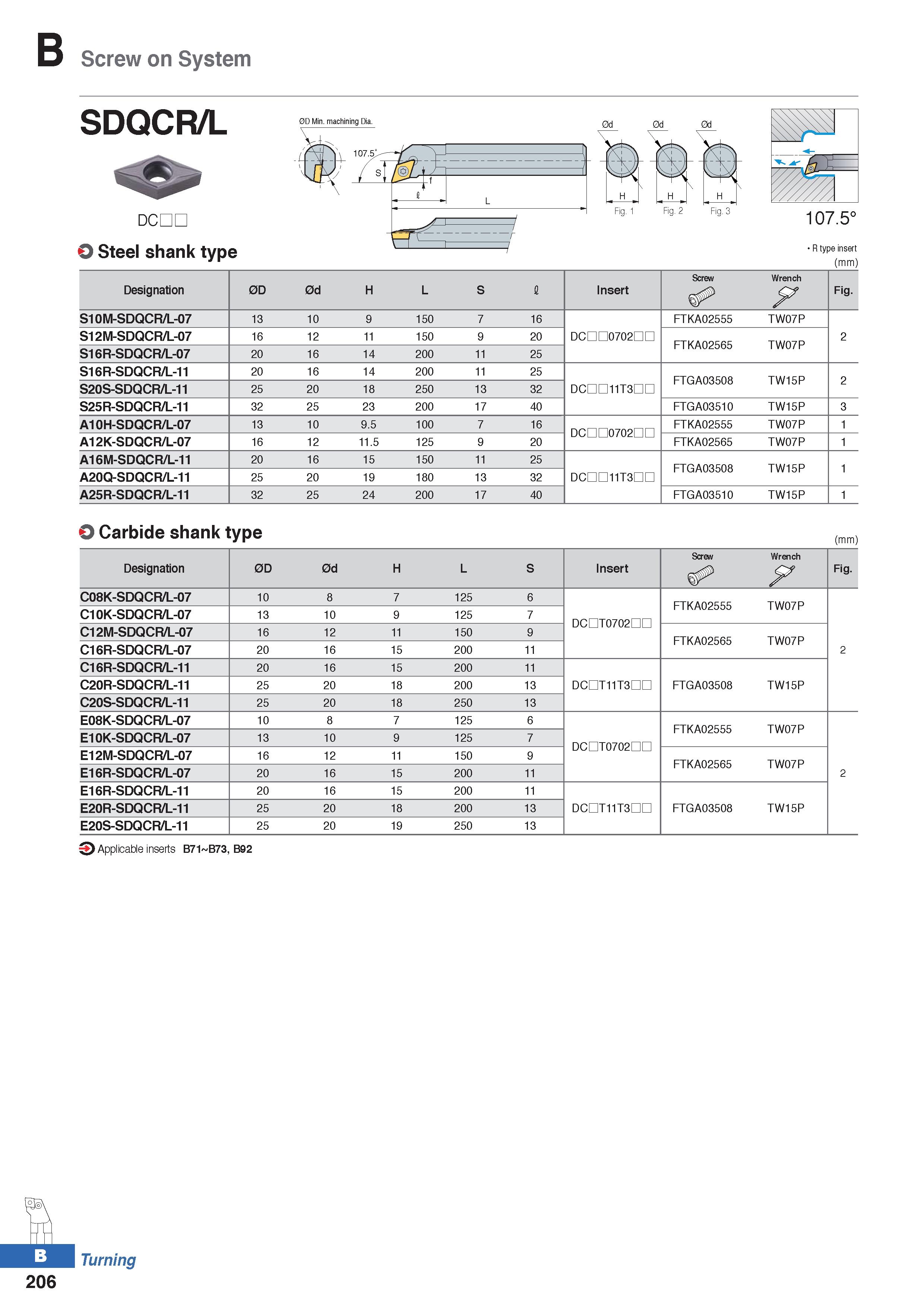

Screw on System SDQCR/L 0D Min. machining Dia. 0d 0d 0d DCDL O Steel shank type 107.5° R type insert (mm) Designation 0D 0d H L S I Insert Screw Wrench Fig. S10M-SDQCR/L-07 13 10 9 150 7 16 FTKA02555 TW07P S12M-SDQCR/L-07 16 12 11 150 9 20 DCDD0702nn FTKA02565 TW07P 2 S16R-SDQCR/L-07 20 16 14 200 11 25 S16R-SDQCR/L-11 20 16 14 200 11 25 FTGA03508 TW15P 2 S20S-SDQCR/L-11 25 20 18 250 13 32 DCDD11T3nn S25R-SDQCR/L-11 32 25 23 200 17 40 FTGA03510 TW15P 3 A10H-SDQCR/L-07 13 10 9.5 100 7 16 DCDD0702nn FTKA02555 TW07P 1 A12K-SDQCR/L-07 16 12 11.5 125 9 20 FTKA02565 TW07P 1 A16M-SDQCR/L-11 20 16 15 150 11 25 FTGA03508 TW15P 1 A20Q-SDQCR/L-11 25 20 19 180 13 32 DCDD11T3nn A25R-SDQCR/L-11 32 25 24 200 17 40 FTGA03510 TW15P 1 O Carbide shank type (mm) Designation 0D 0d H L S Insert Screw Wrench y Fig. C08K-SDQCR/L-07 10 8 7 125 6 FTKA02555 TW07P C10K-SDQCR/L-07 13 10 9 125 7 DCDT0702DD C12M-SDQCR/L-07 16 12 11 150 9 FTKA02565 TW07P C16R-SDQCR/L-07 20 16 15 200 11 2 C16R-SDQCR/L-11 20 16 15 200 11 C20R-SDQCR/L-11 25 20 18 200 13 DCDT11T3DD FTGA03508 TW15P C20S-SDQCR/L-11 25 20 18 250 13 E08K-SDQCR/L-07 10 8 7 125 6 FTKA02555 TW07P E10K-SDQCR/L-07 13 10 9 125 7 DCDT0702DD E12M-SDQCR/L-07 16 12 11 150 9 FTKA02565 TW07P E16R-SDQCR/L-07 20 16 15 200 11 2 E16R-SDQCR/L-11 20 16 15 200 11 E20R-SDQCR/L-11 25 20 18 200 13 DCDT11T3DD FTGA03508 TW15P E20S-SDQCR/L-11 25 20 19 250 13 0 Applicable inserts B71 B73, B92 Turning 206
