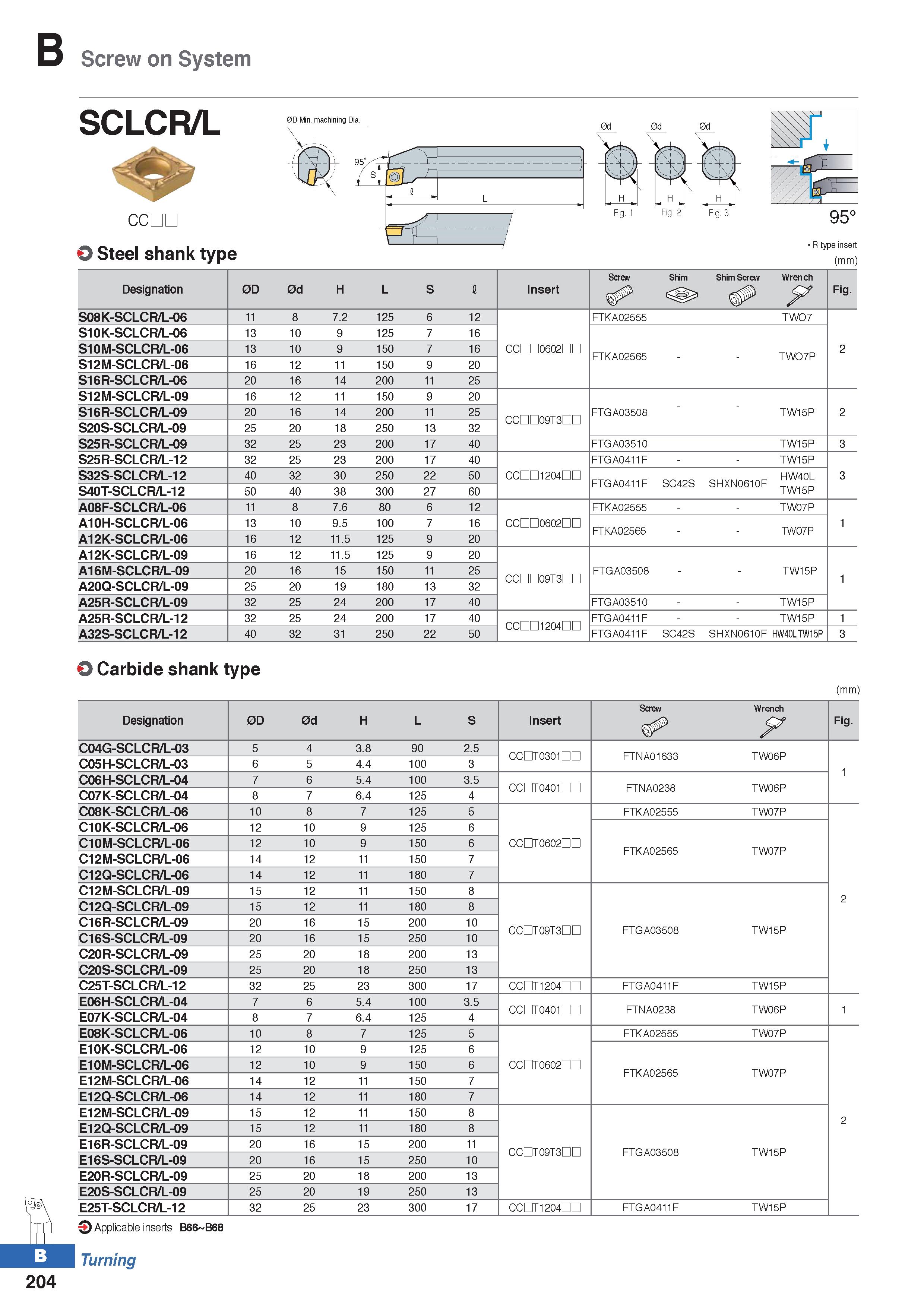

Screw on System SCLCR/L CCDL O Steel shank type H b Fig. 3 M- (C If 7A/A i-i 95° R type insert (mm) Designation 0D 0d H L S I Insert Screw Shim Shim Screw Wrench y Fig. S08K-SCLCR/L-06 11 8 7.2 125 6 12 FTKA02555 TWO7 S10K-SCLCR/L-06 13 10 9 125 7 16 S10M-SCLCR/L-06 13 10 9 150 7 16 ccnn0602nn FTKA02565 TWO7P 2 S12M-SCLCR/L-06 16 12 11 150 9 20 S16R-SCLCR/L-06 20 16 14 200 11 25 S12M-SCLCR/L-09 16 12 11 150 9 20 S16R-SCLCR/L-09 20 16 14 200 11 25 ccnn09T3nn FTGA03508 TW15P 2 S20S-SCLCR/L-09 25 20 18 250 13 32 S25R-SCLCR/L-09 32 25 23 200 17 40 FTGA03510 TW15P 3 S25R-SCLCR/L-12 32 25 23 200 17 40 FTGA0411F TW15P S32S-SCLCR/L-12 40 32 30 250 22 50 CCH0204HO FTGA0411F SC42S SHXN0610F HW40L 3 S40T-SCLCR/L-12 50 40 38 300 27 60 TW15P A08F-SCLCR/L-06 11 8 7.6 80 6 12 FTKA02555 TW07P A10H-SCLCR/L-06 13 10 9.5 100 7 16 ccnn0602nn FTKA02565 TW07P 1 A12K-SCLCR/L-06 16 12 11.5 125 9 20 A12K-SCLCR/L-09 16 12 11.5 125 9 20 A16M-SCLCR/L-09 20 16 15 150 11 25 ccnn09T3nn FTGA03508 TW15P 1 A20Q-SCLCR/L-09 25 20 19 180 13 32 A25R-SCLCR/L-09 32 25 24 200 17 40 FTGA03510 TW15P A25R-SCLCR/L-12 32 25 24 200 17 40 CCH0204HO FTGA0411F TW15P 1 A32S-SCLCR/L-12 40 32 31 250 22 50 FTGA0411F SC42S SHXN0610F HW40L,TW15P 3 0d O Carbide shank type (mm) Designation 0D 0d H L S Insert Screw Wrench P Fig. C04G-SCLCR/L-03 5 4 3.8 90 2.5 CCOT0301DD FTNA01633 TW06P C05H-SCLCR/L-03 6 5 4.4 100 3 C06H-SCLCR/L-04 7 6 5.4 100 3.5 CCOT0401DD FTNA0238 TW06P 1 C07K-SCLCR/L-04 8 7 6.4 125 4 C08K-SCLCR/L-06 10 8 7 125 5 FTKA02555 TW07P C10K-SCLCR/L-06 12 10 9 125 6 C10M-SCLCR/L-06 12 10 9 150 6 CCOT0602DD FTKA02565 TW07P C12M-SCLCR/L-06 14 12 11 150 7 C12Q-SCLCR/L-06 14 12 11 180 7 C12M-SCLCR/L-09 15 12 11 150 8 2 C12Q-SCLCR/L-09 15 12 11 180 8 C16R-SCLCR/L-09 20 16 15 200 10 CCCTT09T3DD FTGA03508 TW15P C16S-SCLCR/L-09 20 16 15 250 10 C20R-SCLCR/L-09 25 20 18 200 13 C20S-SCLCR/L-09 25 20 18 250 13 C25T-SCLCR/L-12 32 25 23 300 17 CCDT1204DD FTGA0411F TW15P E06H-SCLCR/L-04 7 6 5.4 100 3.5 CCOT0401DD FTNA0238 TW06P E07K-SCLCR/L-04 8 7 6.4 125 4 1 E08K-SCLCR/L-06 10 8 7 125 5 FTKA02555 TW07P E10K-SCLCR/L-06 12 10 9 125 6 E10M-SCLCR/L-06 12 10 9 150 6 CCOT0602DD FTKA02565 TW07P E12M-SCLCR/L-06 14 12 11 150 7 E12Q-SCLCR/L-06 14 12 11 180 7 E12M-SCLCR/L-09 15 12 11 150 8 2 E12Q-SCLCR/L-09 15 12 11 180 8 E16R-SCLCR/L-09 20 16 15 200 11 CCCTT09T3DD FTGA03508 TW15P E16S-SCLCR/L-09 20 16 15 250 10 E20R-SCLCR/L-09 25 20 18 200 13 E20S-SCLCR/L-09 25 20 19 250 13 E25T-SCLCR/L-12 32 25 23 300 17 CCDT1204DD FTGA0411F TW15P o Applicable inserts B66 B68 Turning 204
