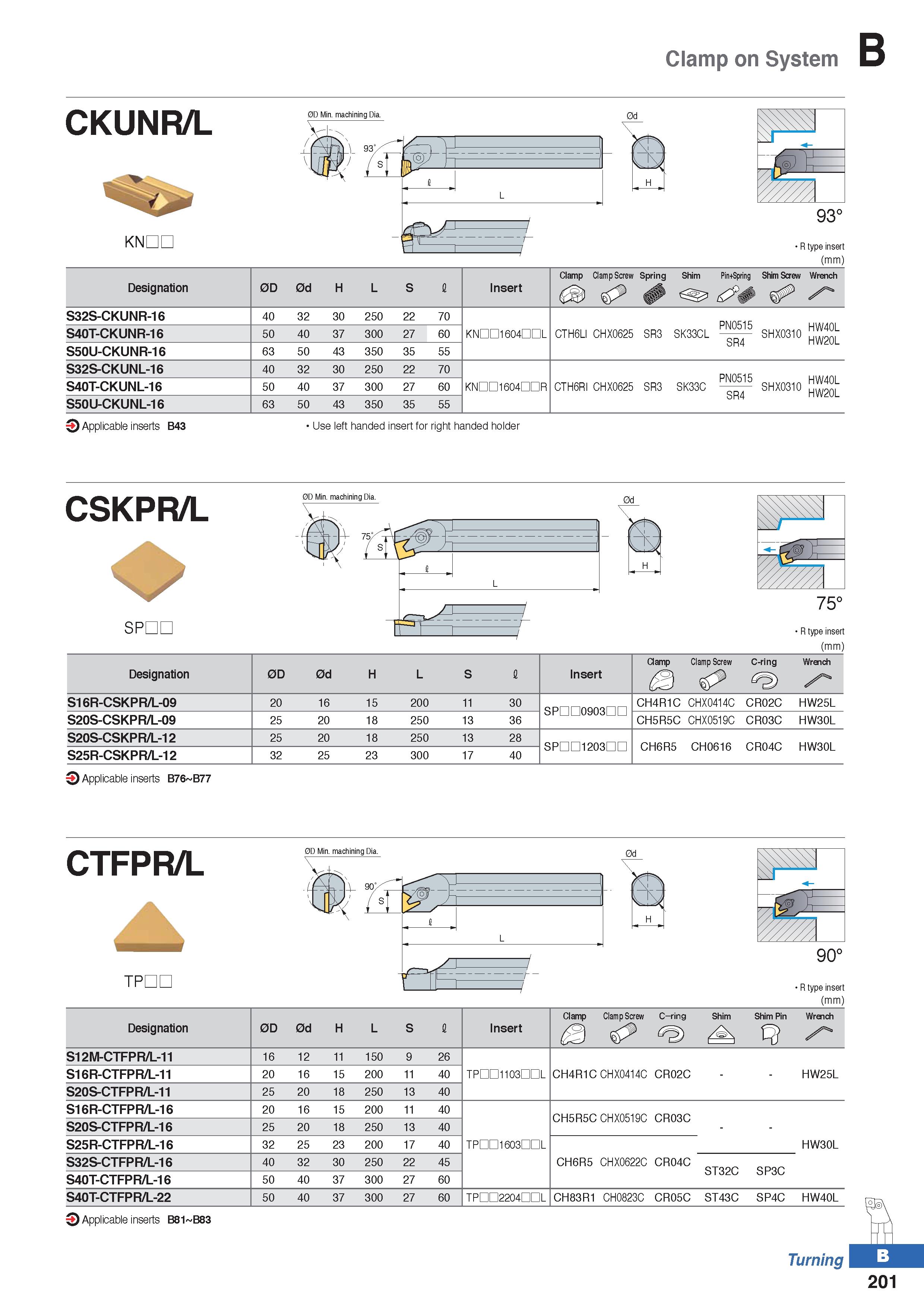

Clamp on System CKUNR/L KNDL 93° R type insert (mm) Designation 0D 0d H L S I Insert Clamp Clamp Screw Spring Shim Pin+Spring Shim Screw Wrench S32S-CKUNR-16 40 32 30 250 22 70 PN0515 SR4 HW40L HW20L S40T-CKUNR-16 50 40 37 300 27 60 KNH0604COL CTH6LI CHX0625 SR3 SK33CL SHX0310 S50U-CKUNR-16 63 50 43 350 35 55 S32S-CKUNL-16 40 32 30 250 22 70 PN0515 SR4 HW40L HW20L S40T-CKUNL-16 50 40 37 300 27 60 KNHQ604HOR CTH6RI CHX0625 SR3 SK33C SHX0310 S50U-CKUNL-16 63 50 43 350 35 55 3 Applicable inserts B43 Use left handed insert for right handed holder CSKPR/L 0D Min. machining Dia. SPDL 0d R type insert (mm) Designation 0D 0d H L S I Insert Clamp 3 Clamp Screw & C-ring Wrench s S16R-CSKPR/L-09 20 16 15 200 11 30 SPDD0903nn CH4R1C CHX0414C CR02C HW25L S20S-CSKPR/L-09 25 20 18 250 13 36 CH5R5C CHX0519C CR03C HW30L S20S-CSKPR/L-12 25 20 18 250 13 28 SPH0203DD CH6R5 CH0616 CR04C HW30L S25R-CSKPR/L-12 32 25 23 300 17 40 3 Applicable inserts B76 B77 CTFPR/L 0D Min. machining Dia. TPDL 90° R type insert (mm) Designation 0D 0d H L S I Insert Clamp Clamp Screw C-ring Shim Shim Pin Wrench S12M-CTFPR/L-11 16 12 11 150 9 26 S16R-CTFPR/L-11 20 16 15 200 11 40 TPHQ103COL CH4R1C CHX0414C CR02C HW25L S20S-CTFPR/L-11 25 20 18 250 13 40 S16R-CTFPR/L-16 20 16 15 200 11 40 CH5R5C CHX0519C CR03C S20S-CTFPR/L-16 25 20 18 250 13 40 S25R-CTFPR/L-16 32 25 23 200 17 40 TPHQ603HOL HW30L S32S-CTFPR/L-16 40 32 30 250 22 45 CH6R5 CHX0622C CR04C ST32C SP3C S40T-CTFPR/L-16 50 40 37 300 27 60 S40T-CTFPR/L-22 50 40 37 300 27 60 TPnn2204nnL CH83R1 CH0823C CR05C ST43C SP4C HW40L 3 Applicable inserts B81 B83 Turning 201 0d
