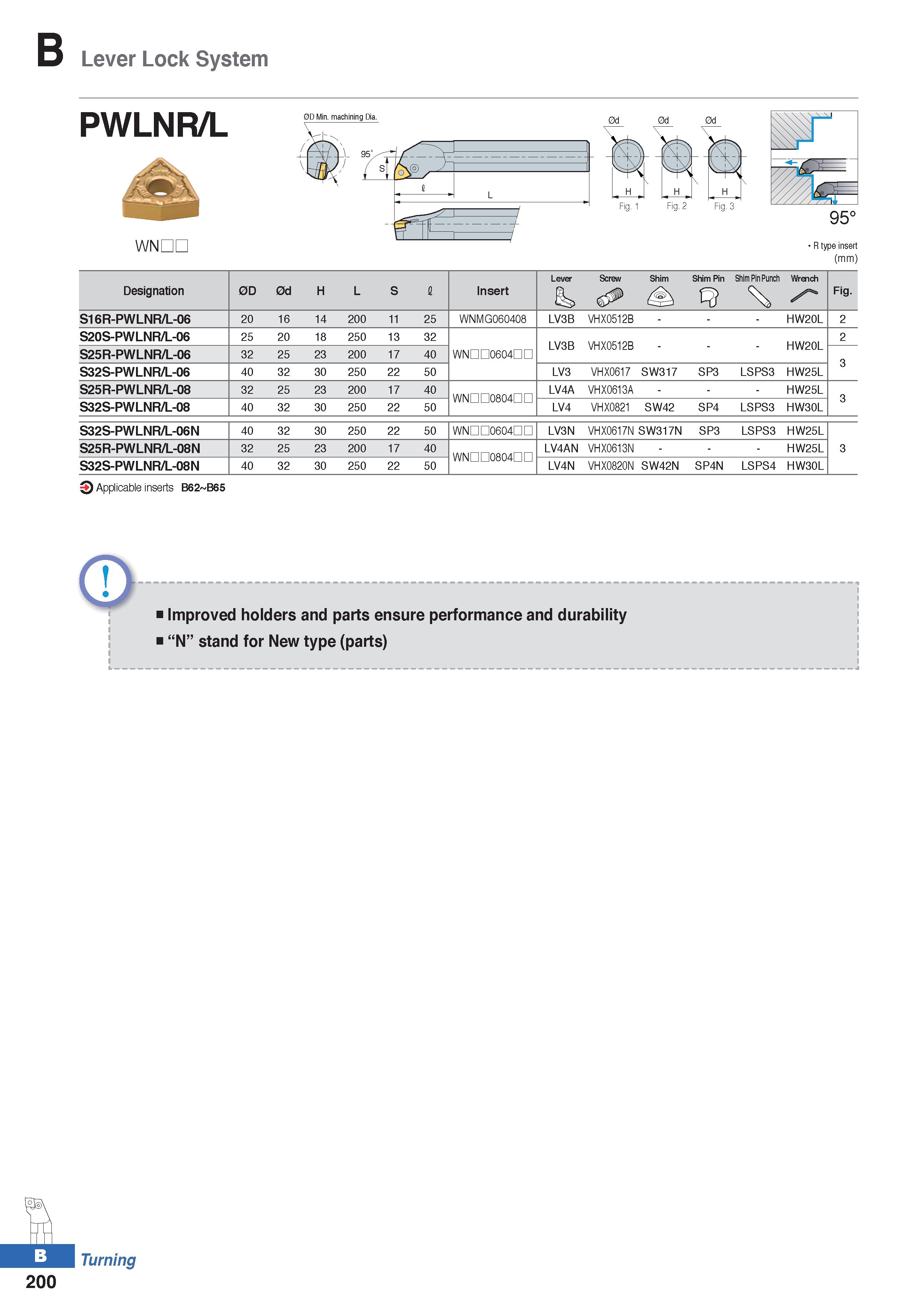

Lever Lock System PWLNR/L 0D Min. machining Dia. WNDL R type insert (mm) Designation 0D 0d H L S I Insert Lever Is, Screw & Shim Shim Pin Shim Pin Punch Wrench /" Fig. S16R-PWLNR/L-06 20 16 14 200 11 25 WNMG060408 LV3B VHX0512B - HW20L 2 S20S-PWLNR/L-06 25 20 18 250 13 32 LV3B VHX0512B HW20L 2 S25R-PWLNR/L-06 32 25 23 200 17 40 WNDD0604nn 3 S32S-PWLNR/L-06 40 32 30 250 22 50 LV3 VHX0617 SW317 SP3 LSPS3 HW25L S25R-PWLNR/L-08 32 25 23 200 17 40 WNnn0804nn LV4A VHX0613A - HW25L 3 S32S-PWLNR/L-08 40 32 30 250 22 50 LV4 VHX0821 SW42 SP4 LSPS3 HW30L S32S-PWLNR/L-06N 40 32 30 250 22 50 WNnn0604nn LV3N VHX0617N SW317N SP3 LSPS3 HW25L S25R-PWLNR/L-08N 32 25 23 200 17 40 WNDD0804nn LV4AN VHX0613N - HW25L 3 S32S-PWLNR/L-08N 40 32 30 250 22 50 LV4N VHX0820N SW42N SP4N LSPS4 HW30L O Applicable inserts B62 B65 i Improved holders and parts ensure performance and durability i “N” stand for New type (parts) Turning 200
