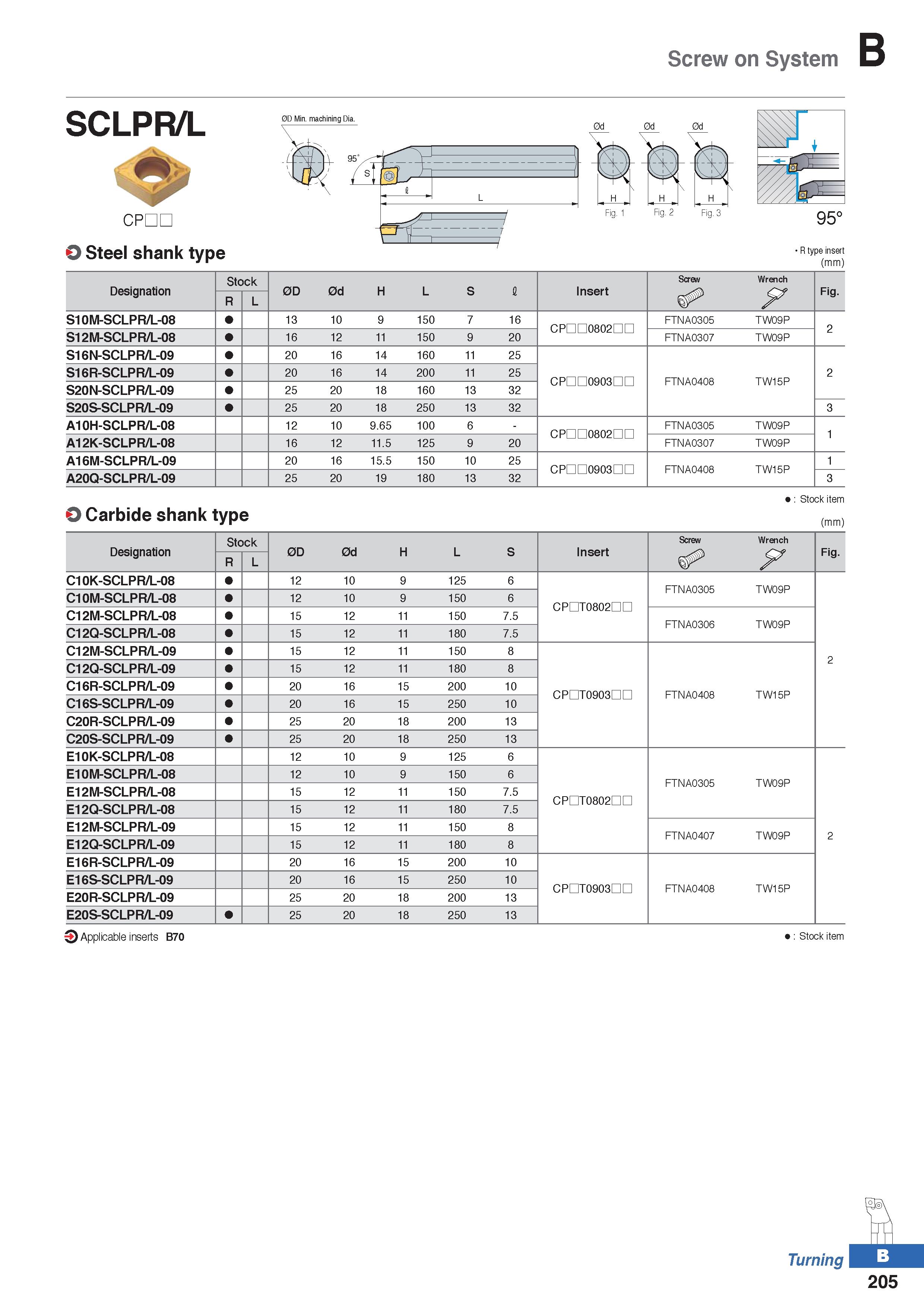

Screw on System SCLPR/L CPDL O Steel shank type R type insert (mm) Designation Stock 0D 0d H L S I Insert Screw Wrench Fig. R L F S10M-SCLPR/L-08 13 10 9 150 7 16 CPDD0802nn FTNA0305 TW09P 2 S12M-SCLPR/L-08 16 12 11 150 9 20 FTNA0307 TW09P S16N-SCLPR/L-09 20 16 14 160 11 25 S16R-SCLPR/L-09 20 16 14 200 11 25 CPDD0903nn FTNA0408 TW15P 2 S20N-SCLPR/L-09 25 20 18 160 13 32 S20S-SCLPR/L-09 25 20 18 250 13 32 3 A10H-SCLPR/L-08 12 10 9.65 100 6 - CPDD0802nn FTNA0305 TW09P 1 A12K-SCLPR/L-08 16 12 11.5 125 9 20 FTNA0307 TW09P A16M-SCLPR/L-09 20 16 15.5 150 10 25 CPDD0903nn FTNA0408 TW15P 1 A20Q-SCLPR/L-09 25 20 19 180 13 32 3 O Carbide shank type : Stock item (mm) Designation Stock 0D 0d H L S Insert Screw Wrench Fig. R L F C10K-SCLPR/L-08 12 10 9 125 6 FTNA0305 TW09P C10M-SCLPR/L-08 12 10 9 150 6 CPDT0802DD C12M-SCLPR/L-08 15 12 11 150 7.5 FTNA0306 TW09P C12Q-SCLPR/L-08 15 12 11 180 7.5 C12M-SCLPR/L-09 15 12 11 150 8 2 C12Q-SCLPR/L-09 15 12 11 180 8 C16R-SCLPR/L-09 20 16 15 200 10 CPDT0903DD FTNA0408 TW15P C16S-SCLPR/L-09 20 16 15 250 10 C20R-SCLPR/L-09 25 20 18 200 13 C20S-SCLPR/L-09 25 20 18 250 13 E10K-SCLPR/L-08 12 10 9 125 6 E10M-SCLPR/L-08 12 10 9 150 6 FTNA0305 TW09P E12M-SCLPR/L-08 15 12 11 150 7.5 CPDT0802DD E12Q-SCLPR/L-08 15 12 11 180 7.5 E12M-SCLPR/L-09 15 12 11 150 8 FTNA0407 TW09P 2 E12Q-SCLPR/L-09 15 12 11 180 8 E16R-SCLPR/L-09 20 16 15 200 10 E16S-SCLPR/L-09 20 16 15 250 10 CPDT0903DD FTNA0408 TW15P E20R-SCLPR/L-09 25 20 18 200 13 E20S-SCLPR/L-09 25 20 18 250 13 3 Applicable inserts B70 : Stock item Turning 205
