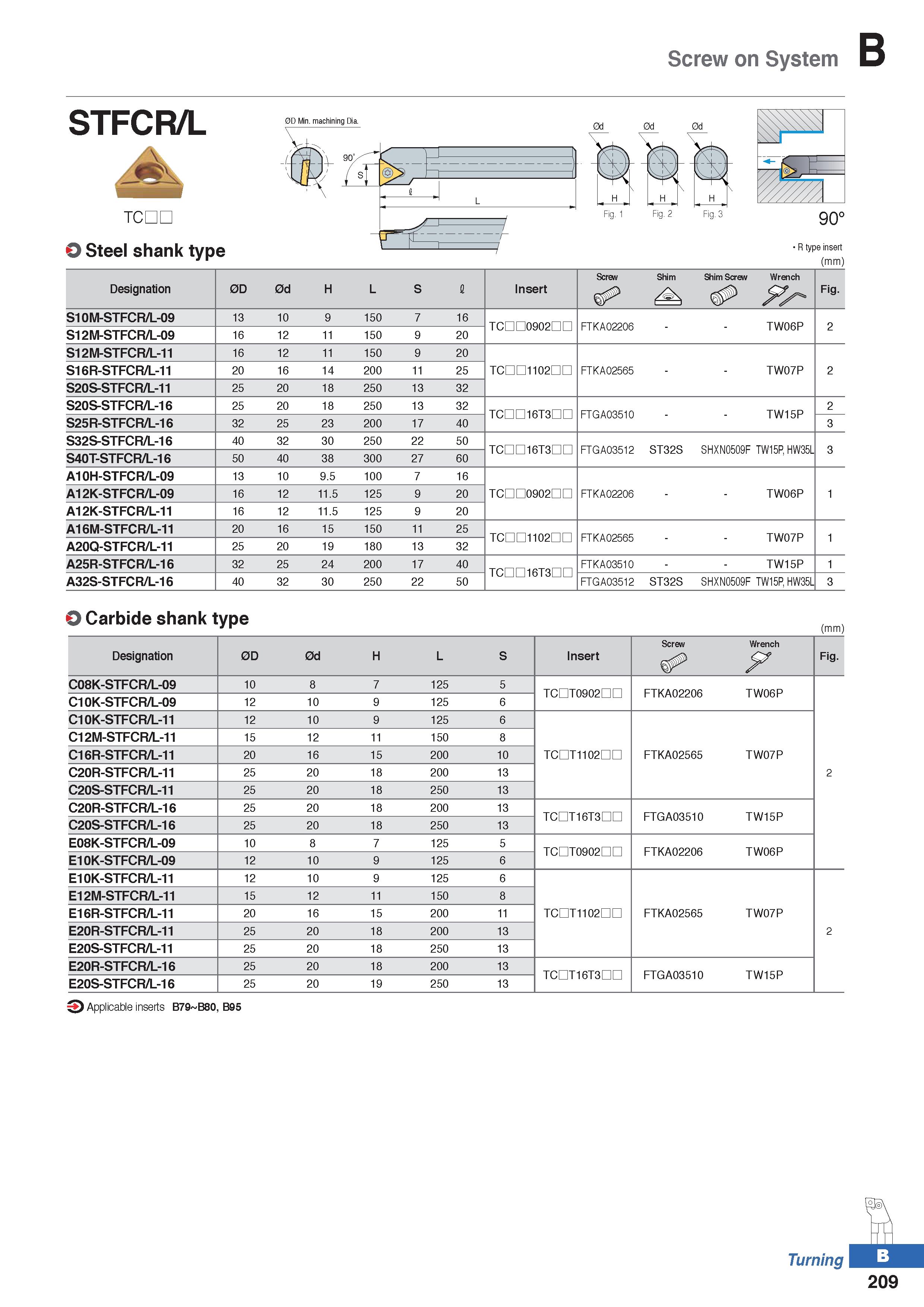

Screw on System stfcr/l TCDL O Steel shank type Fig. 1 Fig. 2 Fig. 3 R type insert (mm) Designation 0D 0d H L S I Insert Screw Shim Shim Screw Wrench Fig. S10M-STFCR/L-09 13 10 9 150 7 16 TCDD0902nn FTKA02206 TW06P 2 S12M-STFCR/L-09 16 12 11 150 9 20 S12M-STFCR/L-11 16 12 11 150 9 20 S16R-STFCR/L-11 20 16 14 200 11 25 TCH0102IIO FTKA02565 TW07P 2 S20S-STFCR/L-11 25 20 18 250 13 32 S20S-STFCR/L-16 25 20 18 250 13 32 TCDD16T3nn FTGA03510 TW15P 2 S25R-STFCR/L-16 32 25 23 200 17 40 3 S32S-STFCR/L-16 40 32 30 250 22 50 TCDD16T3nn FTGA03512 ST32S 3 S40T-STFCR/L-16 50 40 38 300 27 60 A10H-STFCR/L-09 13 10 9.5 100 7 16 A12K-STFCR/L-09 16 12 11.5 125 9 20 TCDD0902nn FTKA02206 TW06P 1 A12K-STFCR/L-11 16 12 11.5 125 9 20 A16M-STFCR/L-11 20 16 15 150 11 25 TCH0102IIO FTKA02565 TW07P 1 A20Q-STFCR/L-11 25 20 19 180 13 32 A25R-STFCR/L-16 32 25 24 200 17 40 TCDD16T3nn FTKA03510 TW15P 1 A32S-STFCR/L-16 40 32 30 250 22 50 FTGA03512 ST32S SHXN0509F TW15P, HW35L 3 O Carbide shank type (mm) Designation 0D 0d H L S Insert Screw Wrench y Fig. C08K-STFCR/L-09 10 8 7 125 5 TCDT0902DD FTKA02206 TW06P C10K-STFCR/L-09 12 10 9 125 6 C10K-STFCR/L-11 12 10 9 125 6 C12M-STFCR/L-11 15 12 11 150 8 C16R-STFCR/L-11 20 16 15 200 10 TCDT1102DD FTKA02565 TW07P C20R-STFCR/L-11 25 20 18 200 13 2 C20S-STFCR/L-11 25 20 18 250 13 C20R-STFCR/L-16 25 20 18 200 13 TCDT16T3DD FTGA03510 TW15P C20S-STFCR/L-16 25 20 18 250 13 E08K-STFCR/L-09 10 8 7 125 5 TCDT0902DD FTKA02206 TW06P E10K-STFCR/L-09 12 10 9 125 6 E10K-STFCR/L-11 12 10 9 125 6 E12M-STFCR/L-11 15 12 11 150 8 E16R-STFCR/L-11 20 16 15 200 11 TCDT1102DD FTKA02565 TW07P E20R-STFCR/L-11 25 20 18 200 13 2 E20S-STFCR/L-11 25 20 18 250 13 E20R-STFCR/L-16 25 20 18 200 13 TCDT16T3DD FTGA03510 TW15P E20S-STFCR/L-16 25 20 19 250 13 0 Applicable inserts B79 B80, B95 0d Turning 209
