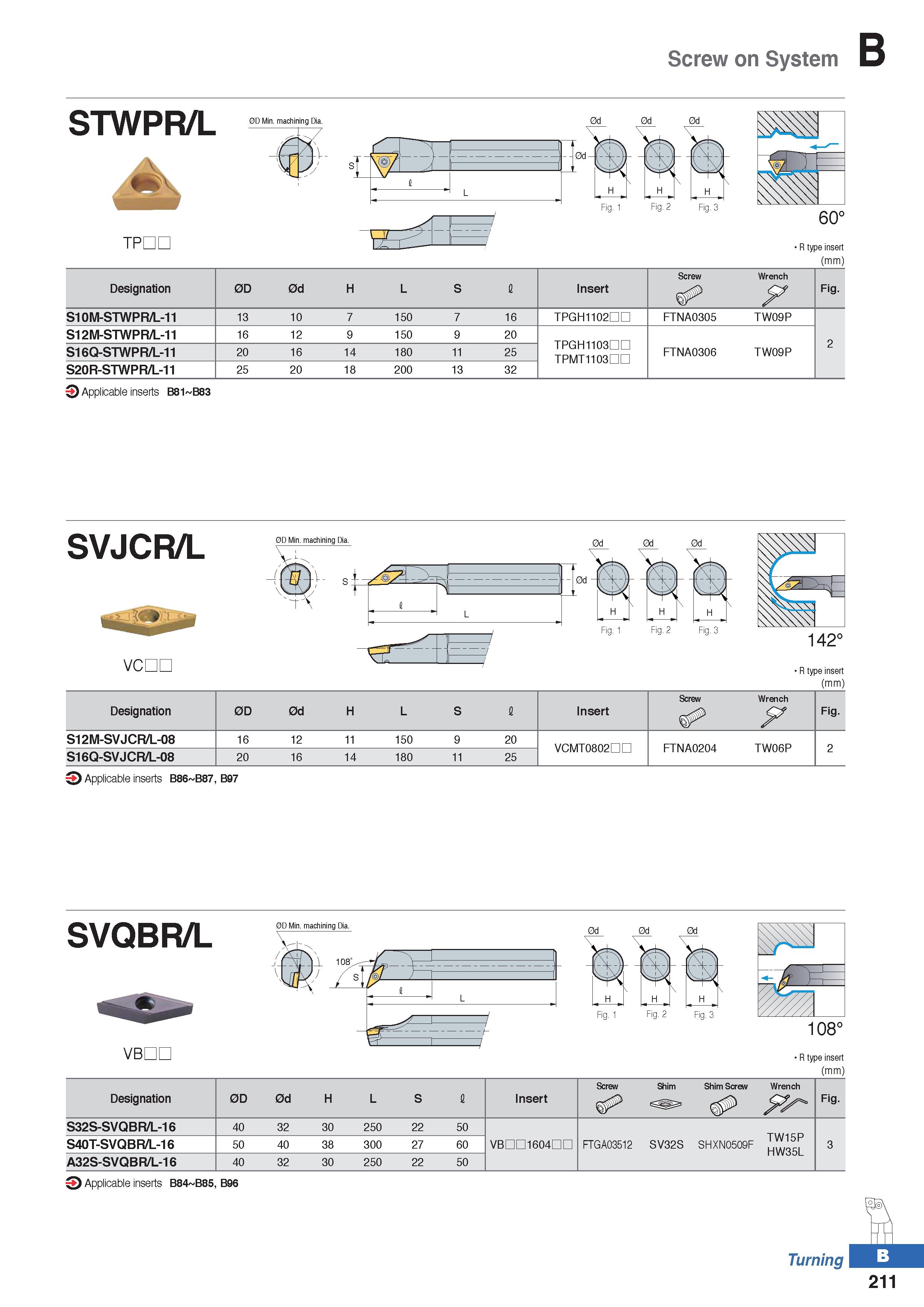

Screw on System STWPR/L A 0D Min. machining Dia. 0d 0d 0d TPDL Fig. 2 Fig. 3 60° R type insert (mm) Designation 0D 0d H L S I Insert Screw Wrench Fig. S10M-STWPR/L-11 13 10 7 150 7 16 TPGH1102DD FTNA0305 TW09P S12M-STWPR/L-11 16 12 9 150 9 20 TPGH1103DD TPMT1103DD 2 S16Q-STWPR/L-11 20 16 14 180 11 25 FTNA0306 TW09P S20R-STWPR/L-11 25 20 18 200 13 32 O Applicable inserts B81 B83 SVJCR/L 0D Min. machining Dia. 0d 0d 0d 142° R type insert (mm) Screw Wrench Designation 0D 0d H L S I Insert F Fig. S12M-SVJCR/L-08 16 12 11 150 9 20 VCMT0802DD FTNA0204 TW06P 2 S16Q-SVJCR/L-08 20 16 14 180 11 25 0 Applicable inserts B86 B87, B97 SVQBR/L 0D Min. machining Dia. VBDL 0d 0d 0d H Fig. 1 Fig. 2 Fig. 3 108° R type insert (mm) Designation 0D 0d H L S I Insert Screw Shim Shim Screw Wrench Fig. S32S-SVQBR/L-16 40 32 30 250 22 50 TW15P HW35L S40T-SVQBR/L-16 50 40 38 300 27 60 VBHD1604DD FTGA03512 SV32S SHXN0509F 3 A32S-SVQBR/L-16 40 32 30 250 22 50 Applicable inserts B84 B85, B96 Turning
