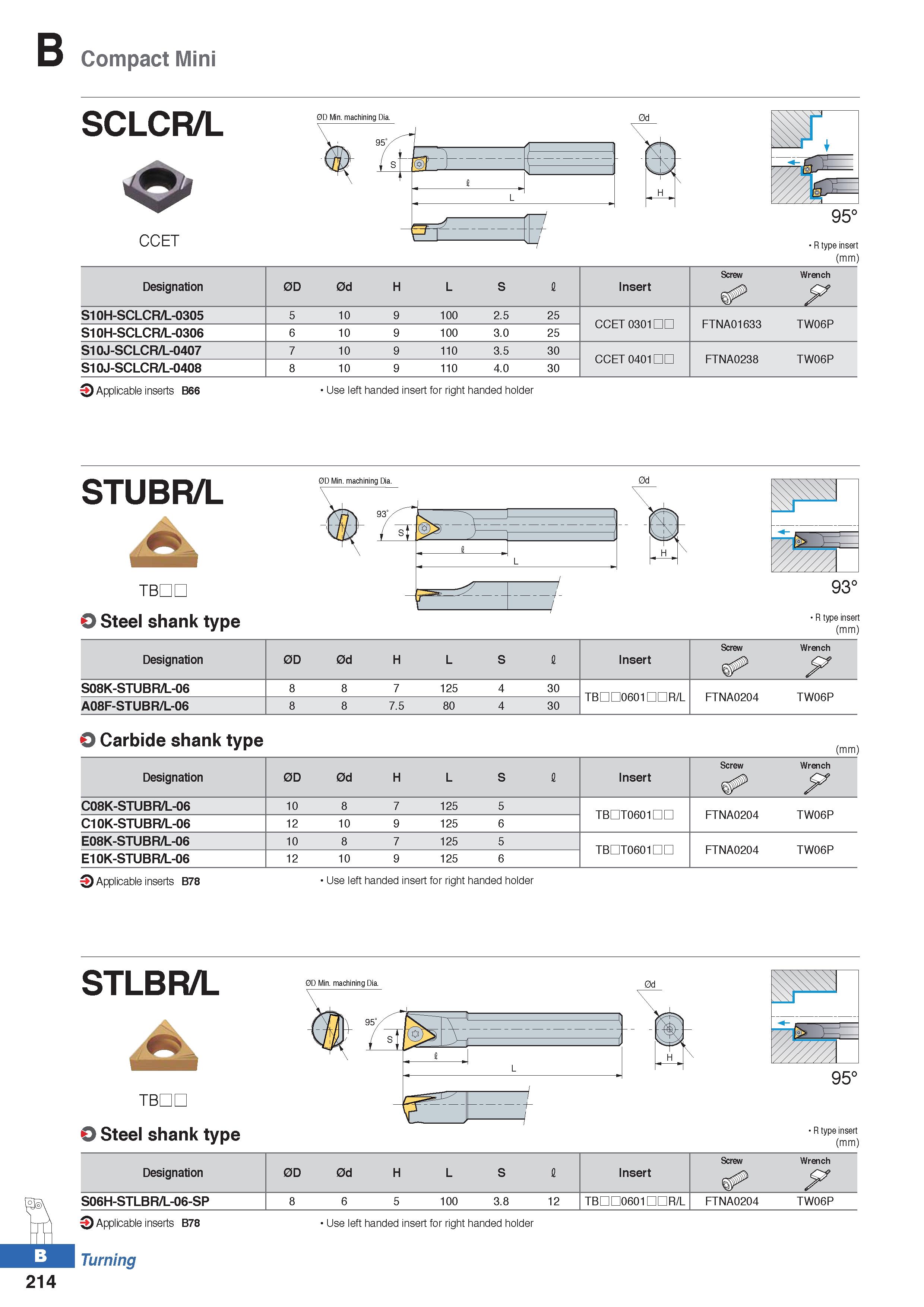

Compact Mini SCLCR/L CCET 0D Min. machining Dia. 0d R type insert (mm) Screw Wrench Designation 0D 0d H L S I Insert P S10H-SCLCR/L-0305 5 10 9 100 2.5 25 CCET 0301 FTNA01633 TW06P S10H-SCLCR/L-0306 6 10 9 100 3.0 25 S10J-SCLCR/L-0407 7 10 9 110 3.5 30 CCET 0401 FTNA0238 TW06P S10J-SCLCR/L-0408 8 10 9 110 4.0 30 o Applicable inserts B66 Use left handed insert for right handed holder stubr/l 0D Min. machining Dia. TBDL O Steel shank type R type insert (mm) Designation 0D 0d H L S I Insert Screw Wrench y S08K-STUBR/L-06 8 8 7 125 4 30 TBDD0601HOR/L FTNA0204 TW06P A08F-STUBR/L-06 8 8 7.5 80 4 30 O Carbide shank type (mm) Screw Wrench Designation 0D 0d H L S I Insert y C08K-STUBR/L-06 10 8 7 125 5 TBDT0601DD FTNA0204 TW06P C10K-STUBR/L-06 12 10 9 125 6 E08K-STUBR/L-06 10 8 7 125 5 TBDT0601DD FTNA0204 TW06P E10K-STUBR/L-06 12 10 9 125 6 9 Applicable inserts B78 Use left handed insert for right handed holder 0d 214 STLBR/L TBDL O Steel shank type o Applicable inserts B78 Turning 0D Min. machining Dia. 0d i J R type insert (mm) Designation 0D 0d H L S I Insert Screw Wrench y S06H-STLBR/L-06-SP 8 6 5 100 3.8 12 TBDD0601HOR/L FTNA0204 TW06P Use left handed insert for right handed holder L
