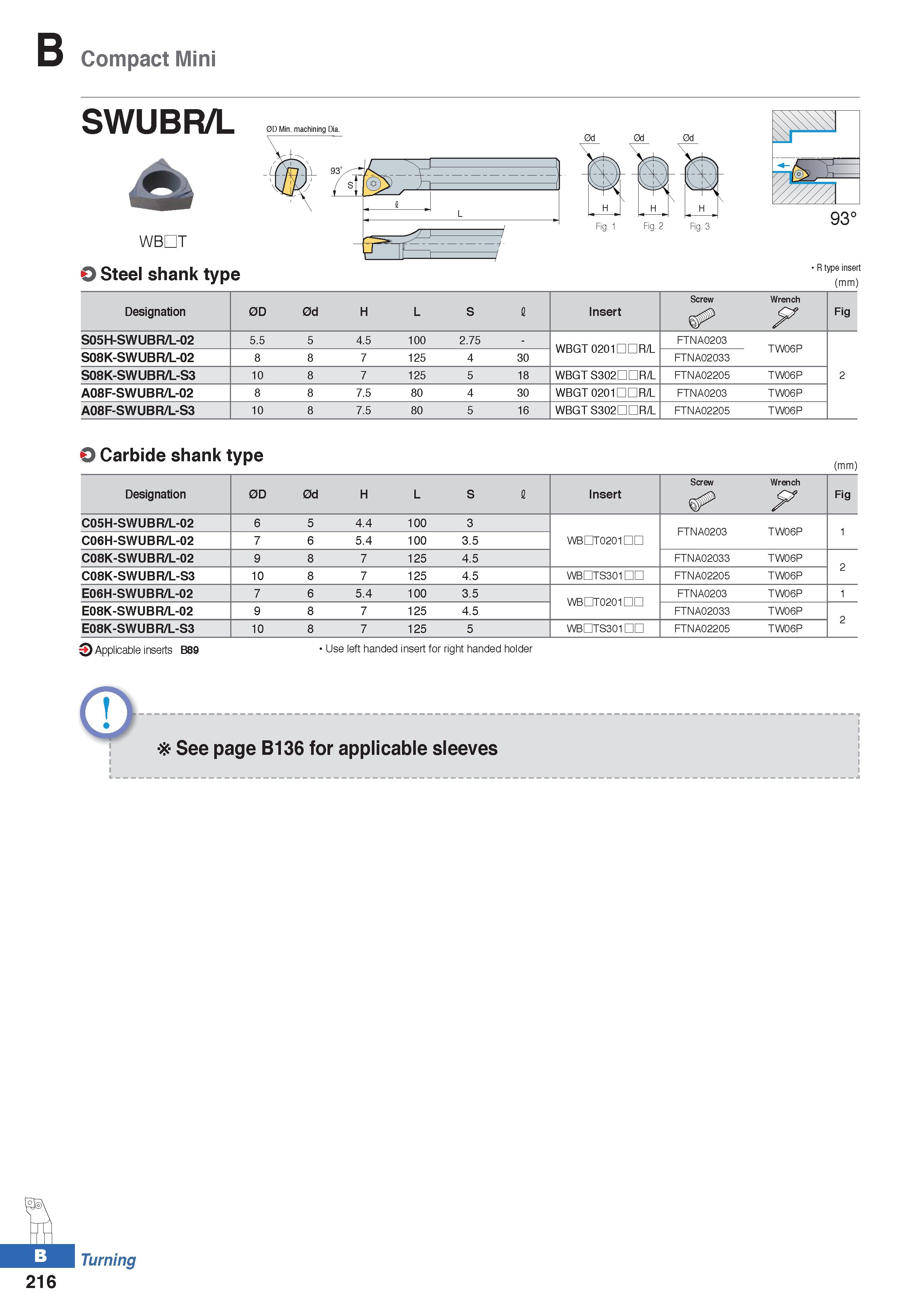

Compact Mini SWUBR/L 0D Min. machining Dia. 0d 0d 0d WBDT O Steel shank type H Fig. 3 R type insert (mm) Screw Wrench Designation 0D 0d H L S I Insert Fig S05H-SWUBR/L-02 5.5 5 4.5 100 2.75 - WBGT 0201 R/L FTNA0203 TW06P S08K-SWUBR/L-02 8 8 7 125 4 30 FTNA02033 S08K-SWUBR/L-S3 10 8 7 125 5 18 WBGT S302DDR/L FTNA02205 TW06P 2 A08F-SWUBR/L-02 8 8 7.5 80 4 30 WBGT 0201 R/L FTNA0203 TW06P A08F-SWUBR/L-S3 10 8 7.5 80 5 16 WBGT S302DDR/L FTNA02205 TW06P O Carbide shank type (mm) Screw Wrench Designation 0D 0d H L S I Insert F Fig C05H-SWUBR/L-02 6 5 4.4 100 3 FTNA0203 TW06P C06H-SWUBR/L-02 7 6 5.4 100 3.5 WBDT0201Dn 1 C08K-SWUBR/L-02 9 8 7 125 4.5 FTNA02033 TW06P 2 C08K-SWUBR/L-S3 10 8 7 125 4.5 WBDTS301 FTNA02205 TW06P E06H-SWUBR/L-02 7 6 5.4 100 3.5 WBDT0201CD FTNA0203 TW06P 1 E08K-SWUBR/L-02 9 8 7 125 4.5 FTNA02033 TW06P 2 E08K-SWUBR/L-S3 10 8 7 125 5 WBDTS301 FTNA02205 TW06P 3 Applicable inserts B89 Use left handed insert for right handed holder Turning 216
