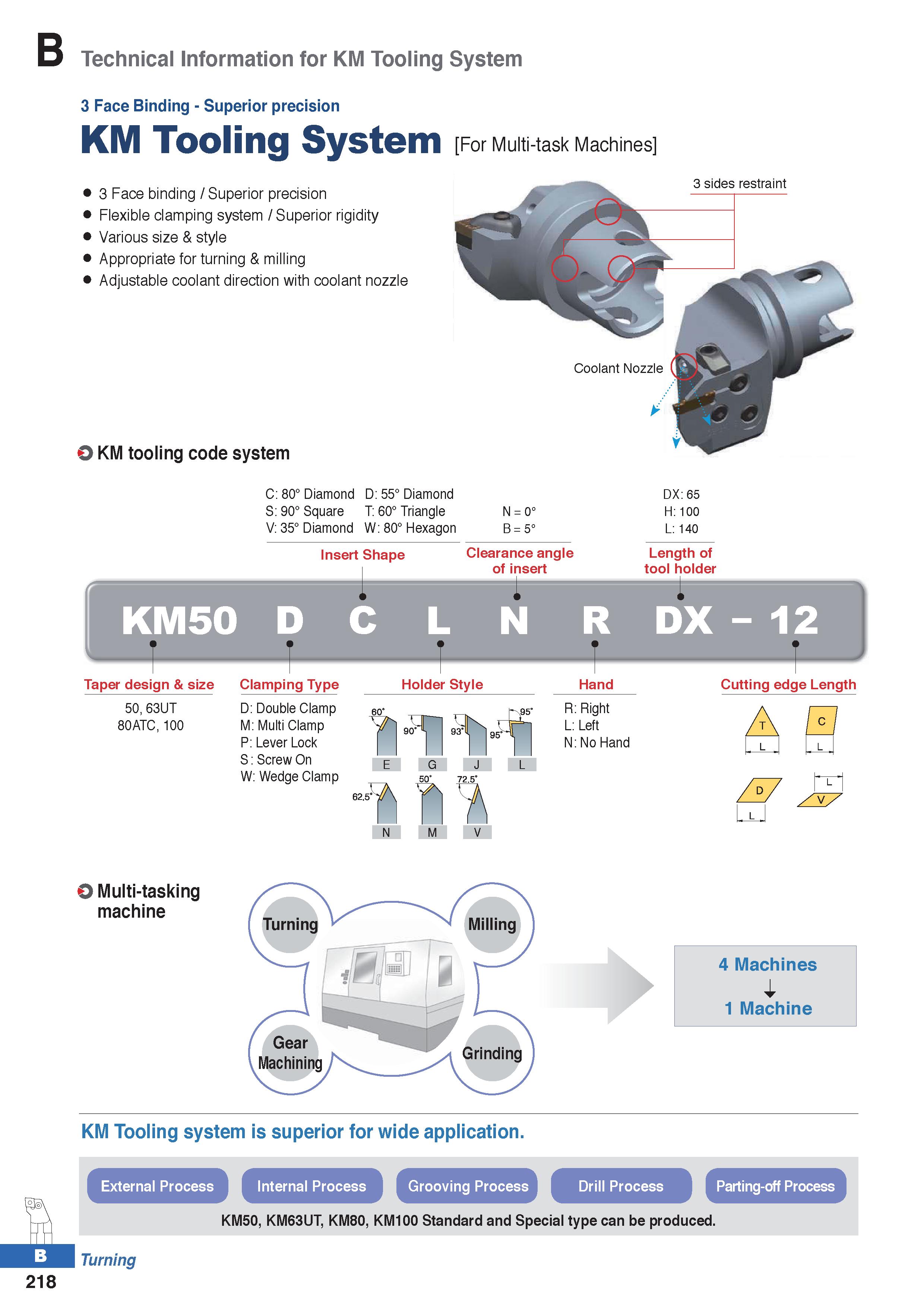

B Technical Information for KM Tooling System 3 Face Binding - Superior precision KM Tooling System For Multi-task Machines 3 Face binding / Superior precision . Flexible clamping system / Superior rigidity Various size & style Appropriate for turning & milling Adjustable coolant direction with coolant nozzle 3 sides restraint O KM tooling code system C: 80° Diamond D: 55° Diamond S: 90° Square T: 60° Triangle N = 0° V: 35° Diamond W : 80° Hexagon B = 5° Insert Shape Clearance angle of insert DX: 65 H: 100 L: 140 Length of tool holder KM50 D C N R DX - 12 Taper design & size 50, 63UT 80ATC,100 Clamping Type D: Double Clamp M: Multi Clamp P: Lever Lock S: Screw On W: Wedge Clamp Holder Style E G J 62.5° 50‘ N M V Hand R: Right L: Left N: No Hand Cutting edge Length O Multi-tasking machine KM Tooling system is superior for wide application. External Process Internal Process Grooving Process KM50, KM63UT, KM80, KM100 Standard and Special type can be produced. Turning 218 L
