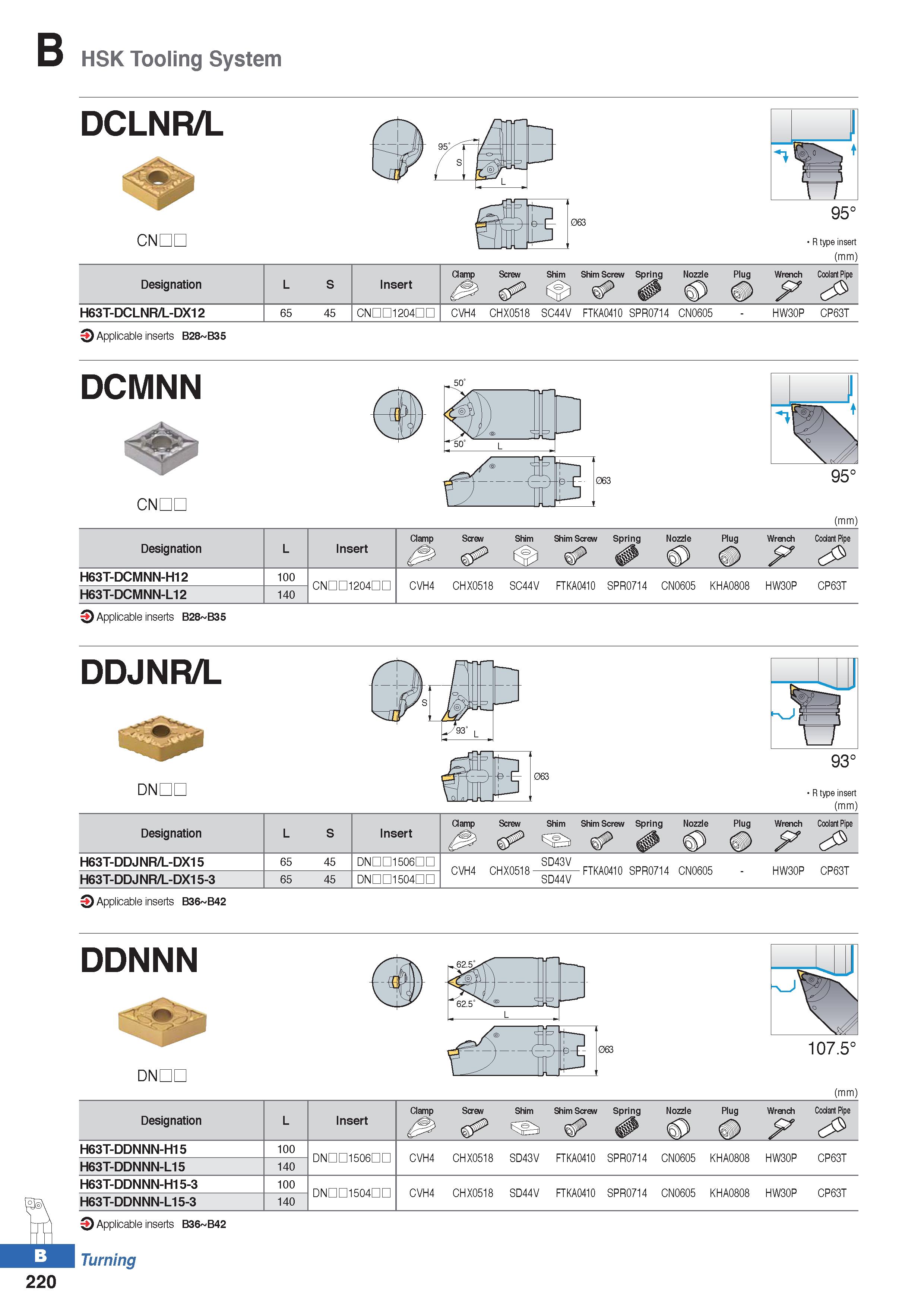

HSK Tooling System DCLNR/L CNDL 95° R type insert (mm) Designation L S Insert Clamp Screw 5 Shim Shim Screw Nozzle Plug Wrench y Coolant Pipe H63T-DCLNR/L-DX12 65 45 CNnn1204nn CVH4 CHX0518 SC44V FTKA0410 SPR0714 CN0605 - HW30P CP63T 3 Applicable inserts B28 B35 DCMNN CNDL (mm) Designation L Insert Clamp Screw Shim Shim Screw Spring Nozzle Plug Wrench Coolant Pipe H63T-DCMNN-H12 100 CNDD1204nn CVH4 CHX0518 SC44V FTKA0410 SPR0714 CN0605 KHA0808 HW30P CP63T H63T-DCMNN-L12 140 3 Applicable inserts B28 B35 DDJNR/L R type insert (mm) Designation L S Insert Clamp Screw Shim Shim Screw I Spring Nozzle Plug Q Wrench Coolant Pipe H63T-DDJNR/L-DX15 65 45 DNDD1506nn CVH4 CHX0518 SD43V SPR0714 CN0605 - HW30P CP63T H63T-DDJNR/L-DX15-3 65 45 DNnn1504nn SD44V 3 Applicable inserts B36 B42 DDNNN DNDL LLU 107.5° (mm) Designation L Insert Clamp Screw 5 Shim Shim Screw Spring Nozzle Plug Wrench Coolant Pipe H63T-DDNNN-H15 100 DNnn1506nn CVH4 CHX0518 SD43V FTKA0410 SPR0714 CN0605 KHA0808 HW30P CP63T H63T-DDNNN-L15 140 H63T-DDNNN-H15-3 100 DNDD1504nn CVH4 CHX0518 SD44V FTKA0410 SPR0714 CN0605 KHA0808 HW30P CP63T H63T-DDNNN-L15-3 140 3 Applicable inserts B36 B42 Turning 220 063
