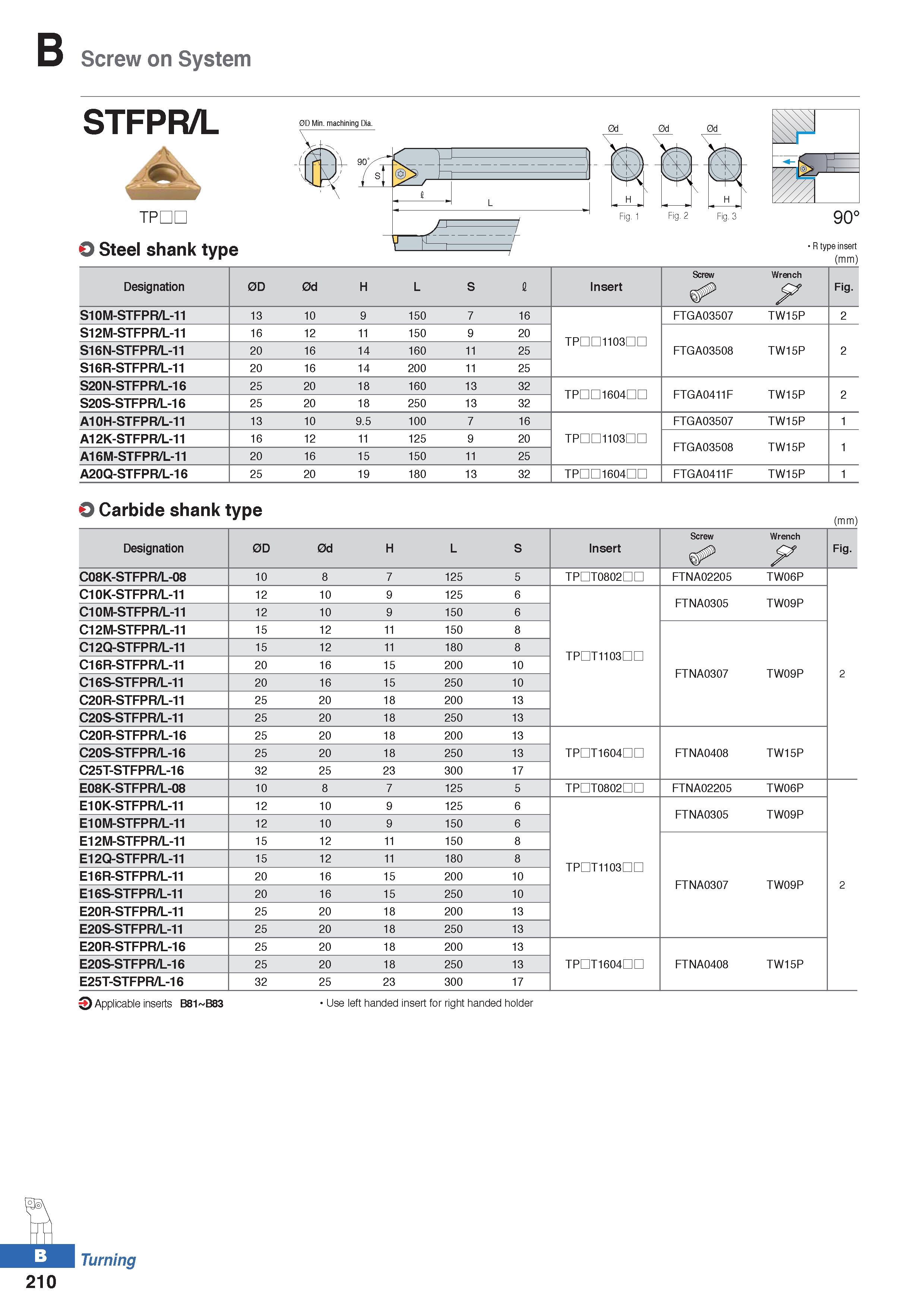

Screw on System STFPR/L TPDL O Steel shank type R type insert (mm) Designation 0D 0d H L S I Insert Screw Wrench F Fig. S10M-STFPR/L-11 13 10 9 150 7 16 FTGA03507 TW15P 2 S12M-STFPR/L-11 16 12 11 150 9 20 TPDD1103nn S16N-STFPR/L-11 20 16 14 160 11 25 FTGA03508 TW15P 2 S16R-STFPR/L-11 20 16 14 200 11 25 S20N-STFPR/L-16 25 20 18 160 13 32 TPDD1604IID FTGA0411F TW15P 2 S20S-STFPR/L-16 25 20 18 250 13 32 A10H-STFPR/L-11 13 10 9.5 100 7 16 FTGA03507 TW15P 1 A12K-STFPR/L-11 16 12 11 125 9 20 TPDD1103nn FTGA03508 TW15P 1 A16M-STFPR/L-11 20 16 15 150 11 25 A20Q-STFPR/L-16 25 20 19 180 13 32 TPDD1604IID FTGA0411F TW15P 1 O Carbide shank type (mm) Designation 0D 0d H L S Insert Screw Wrench F Fig. C08K-STFPR/L-08 10 8 7 125 5 TPDT0802DD FTNA02205 TW06P C10K-STFPR/L-11 12 10 9 125 6 FTNA0305 TW09P C10M-STFPR/L-11 12 10 9 150 6 C12M-STFPR/L-11 15 12 11 150 8 C12Q-STFPR/L-11 15 12 11 180 8 TPDT1103DD C16R-STFPR/L-11 20 16 15 200 10 FTNA0307 TW09P 2 C16S-STFPR/L-11 20 16 15 250 10 C20R-STFPR/L-11 25 20 18 200 13 C20S-STFPR/L-11 25 20 18 250 13 C20R-STFPR/L-16 25 20 18 200 13 C20S-STFPR/L-16 25 20 18 250 13 TPDT1604DD FTNA0408 TW15P C25T-STFPR/L-16 32 25 23 300 17 E08K-STFPR/L-08 10 8 7 125 5 TPDT0802DD FTNA02205 TW06P E10K-STFPR/L-11 12 10 9 125 6 FTNA0305 TW09P E10M-STFPR/L-11 12 10 9 150 6 E12M-STFPR/L-11 15 12 11 150 8 E12Q-STFPR/L-11 15 12 11 180 8 TPDT1103DD E16R-STFPR/L-11 20 16 15 200 10 FTNA0307 TW09P 2 E16S-STFPR/L-11 20 16 15 250 10 E20R-STFPR/L-11 25 20 18 200 13 E20S-STFPR/L-11 25 20 18 250 13 E20R-STFPR/L-16 25 20 18 200 13 E20S-STFPR/L-16 25 20 18 250 13 TPDT1604DD FTNA0408 TW15P E25T-STFPR/L-16 32 25 23 300 17 Applicable inserts B81 B83 Use left handed insert for right handed holder Turning 210
