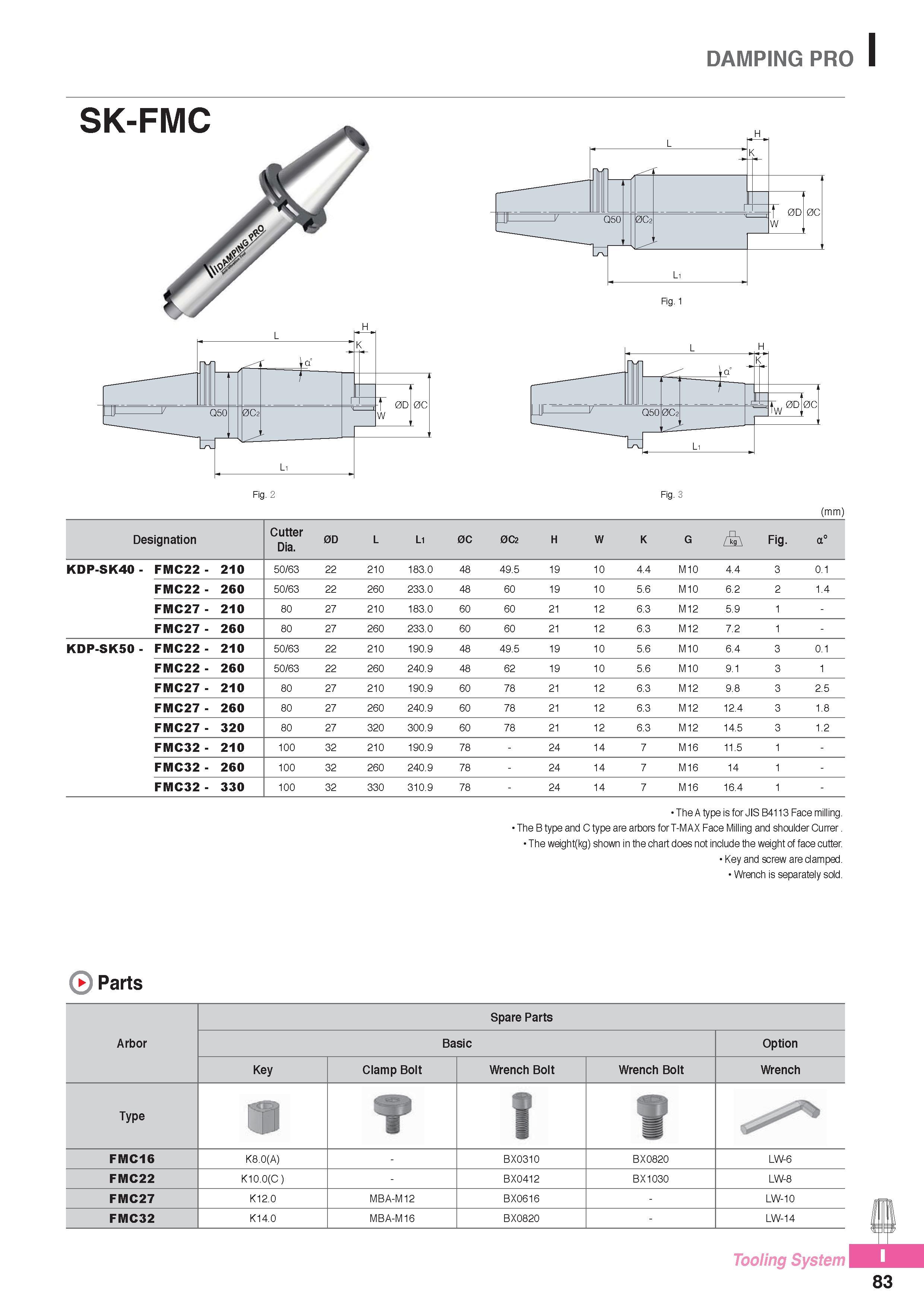

DAMPING PRO I Fig. 3 (mm) Designation Cutter Dia. 0D L Li 0C 0C2 H W K G A Fig. a° KDP-SK40 - FMC22 - 210 50/63 22 210 183.0 48 49.5 19 10 4.4 M10 4.4 3 0.1 FMC22- 260 50/63 22 260 233.0 48 60 19 10 5.6 M10 6.2 2 1.4 FMC27- 210 80 27 210 183.0 60 60 21 12 6.3 M12 5.9 - FMC27- 260 80 27 260 233.0 60 60 21 12 6.3 M12 7.2 - KDP-SK50 - FMC22 - 210 50/63 22 210 190.9 48 49.5 19 10 5.6 M10 6.4 3 0.1 FMC22- 260 50/63 22 260 240.9 48 62 19 10 5.6 M10 9.1 3 1 FMC27- 210 80 27 210 190.9 60 78 21 12 6.3 M12 9.8 3 2.5 FMC27- 260 80 27 260 240.9 60 78 21 12 6.3 M12 12.4 3 1.8 FMC27- 320 80 27 320 300.9 60 78 21 12 6.3 M12 14.5 3 1.2 FMC32- 210 100 32 210 190.9 78 24 14 7 M16 11.5 - FMC32- 260 100 32 260 240.9 78 24 14 7 M16 14 - FMC32- 330 100 32 330 310.9 78 24 14 7 M16 16.4 - The A type is forJIS B4113 Face milling. The B type and C type are arbors forT-MAX Face Milling and shoulder Currer. The weight(kg) shownin the chart does notinclude the weight of face cutter. Key and screw are damped. Wrenchis separately sold. Parts Spare Parts Arbor Basic Option Key Clamp Bolt Wrench Bolt Wrench Bolt Wrench Type m ¥ i I FMC16 K8.0(A) - BX0310 BX0820 LW-6 FMC22 K10.0(C) - BX0412 BX1030 LW-8 FMC27 K12.0 MBA-M12 BX0616 - LW-10 FMC32 K14.0 MBA-M16 BX0820 - LW-14 Tooling Syste l 83
