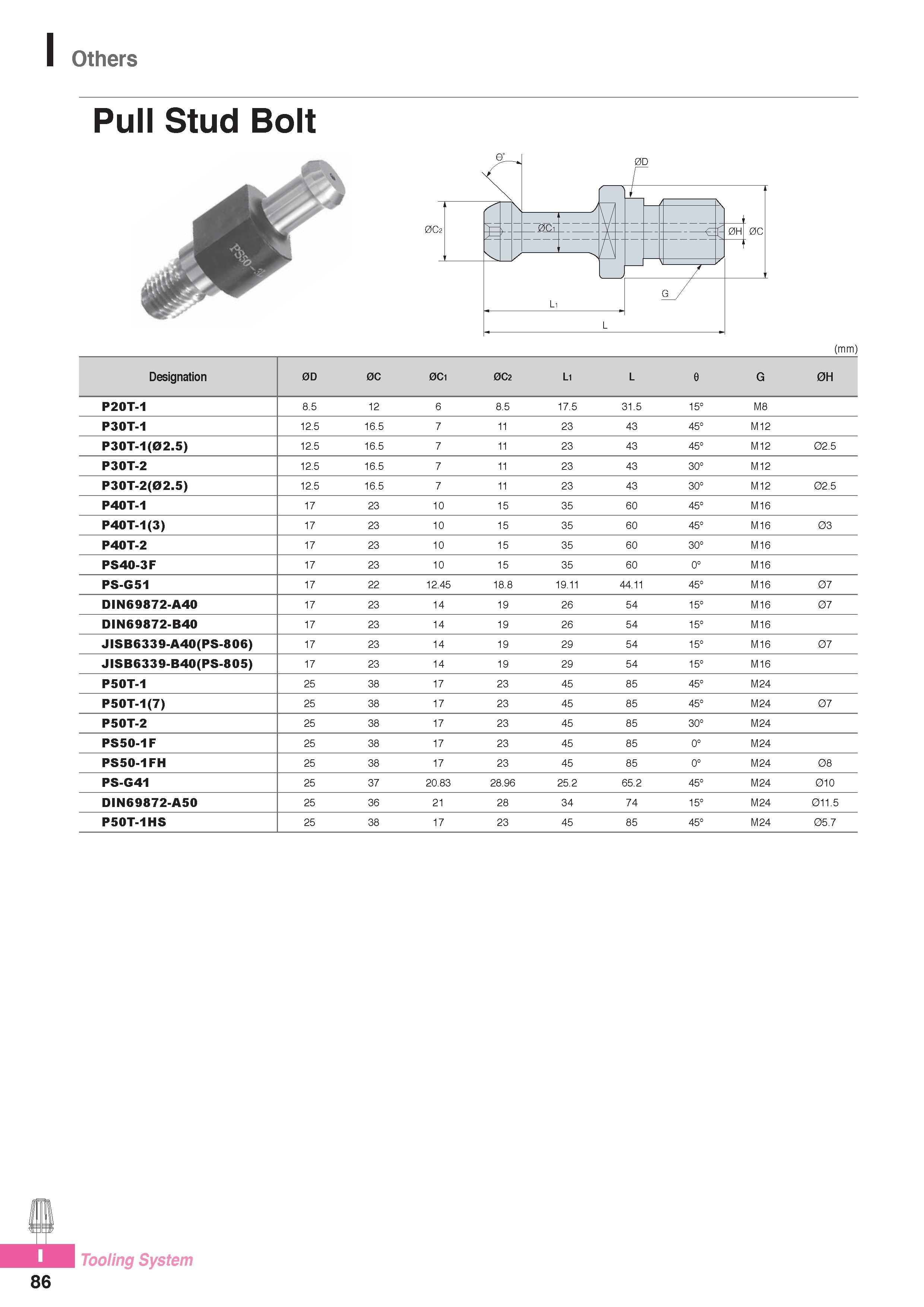

Others Pull Stud Bolt (mm) Designation 0D 0C 0Cl 0C2 Li L e G 0H P20T-1 8.5 12 6 8.5 17.5 31.5 15° M8 P30T-1 12.5 16.5 7 11 23 43 45° M12 P30T-1(02.5) 12.5 16.5 7 11 23 43 45° M12 02.5 P30T-2 12.5 16.5 7 11 23 43 30° M12 P30T-2(02.5) 12.5 16.5 7 11 23 43 30° M12 02.5 P40T-1 17 23 10 15 35 60 45° M16 P40T-1(3) 17 23 10 15 35 60 45° M16 03 P40T-2 17 23 10 15 35 60 30° M16 PS40-3F 17 23 10 15 35 60 0° M16 PS-G51 17 22 12.45 18.8 19.11 44.11 45° M16 07 DIN69872-A40 17 23 14 19 26 54 15° M16 07 DIN69872-B40 17 23 14 19 26 54 15° M16 JISB6339-A40(PS-806) 17 23 14 19 29 54 15° M16 07 JISB6339-B40(PS-805) 17 23 14 19 29 54 15° M16 P50T-1 25 38 17 23 45 85 45° M24 P50T-1(7) 25 38 17 23 45 85 45° M24 07 P50T-2 25 38 17 23 45 85 30° M24 PS50-1F 25 38 17 23 45 85 0° M24 PS50-1FH 25 38 17 23 45 85 0° M24 08 PS-G41 25 37 20.83 28.96 25.2 65.2 45° M24 010 DIN69872-A50 25 36 21 28 34 74 15° M24 011.5 P50T-1HS 25 38 17 23 45 85 45° M24 05.7 Tooling System 86
