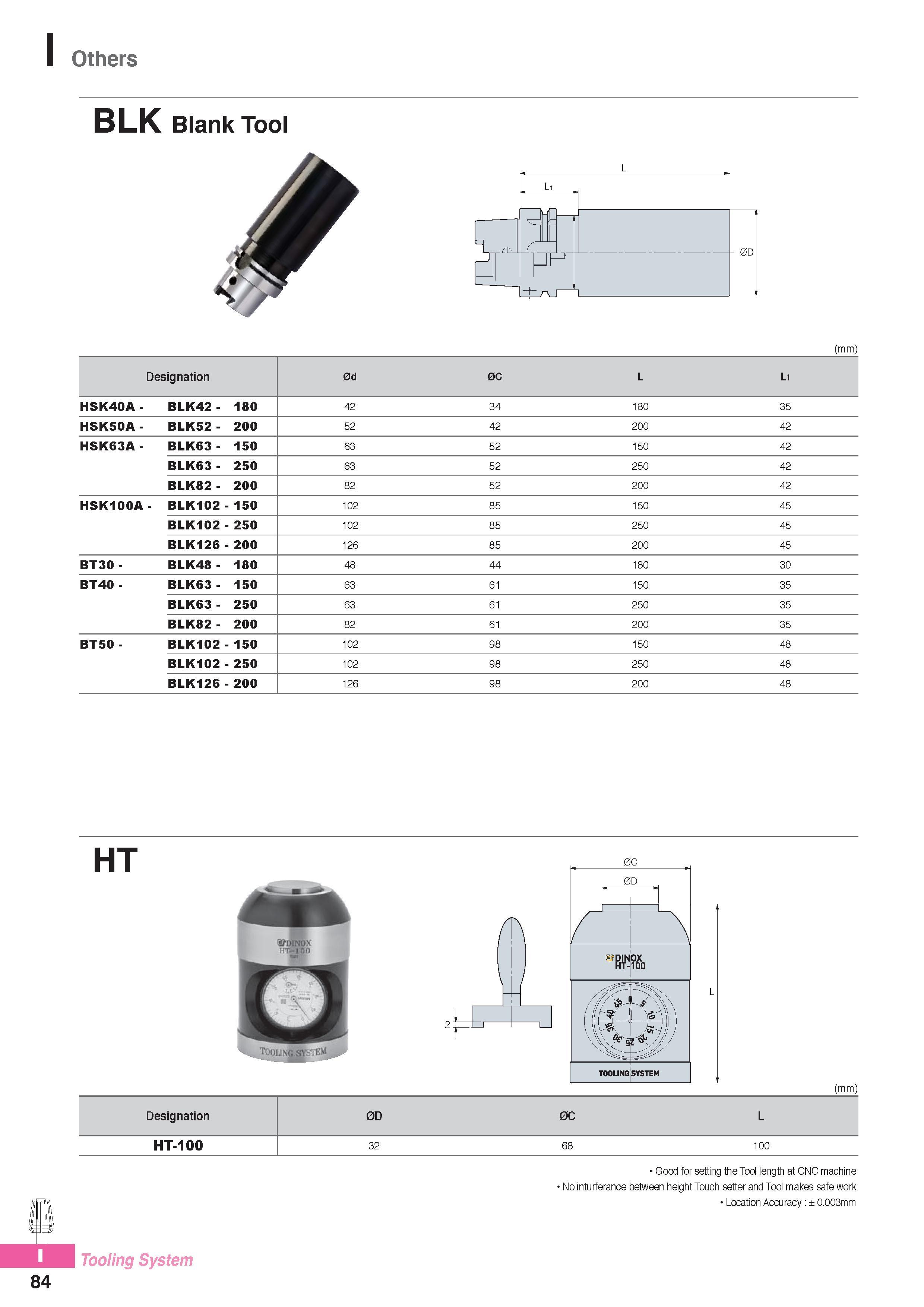

Others BLK Blank Tool (mm) Designation 0d 0C L L1 HSK40A - BLK42 - 180 42 34 180 35 HSK50A - BLK52- 200 52 42 200 42 HSK63A - BLK63- 150 63 52 150 42 BLK63- 250 63 52 250 42 BLK82- 200 82 52 200 42 HSK100A - BLK102 - 150 102 85 150 45 BLK102 - 250 102 85 250 45 BLK126 - 200 126 85 200 45 BT30 - BLK48- 180 48 44 180 30 BT40 - BLK63- 150 63 61 150 35 BLK63- 250 63 61 250 35 BLK82- 200 82 61 200 35 BT50 - BLK102 - 150 102 98 150 48 BLK102 - 250 102 98 250 48 BLK126 - 200 126 98 200 48 HT (mm) Designation 0D 0C L HT-100 32 68 100 Tooling System Good for setting the Toollength atCNCmachine Nointurferance between height Touch setter and Tool makes safe work Location Accuracy ± 0.003mm 84
