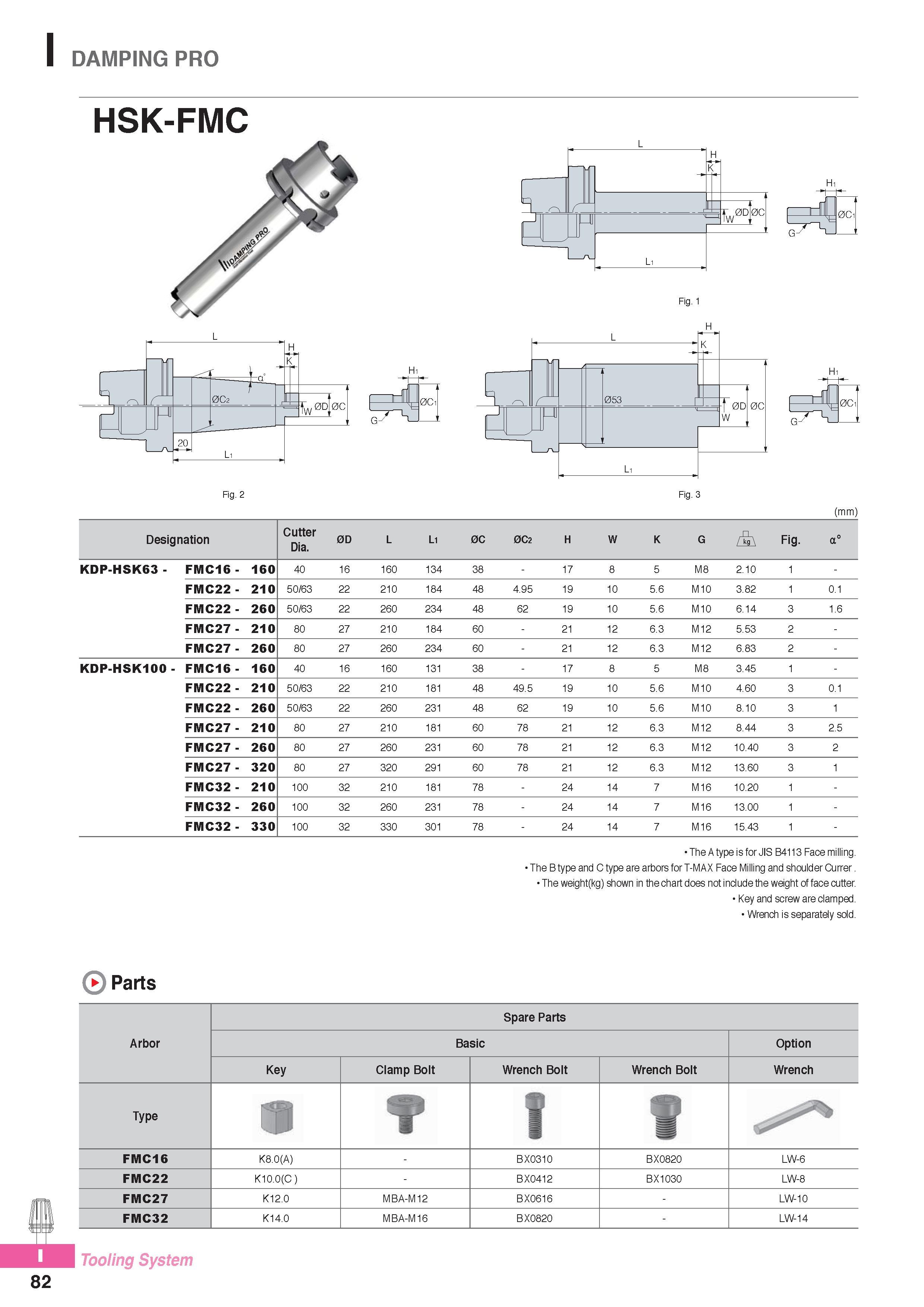

I DAMPING PRO HSK-FMC Fig. 1 0C2 J - 20 Li rti 0Ci Fig. 2 0C (mm) Designation Cutter Dia. 0D L Li 0C 0C2 H W K G Fig. a° KDP-HSK63 - FMC16 - 160 40 16 160 134 38 17 8 5 M8 2.10 1 - FMC22 - 210 50/63 22 210 184 48 4.95 19 10 5.6 M10 3.82 1 0.1 FMC22 - 260 50/63 22 260 234 48 62 19 10 5.6 M10 6.14 3 1.6 FMC27 - 210 80 27 210 184 60 21 12 6.3 M12 5.53 2 - FMC27 - 260 80 27 260 234 60 21 12 6.3 M12 6.83 2 - KDP-HSK100 - FMC16 - 160 40 16 160 131 38 17 8 5 M8 3.45 1 - FMC22 - 210 50/63 22 210 181 48 49.5 19 10 5.6 M10 4.60 3 0.1 FMC22 - 260 50/63 22 260 231 48 62 19 10 5.6 M10 8.10 3 1 FMC27 - 210 80 27 210 181 60 78 21 12 6.3 M12 8.44 3 2.5 FMC27 - 260 80 27 260 231 60 78 21 12 6.3 M12 10.40 3 2 FMC27 - 320 80 27 320 291 60 78 21 12 6.3 M12 13.60 3 1 FMC32 - 210 100 32 210 181 78 24 14 7 M16 10.20 1 - FMC32 - 260 100 32 260 231 78 24 14 7 M16 13.00 1 - FMC32 - 330 100 32 330 301 78 24 14 7 M16 15.43 1 - The AtypeisforJIS B4113 Face milling. TheBtypeand Ctypearearborsfor T-MAX Face Milling and shoulderCurrer. The weight(kg) shownin the chart does notindude the weight of face cutter. Key and screw are clamped. Wrenchis separately sold. H L H H- 0DI0C W Parts Arbor Spare Parts Basic Option Key Clamp Bolt Wrench Bolt Wrench Bolt Wrench Type T i t FMC16 K8.0(A) - BX0310 BX0820 LW-6 FMC22 K10.0(C) - BX0412 BX1030 LW-8 FMC27 K12.0 MBA-M12 BX0616 - LW-10 FMC32 K14.0 MBA-M16 BX0820 - LW-14 1 Tooling System 82
