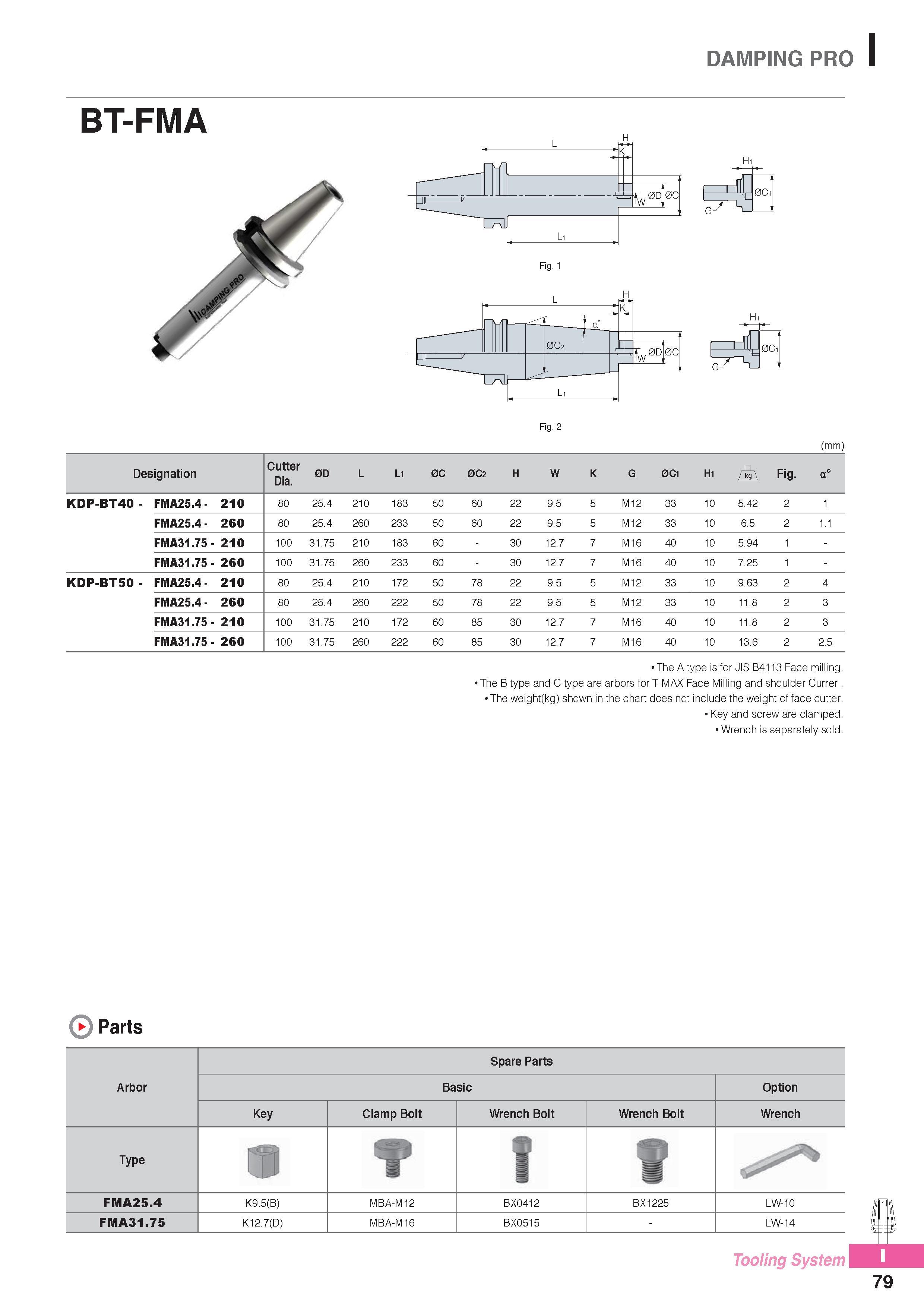

DAMPING PRO I BT-FMA Fig. 1 G G-f '"I 0C Fig. 2 (mm) Designation Cutter Dia. 0D L Li 0C 0C2 H W K G 0Ci Hi Fig. a° KDP-BT40 - FMA25.4 - 210 80 25.4 210 183 50 60 22 9.5 5 M12 33 10 5.42 2 1 FMA25.4 - 260 80 25.4 260 233 50 60 22 9.5 5 M12 33 10 6.5 2 1.1 FMA31.75 - 210 100 31.75 210 183 60 30 12.7 7 M16 40 10 5.94 1 - FMA31.75 - 260 100 31.75 260 233 60 30 12.7 7 M16 40 10 7.25 1 - KDP-BT50 - FMA25.4 - 210 80 25.4 210 172 50 78 22 9.5 5 M12 33 10 9.63 2 4 FMA25.4 - 260 80 25.4 260 222 50 78 22 9.5 5 M12 33 10 11.8 2 3 FMA31.75 - 210 100 31.75 210 172 60 85 30 12.7 7 M16 40 10 11.8 2 3 FMA31.75 - 260 100 31.75 260 222 60 85 30 12.7 7 M16 40 10 13.6 2 2.5 The A type is for JIS B4113 Face milling. The B type and C type are arbors for T-MAX Face Milling and shoulder Currer The weight(kg) shown in the chart does not include the weight of face cutter. Key and screw are clamped. Wrench is separately sold. H- H- 0C Parts Spare Parts Arbor Basic Option Key Clamp Bolt Wrench Bolt Wrench Bolt Wrench Type m ¥ i t FMA25.4 K9.5(B) MBA-M12 BX0412 BX1225 LW-10 FMA31.75 K12.7(D) MBA-M16 BX0515 - LW-14 Tooling Syste l 79
