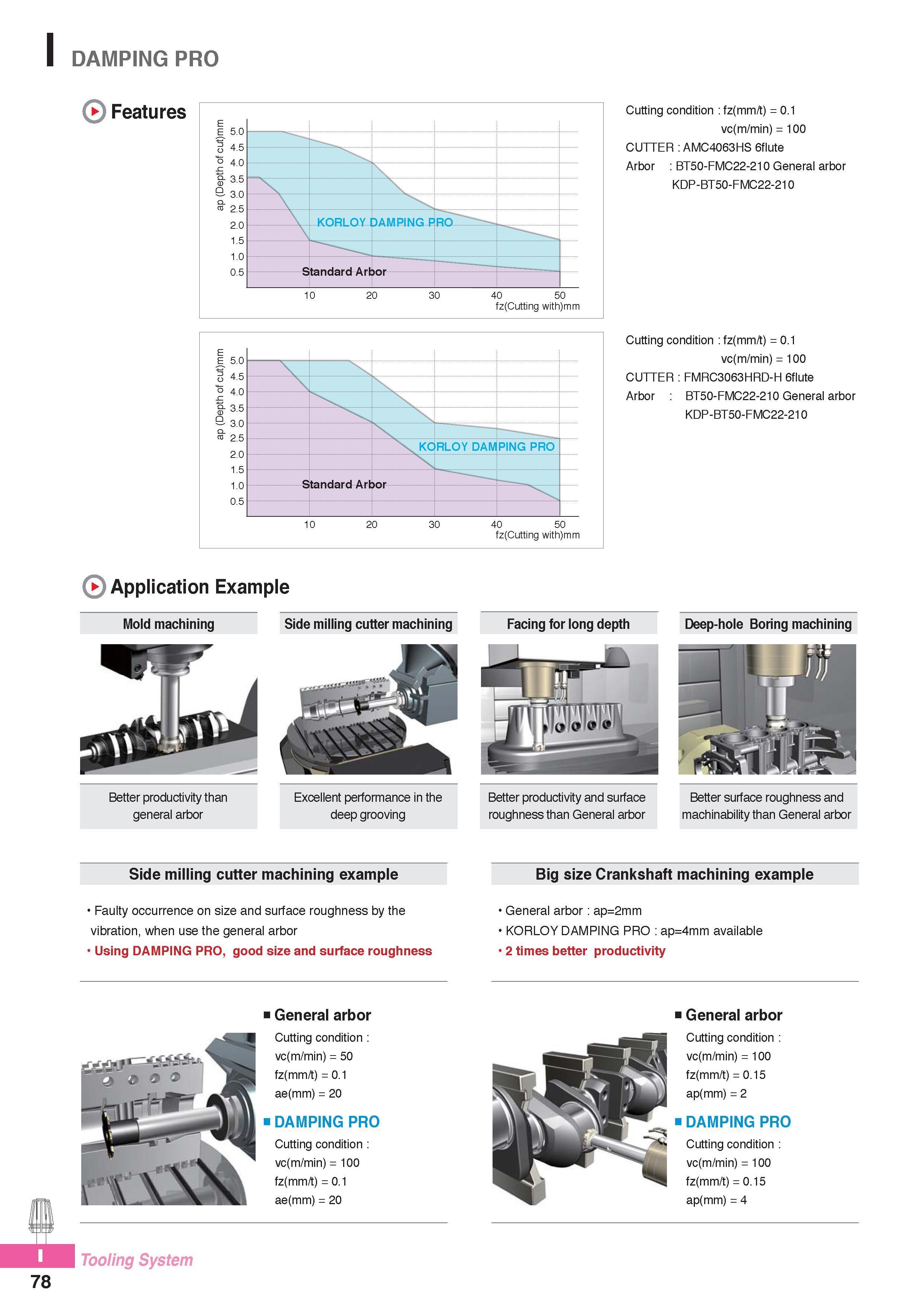

I DAMPING PRO Cutting condition fz(mm/t) = 0.1 vc(m/min) = 100 CUTTER AMC4063HS 6flute Arbor BT50-FMC22-210 General arbor KDP-BT50-FMC22-210 Cutting condition fz(mm/t) = 0.1 vc(m/min) = 100 CUTTER FMRC3063HRD-H 6flute Arbor BT50-FMC22-210 General arbor KDP-BT50-FMC22-210 Application Example Mold machining Side milling cutter machining Better productivity than general arbor Excellent performance in the deep grooving Side milling cutter machining example Faulty occurrence on size and surface roughness by the vibration, when use the general arbor Using DAMPING PRO, good size and surface roughness Facing for long depth Deep-hole Boring machining r mnfriwaBi Better productivity and surface roughness than General arbor Better surface roughness and machinability than General arbor Big size Crankshaft machining example General arbor: ap=2mm KORLOY DAMPING PRO ap=4mm available 2 times better productivity Tooling System i General arbor Cutting condition vc(m/min) = 50 fz(mm/t) = 0.1 ae(mm) = 20 i DAMPING PRO Cutting condition vc(m/min) = 100 fz(mm/t) = 0.1 ae(mm) = 20 78 General arbor Cutting condition vc(m/min) = 100 fz(mm/t) = 0.15 ap(mm) = 2 i DAMPING PRO Cutting condition vc(m/min) = 100 fz(mm/t) = 0.15 ap(mm) = 4
