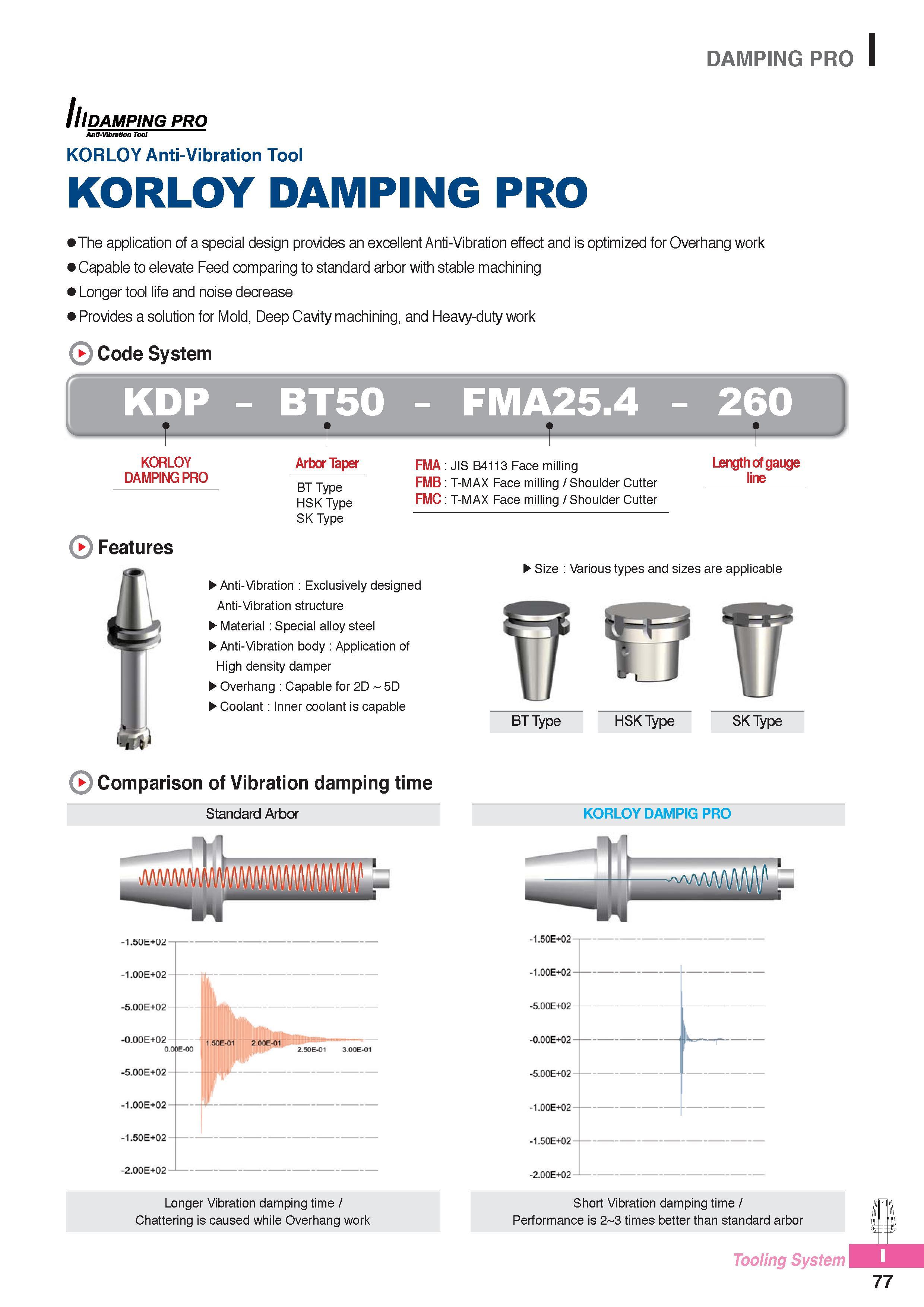

DAMPING PRO I /DAMPING PRO Antl-Vlbration Tool KORLOY Anti-Vibration Tool KORLOY DAMPING PRO The application of a special design provides an excellent Anti-Vibration effect and is optimized for Overhang work Capable to elevate Feed comparing to standard arbor with stable machining Longer tool life and noise decrease Provides a solution for Mold, Deep Cavity machining, and Heavy-duty work Code System KDP - BT50 - FMA25.4 - 260 KORLOY DAMPING PRO Arbor Taper BT Type HSK Type SK Type FMA JIS B4113 Face milling FMB T-MAX Face milling / Shoulder Cutter FMC T-MAX Face milling / Shoulder Cutter Length of gauge line Features Anti-Vibration Exclusively designed Anti-Vibration structure Material Special alloy steel Anti-Vibration body Application of High density damper Overhang Capable for 2D 5D Coolant Inner coolant is capable Comparison of Vibration damping time Standard Arbor Size Various types and sizes are applicable BT Type HSK Type SK Type KORLOY DAMPIG PRO -1.50E+02 -1.00E+02 -1.50E+02 -2.00E+02 Longer Vibration damping time / Chattering is caused while Overhang work Short Vibration damping time / Performance is 2 3 times better than standard arbor 1 Tooling System 77
