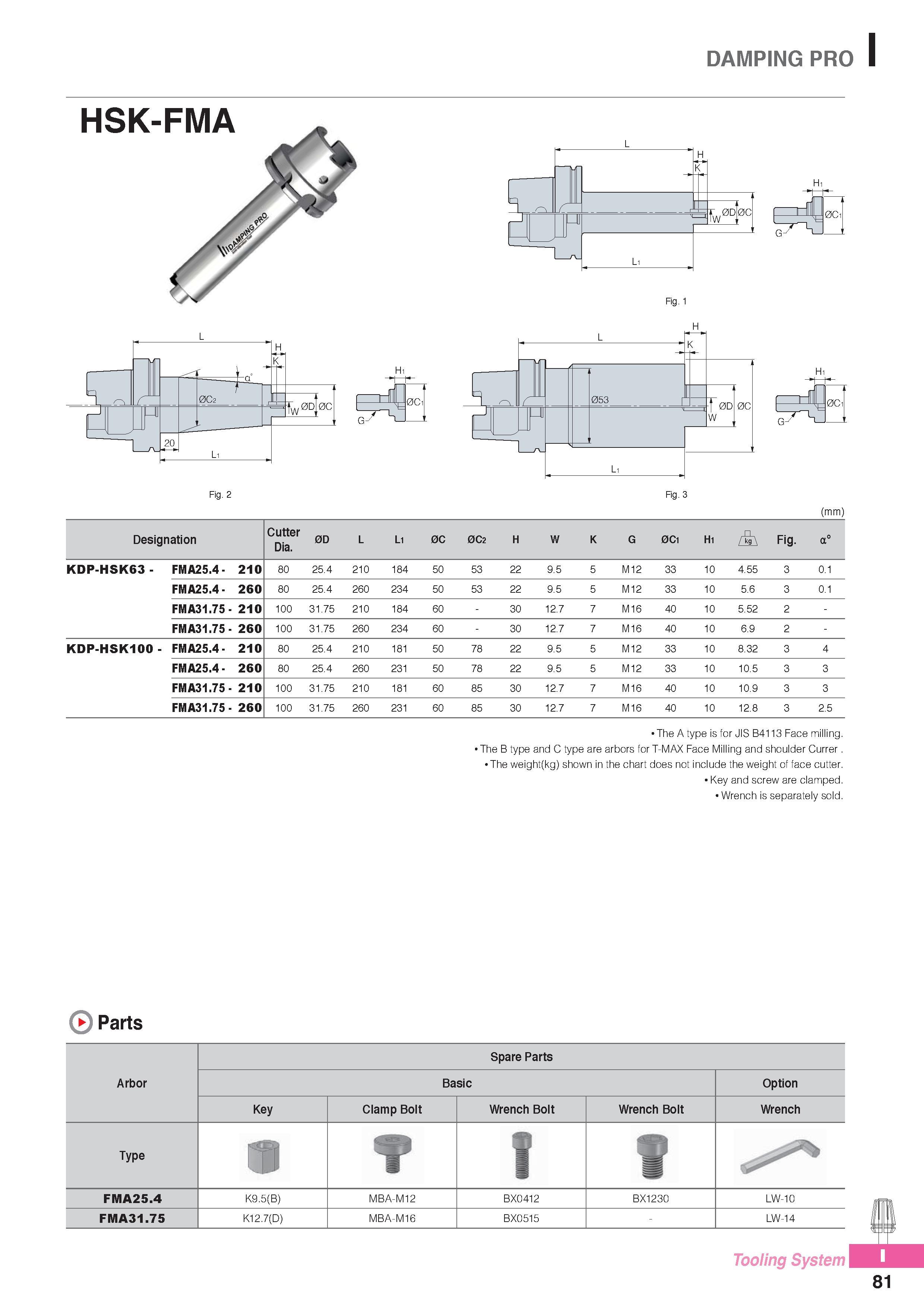

DAMPING PRO I HSK-FMA 0C1 Fig. 1 0C2 1 20 L1 Fig. 2 (=1=110 ec (mm) Designation Cutter Dia. 0D L L1 0C 0C2 H W K G 0C1 H1 Fig. a° KDP-HSK63 - FMA25.4 - 210 80 25.4 210 184 50 53 22 9.5 5 M12 33 10 4.55 3 0.1 FMA25.4 - 260 80 25.4 260 234 50 53 22 9.5 5 M12 33 10 5.6 3 0.1 FMA31.75 - 210 100 31.75 210 184 60 - 30 12.7 7 M16 40 10 5.52 2 - FMA31.75 - 260 100 31.75 260 234 60 - 30 12.7 7 M16 40 10 6.9 2 - KDP-HSK100 - FMA25.4 - 210 80 25.4 210 181 50 78 22 9.5 5 M12 33 10 8.32 3 4 FMA25.4 - 260 80 25.4 260 231 50 78 22 9.5 5 M12 33 10 10.5 3 3 FMA31.75 - 210 100 31.75 210 181 60 85 30 12.7 7 M16 40 10 10.9 3 3 FMA31.75 - 260 100 31.75 260 231 60 85 30 12.7 7 M16 40 10 12.8 3 2.5 The A type is for JIS B4113 Face milling. The B type and C type are arbors for T-MAX Face Milling and shoulder Currer The weight(kg) shown in the chart does not include the weight of face cutter. Key and screw are clamped. Wrench is separately sold. H L H H- Parts Spare Parts Arbor Basic Option Key Clamp Bolt Wrench Bolt Wrench Bolt Wrench Type m T I t FMA25.4 K9.5(B) MBA-M12 BX0412 BX1230 LW-10 FMA31.75 K12.7(D) MBA-M16 BX0515 - LW-14 Tooling Syste l 81
