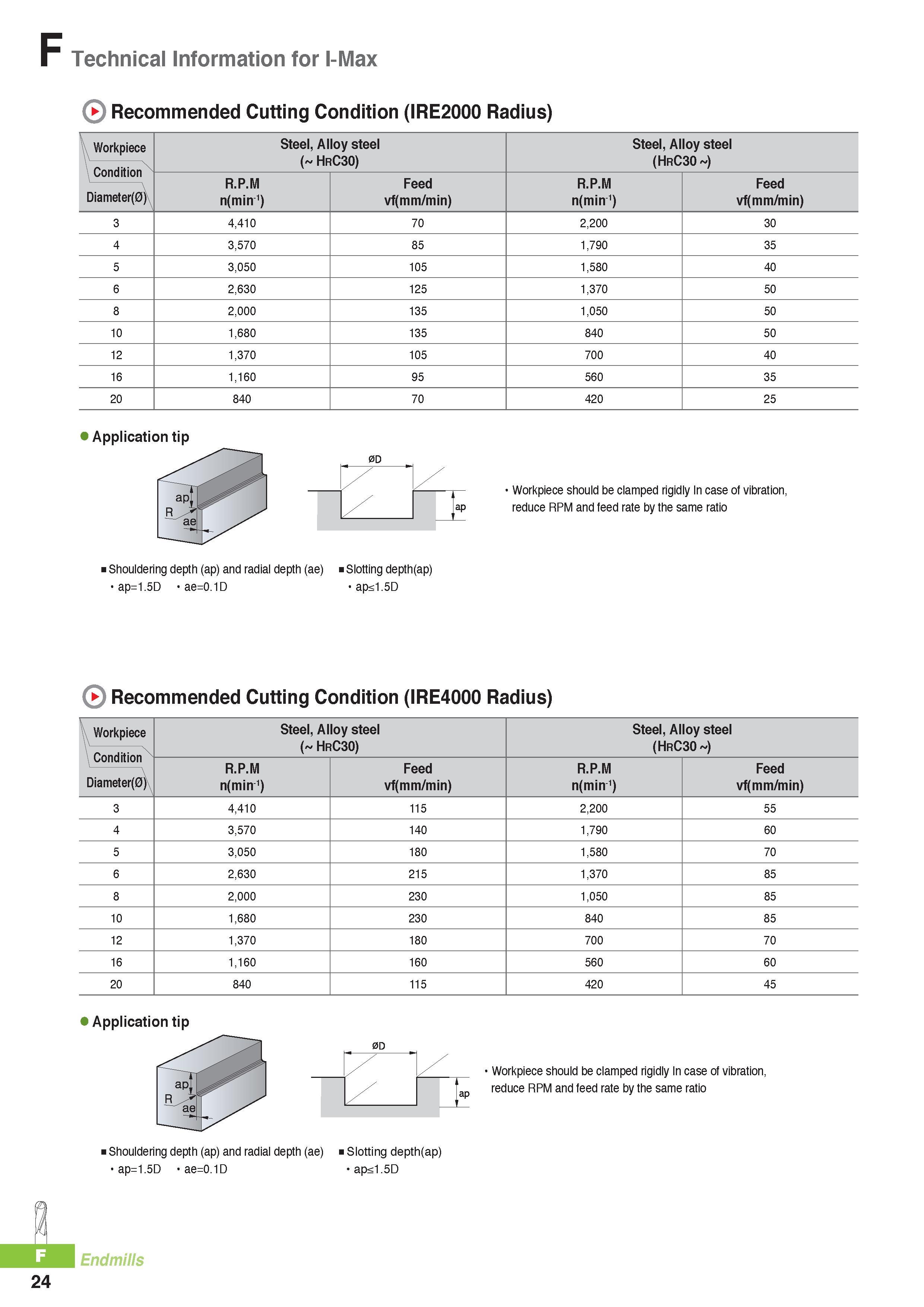

F Technical Information for I-Max Recommended Cutting Condition (IRE2000 Radius) Workpiece Condition Diameter(0) Steel, Alloy steel ( HrC30) Steel, Alloy steel (HrC30 ) R.P.M n(min-1) Feed vf(mm/min) R.P.M n(min-1) Feed vf(mm/min) 3 4,410 70 2,2OO 30 4 3,570 85 1,790 35 5 3,O5O 1O5 1,580 40 6 2,630 125 1,370 50 8 2,OOO 135 1,O5O 50 10 1,680 135 840 50 12 1,370 1O5 7OO 40 16 1,160 95 56O 35 20 840 70 420 25 Application tip 0D Workpiece should be clamped rigidly In case of vibration, ap reduce RPM and feed rate by the same ratio Shouldering depth (ap) and radial depth (ae) Slotting depth(ap) ap=1.5D ae=0.1D -apsI.SD Recommended Cutting Condition (IRE4000 Radius) Workpiece Condition Diameter(0) Steel, Alloy steel ( HrC30) Steel, Alloy steel (HrC30 ) R.P.M n(min-1) Feed vf(mm/min) R.P.M n(min-1) Feed vf(mm/min) 3 4,410 115 2,2OO 55 4 3,570 140 1,790 60 5 3,O5O 18O 1,580 70 6 2,630 215 1,370 85 8 2,OOO 23O 1,O5O 85 10 1,680 23O 840 85 12 1,370 18O 7OO 70 16 1,160 16O 56O 60 20 840 115 420 45 Application tip 0D Jap Workpiece should be clamped rigidly In case of vibration, reduce RPM and feed rate by the same ratio Shouldering depth (ap) and radial depth (ae) Slotting depth(ap) ap=1.5D ae=0.1D ap<1.5D Endmills 24
