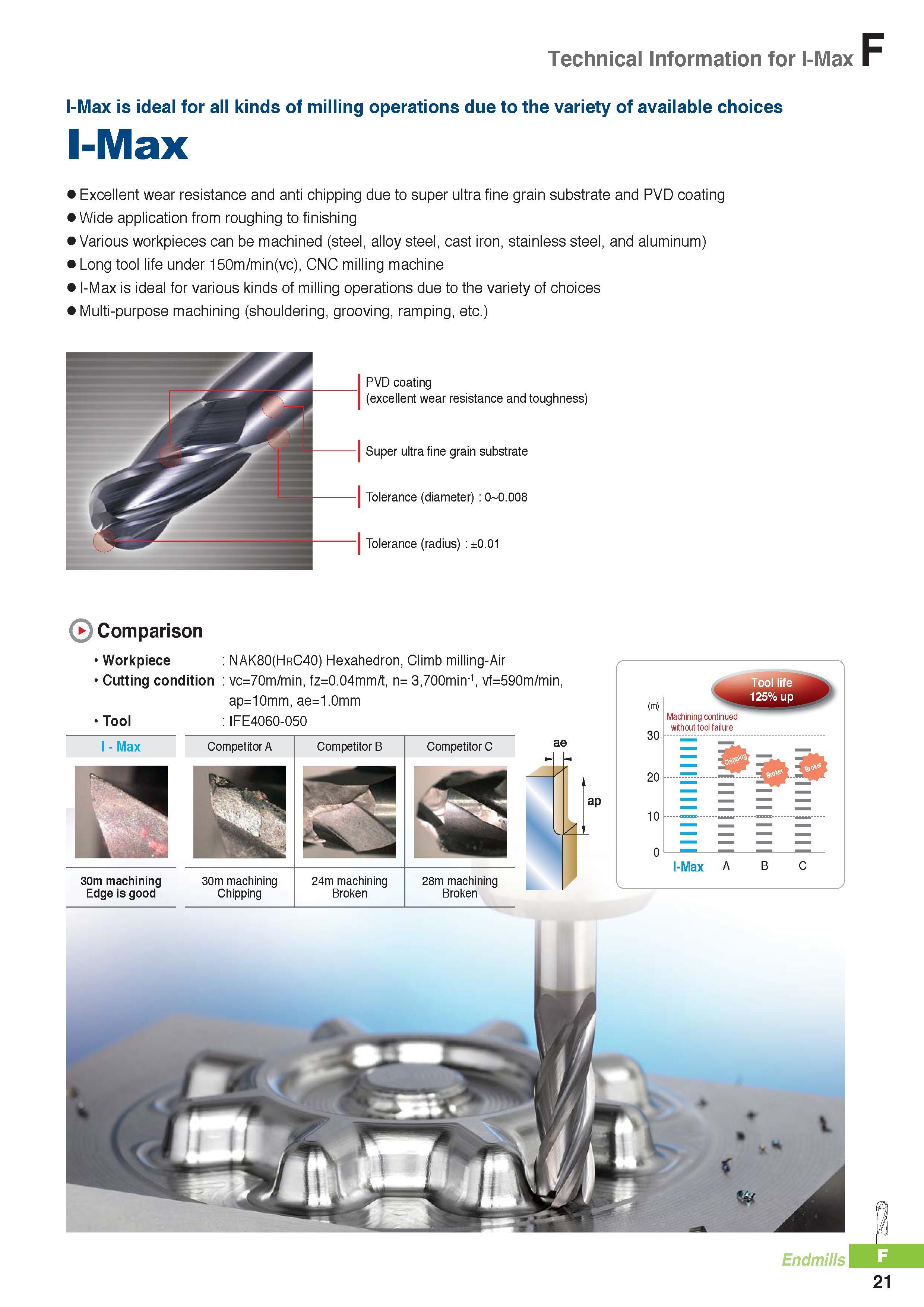

Technical Information for I-Max I-Max is ideal for all kinds of milling operations due to the variety of available choices I-Max Excellent wear resistance and anti chipping due to super ultra fine grain substrate and PVD coating Wide application from roughing to finishing Various workpieces can be machined (steel, alloy steel, cast iron, stainless steel, and aluminum) Long tool life under 150m/min(vc), CNC milling machine I-Max is ideal for various kinds of milling operations due to the variety of choices Multi-purpose machining (shouldering, grooving, ramping, etc.) PVD coating (excellent wear resistance and toughness) Super ultra fine grain substrate Tolerance (diameter) 0 0.008 Tolerance (radius) ±0.01 Comparison Workpiece NAK80(HrC40) Hexahedron, Climb milling-Air Cutting condition vc=70m/min, fz=0.04mm/t, n= 3,700min-1, vf=590m/min, ap=10mm, ae=1.0mm Tool IFE4060-050 I - Max 30m machining Edge is good Competitor A 30m machining Chipping Competitor B 24m machining Broken Competitor C 28m machining Broken ae ap Endmills J. 21
