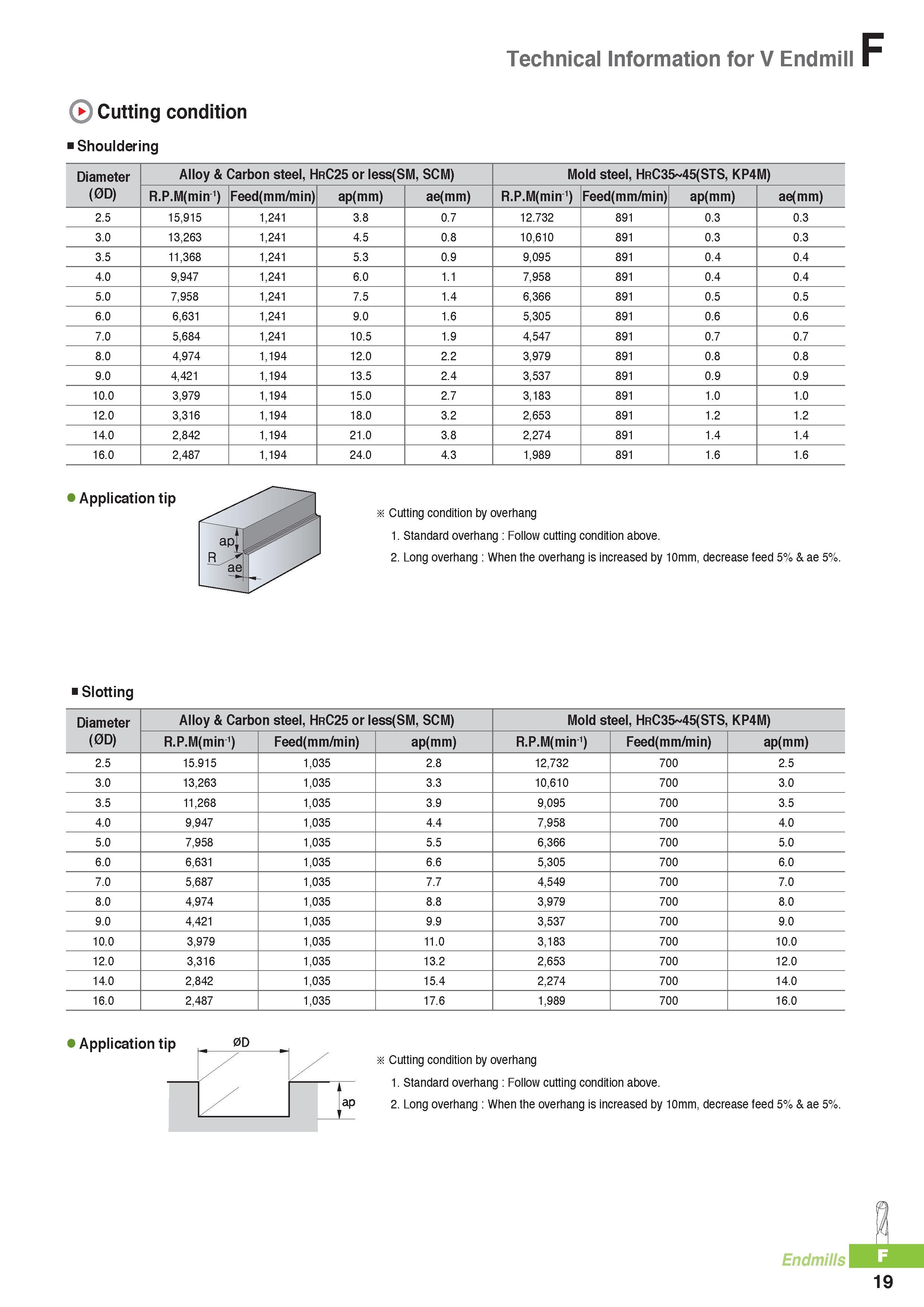

Technical Information for V Endmill Cutting condition Shouldering Diameter (0D) Alloy & Carbon steel, HrC25 or less(SM, SCM) Mold steel, HrC35 45(STS, KP4M) R.P.M(min-1) Feed(mm/min) ap(mm) ae(mm) R.P.M(min-1) Feed(mm/min) ap(mm) ae(mm) 2.5 15,915 1,241 3.8 0.7 12.732 891 0.3 0.3 3.0 13,263 1,241 4.5 0.8 10,610 891 0.3 0.3 3.5 11,368 1,241 5.3 0.9 9,095 891 0.4 0.4 4.0 9,947 1,241 6.0 1.1 7,958 891 0.4 0.4 5.0 7,958 1,241 7.5 1.4 6,366 891 0.5 0.5 6.0 6,631 1,241 9.0 1.6 5,305 891 0.6 0.6 7.0 5,684 1,241 10.5 1.9 4,547 891 0.7 0.7 8.0 4,974 1,194 12.0 2.2 3,979 891 0.8 0.8 9.0 4,421 1,194 13.5 2.4 3,537 891 0.9 0.9 10.0 3,979 1,194 15.0 2.7 3,183 891 1.0 1.0 12.0 3,316 1,194 18.0 3.2 2,653 891 1.2 1.2 14.0 2,842 1,194 21.0 3.8 2,274 891 1.4 1.4 16.0 2,487 1,194 24.0 4.3 1,989 891 1.6 1.6 Cutting condition by overhang 1. Standard overhang Follow cutting condition above. 2. Long overhang When the overhang is increased by 10mm, decrease teed 5% & ae 5%. Application tip Slotting Diameter (0D) Alloy & Carbon steel, HrC25 or less(SM, SCM) Mold steel, HrC35 45(STS, KP4M) R.P.M(min-1) Feed(mm/min) ap(mm) R.P.M(min-1) Feed(mm/min) ap(mm) 2.5 15.915 1,035 2.8 12,732 700 2.5 3.0 13,263 1,035 3.3 10,610 700 3.0 3.5 11,268 1,035 3.9 9,095 700 3.5 4.0 9,947 1,035 4.4 7,958 700 4.0 5.0 7,958 1,035 5.5 6,366 700 5.0 6.0 6,631 1,035 6.6 5,305 700 6.0 7.0 5,687 1,035 7.7 4,549 700 7.0 8.0 4,974 1,035 8.8 3,979 700 8.0 9.0 4,421 1,035 9.9 3,537 700 9.0 10.0 3,979 1,035 11.0 3,183 700 10.0 12.0 3,316 1,035 13.2 2,653 700 12.0 14.0 2,842 1,035 15.4 2,274 700 14.0 16.0 2,487 1,035 17.6 1,989 700 16.0 Application tip 0D r / jap Cutting condition by overhang 1. Standard overhang Follow cutting condition above. 2. Long overhang When the overhang is increased by 10mm, decrease teed 5% & ae 5%. Endmill 19
