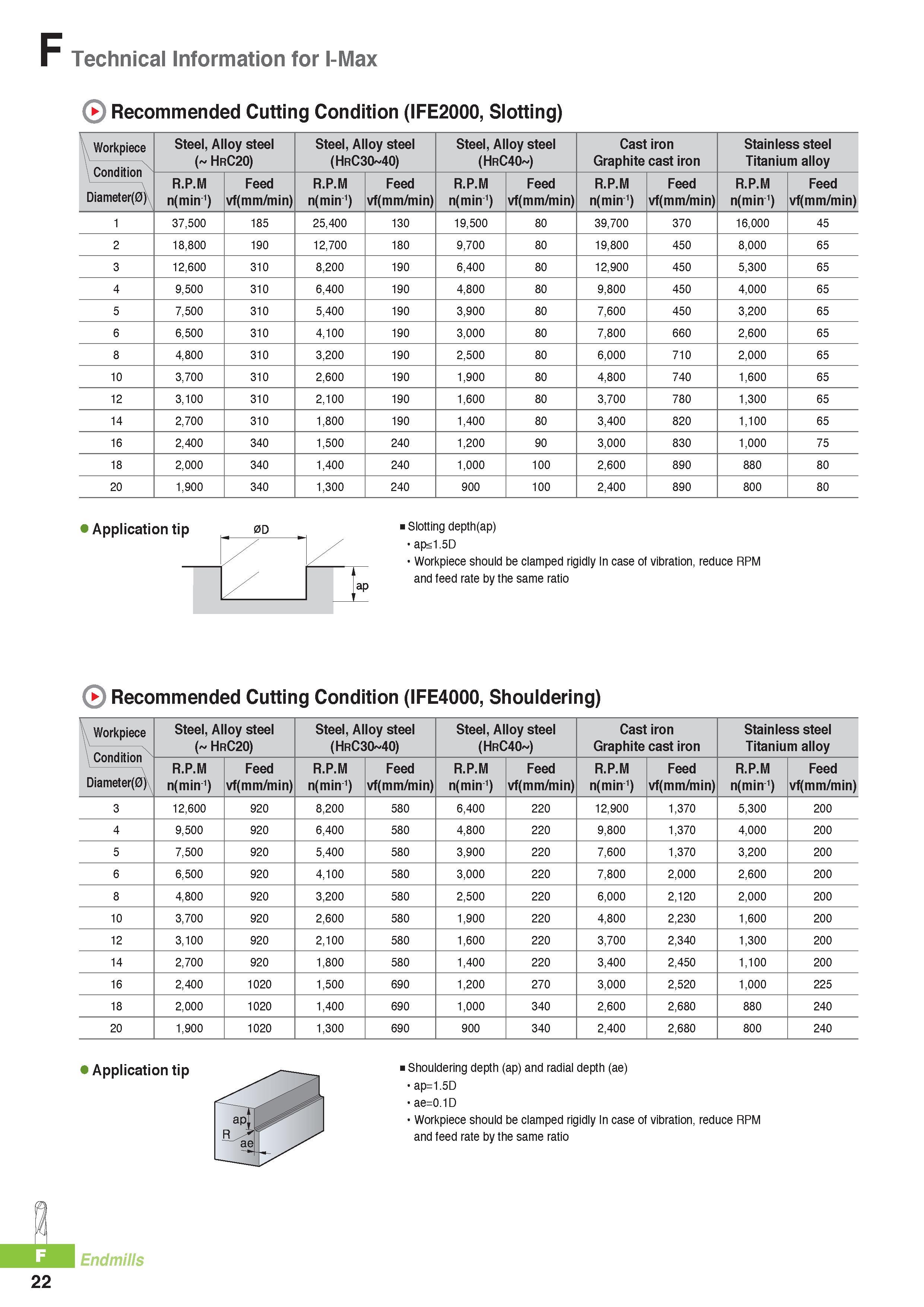

F Technical Information for I-Max Recommended Cutting Condition (IFE2000, Slotting) Workpiece Condition Diameter(0) Steel, Alloy steel ( HrC20) Steel, Alloy steel (HrC30 40) Steel, Alloy steel (HrC40 ) Cast iron Graphite cast iron Stainless steel Titanium alloy R.P.M n(min-1) Feed vf(mm/min) R.P.M n(min-1) Feed vf(mm/min) R.P.M n(min-1) Feed vf(mm/min) R.P.M n(min-1) Feed vf(mm/min) R.P.M n(min-1) Feed vf(mm/min) 1 37,500 185 25,400 130 19,500 80 39,700 370 16,000 45 2 18,800 190 12,700 180 9,700 80 19,800 450 8,000 65 3 12,600 310 8,200 190 6,400 80 12,900 450 5,300 65 4 9,500 310 6,400 190 4,800 80 9,800 450 4,000 65 5 7,500 310 5,400 190 3,900 80 7,600 450 3,200 65 6 6,500 310 4,100 190 3,000 80 7,800 660 2,600 65 8 4,800 310 3,200 190 2,500 80 6,000 710 2,000 65 10 3,700 310 2,600 190 1,900 80 4,800 740 1,600 65 12 3,100 310 2,100 190 1,600 80 3,700 780 1,300 65 14 2,700 310 1,800 190 1,400 80 3,400 820 1,100 65 16 2,400 340 1,500 240 1,200 90 3,000 830 1,000 75 18 2,000 340 1,400 240 1,000 100 2,600 890 880 80 20 1,900 340 1,300 240 900 100 2,400 890 800 80 Application tip Slotting depth(ap) ap<1.5D Workpiece should be clamped rigidly In case of vibration, reduce RPM and feed rate by the same ratio Recommended Cutting Condition (IFE4000, Shouldering) Workpiece Condition Diameter(0) Steel, Alloy steel ( HrC20) Steel, Alloy steel (HrC30 40) Steel, Alloy steel (HrC40 ) Cast iron Graphite cast iron Stainless steel Titanium alloy R.P.M n(min-1) Feed vf(mm/min) R.P.M n(min-1) Feed vf(mm/min) R.P.M n(min-1) Feed vf(mm/min) R.P.M n(min-1) Feed vf(mm/min) R.P.M n(min-1) Feed vf(mm/min) 3 12,600 920 8,200 580 6,400 220 12,900 1,370 5,300 200 4 9,500 920 6,400 580 4,800 220 9,800 1,370 4,000 200 5 7,500 920 5,400 580 3,900 220 7,600 1,370 3,200 200 6 6,500 920 4,100 580 3,000 220 7,800 2,000 2,600 200 8 4,800 920 3,200 580 2,500 220 6,000 2,120 2,000 200 10 3,700 920 2,600 580 1,900 220 4,800 2,230 1,600 200 12 3,100 920 2,100 580 1,600 220 3,700 2,340 1,300 200 14 2,700 920 1,800 580 1,400 220 3,400 2,450 1,100 200 16 2,400 1020 1,500 690 1,200 270 3,000 2,520 1,000 225 18 2,000 1020 1,400 690 1,000 340 2,600 2,680 880 240 20 1,900 1020 1,300 690 900 340 2,400 2,680 800 240 Application tip Shouldering depth (ap) and radial depth (ae) ap=1.5D ae=0.1D Workpiece should be clamped rigidly In case of vibration, reduce RPM and feed rate by the same ratio Endmills 22
