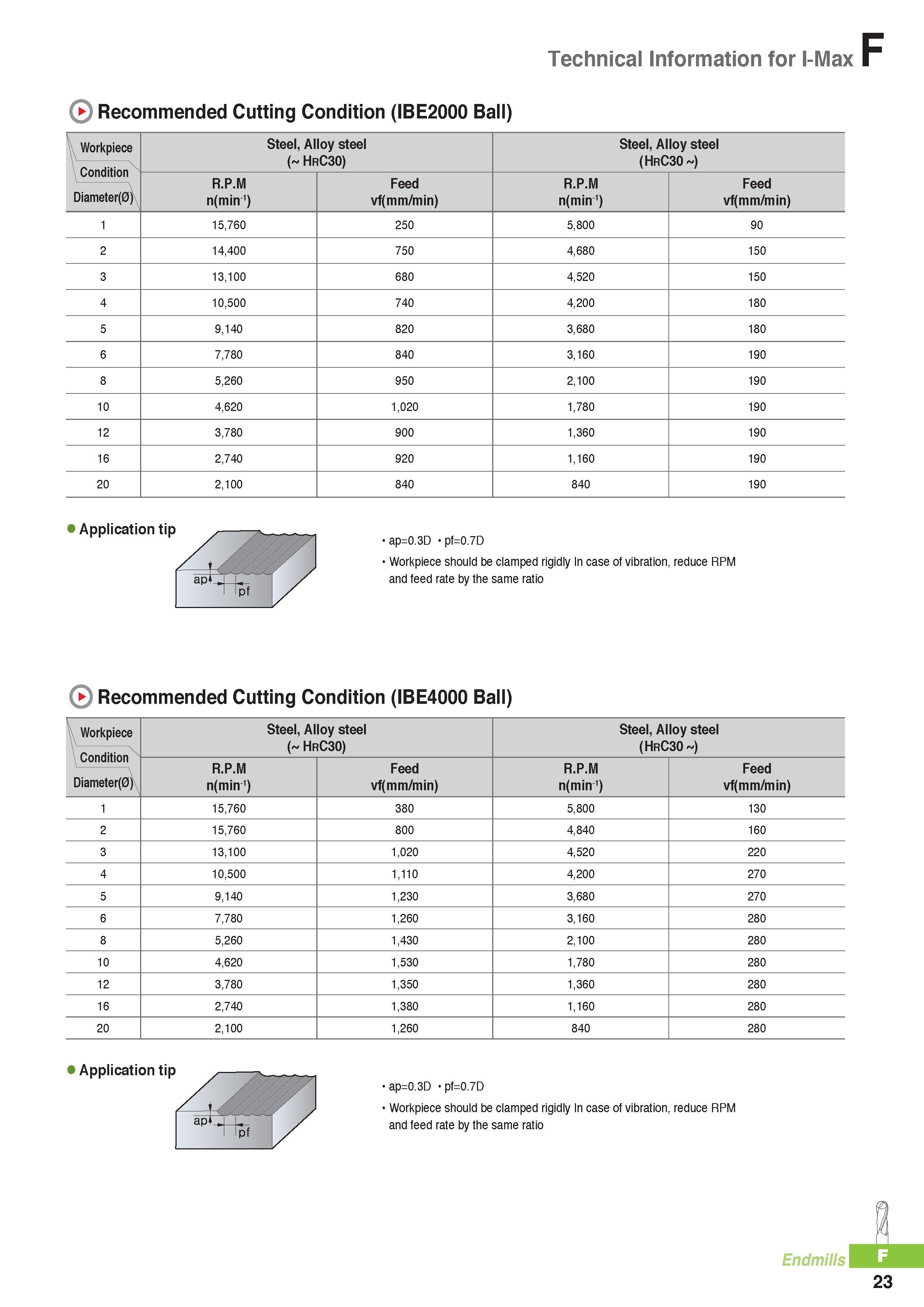

Technical Information for I-Max Recommended Cutting Condition (IBE2000 Ball) Workpiece Condition Diameter(0) Steel, Alloy steel ( HrC30) Steel, Alloy steel (HrC30 ) R.P.M n(min'1) Feed vf(mm/min) R.P.M n(min'1) Feed vf(mm/min) 1 15,760 250 5,800 90 2 14,400 750 4,680 150 3 13,100 680 4,520 150 4 10,500 740 4,200 180 5 9,140 820 3,680 180 6 7,780 840 3,160 190 8 5,260 950 2,100 190 10 4,620 1,020 1,780 190 12 3,780 900 1,360 190 16 2,740 920 1,160 190 20 2,100 840 840 190 Application tip -I mm ap -Hs ap=0.3D pf=0.7D Workpiece should be clamped rigidly In case of vibration, reduce RPM and feed rate by the same ratio Recommended Cutting Condition (IBE4000 Ball) Workpiece Condition Diameter(0) Steel, Alloy steel ( HrC30) Steel, Alloy steel (HrC30 ) R.P.M n(min-1) Feed vf(mm/min) R.P.M n(min-1) Feed vf(mm/min) 1 15,760 380 5,800 130 2 15,760 800 4,840 160 3 13,100 1,020 4,520 220 4 10,500 1,110 4,200 270 5 9,140 1,230 3,680 270 6 7,780 1,260 3,160 280 8 5,260 1,430 2,100 280 10 4,620 1,530 1,780 280 12 3,780 1,350 1,360 280 16 2,740 1,380 1,160 280 20 2,100 1,260 840 280 Application tip ap=0.3D pf=0.7D Workpiece should be clamped rigidly In case of vibration, reduce RPM and feed rate by the same ratio Endmill 23
