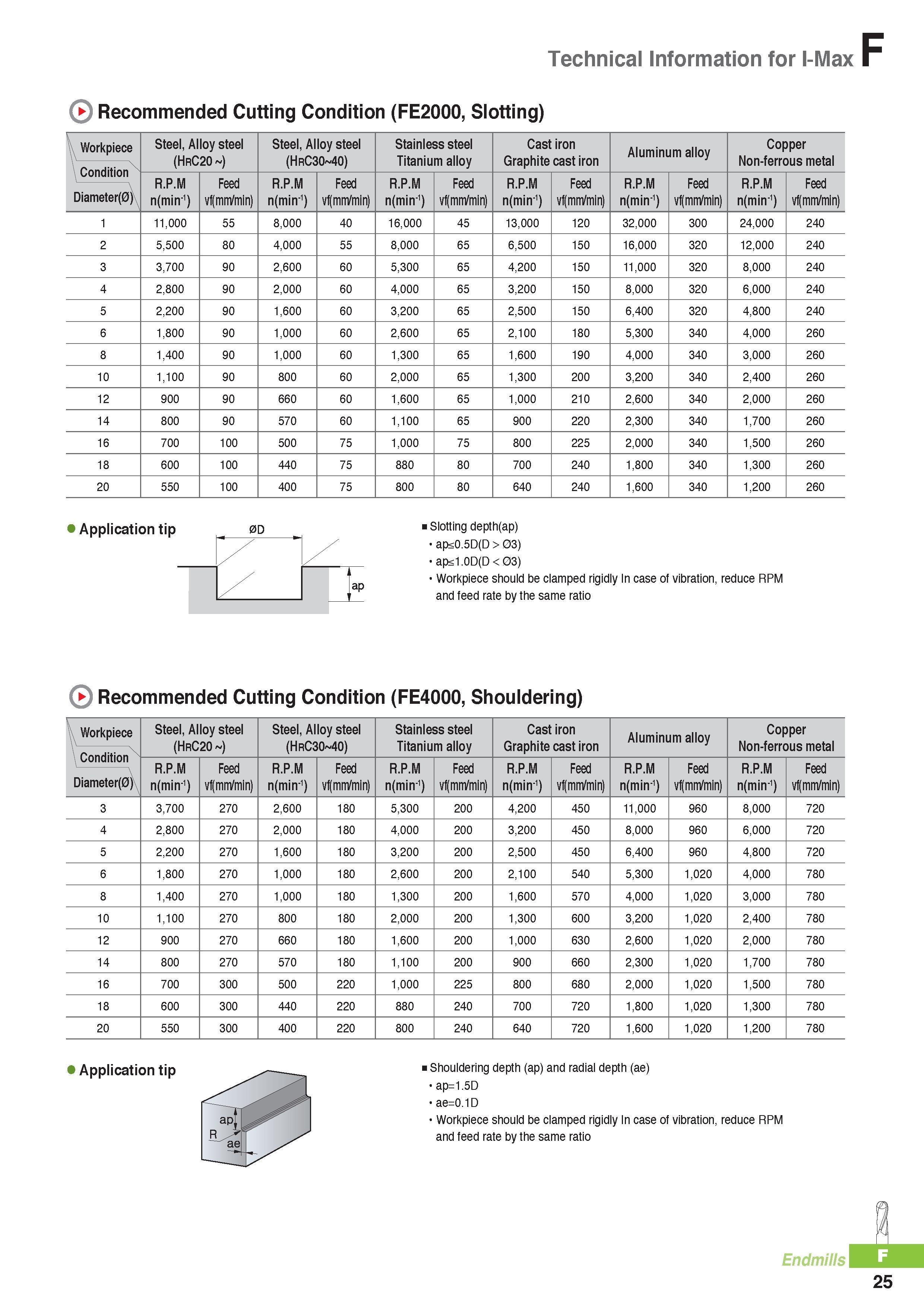

Technical Information for I-Max Recommended Cutting Condition (FE2000, Slotting) Workpiece Condition Diameter(0) Steel, Alloy steel (HrC20 ) Steel, Alloy steel (HrC30 40) Stainless steel Titanium alloy Cast iron Graphite cast iron Aluminum alloy Copper Non-ferrous metal R.P.M n(min-1) Feed vf(mm/min) R.P.M n(min-1) Feed vf(mm/min) R.P.M n(min-1) Feed vf(mm/min) R.P.M n(min-1) Feed vf(mm/min) R.P.M n(min-1) Feed vf(mm/min) R.P.M n(min-1) Feed vf(mm/min) 1 11,000 55 8,000 40 16,000 45 13,000 120 32,000 300 24,000 240 2 5,500 80 4,000 55 8,000 65 6,500 150 16,000 320 12,000 240 3 3,700 90 2,600 60 5,300 65 4,200 150 11,000 320 8,000 240 4 2,800 90 2,000 60 4,000 65 3,200 150 8,000 320 6,000 240 5 2,200 90 1,600 60 3,200 65 2,500 150 6,400 320 4,800 240 6 1,800 90 1,000 60 2,600 65 2,100 180 5,300 340 4,000 260 8 1,400 90 1,000 60 1,300 65 1,600 190 4,000 340 3,000 260 10 1,100 90 800 60 2,000 65 1,300 200 3,200 340 2,400 260 12 900 90 660 60 1,600 65 1,000 210 2,600 340 2,000 260 14 800 90 570 60 1,100 65 900 220 2,300 340 1,700 260 16 700 100 500 75 1,000 75 800 225 2,000 340 1,500 260 18 600 100 440 75 880 80 700 240 1,800 340 1,300 260 20 550 100 400 75 800 80 640 240 1,600 340 1,200 260 Application tip Slotting depth(ap) ap<0.5D(D > 03) ap<1.OD(D<03) Workpiece should be clamped rigidly In case of vibration, reduce RPM and feed rate by the same ratio Recommended Cutting Condition (FE4000, Shouldering) Workpiece Condition Diameter(0) Steel, Alloy steel (HrC20 ) Steel, Alloy steel (HrC30 40) Stainless steel Titanium alloy Cast iron Graphite cast iron Aluminum alloy Copper Non-ferrous metal R.P.M n(min'1) Feed vf(mm/min) R.P.M n(min'1) Feed vf(mm/min) R.P.M n(min'1) Feed vf(mm/min) R.P.M n(min'1) Feed vf(mm/min) R.P.M n(min'1) Feed vf(mm/min) R.P.M n(min'1) Feed vf(mm/min) 3 3,700 270 2,600 180 5,300 200 4,200 450 11,000 960 8,000 720 4 2,800 270 2,000 180 4,000 200 3,200 450 8,000 960 6,000 720 5 2,200 270 1,600 180 3,200 200 2,500 450 6,400 960 4,800 720 6 1,800 270 1,000 180 2,600 200 2,100 540 5,300 1,020 4,000 780 8 1,400 270 1,000 180 1,300 200 1,600 570 4,000 1,020 3,000 780 10 1,100 270 800 180 2,000 200 1,300 600 3,200 1,020 2,400 780 12 900 270 660 180 1,600 200 1,000 630 2,600 1,020 2,000 780 14 800 270 570 180 1,100 200 900 660 2,300 1,020 1,700 780 16 700 300 500 220 1,000 225 800 680 2,000 1,020 1,500 780 18 600 300 440 220 880 240 700 720 1,800 1,020 1,300 780 20 550 300 400 220 800 240 640 720 1,600 1,020 1,200 780 Application tip Shouldering depth (ap) and radial depth (ae) ap=1.5D ae=0.1D Workpiece should be clamped rigidly In case of vibration, reduce RPM and feed rate by the same ratio Endmill 25
