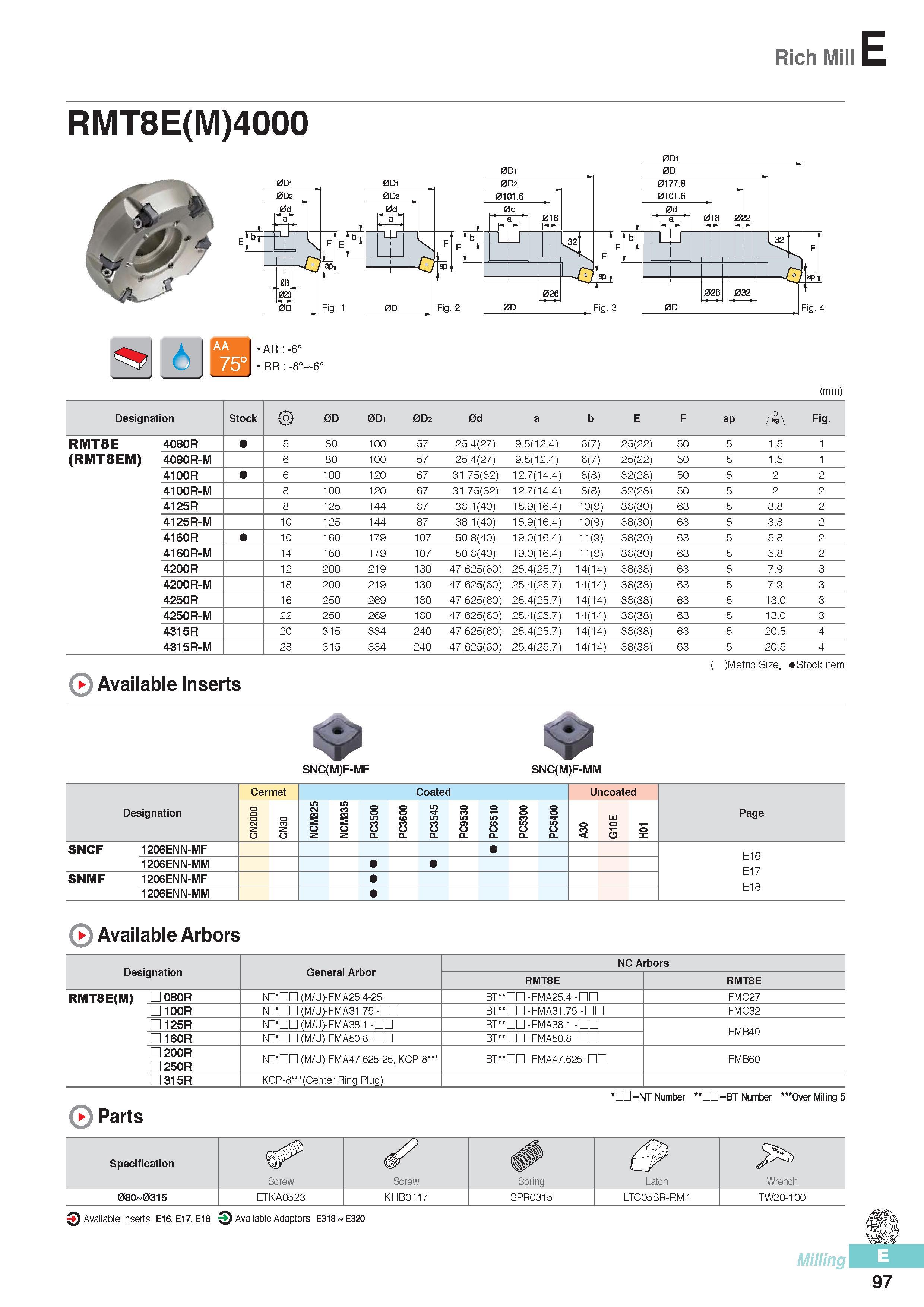

Rich Mill E RMT8E(M)4000 (mm) Designation Stock 0D 0D1 0D2 0d a b E F ap A Fig. RMT8E 4080R 5 80 100 57 25.4(27) 9.5(12.4) 6(7) 25(22) 50 5 1.5 1 (RMT8EM) 4080R-M 6 80 100 57 25.4(27) 9.5(12.4) 6(7) 25(22) 50 5 1.5 1 4100R 6 100 120 67 31.75(32) 12.7(14.4) 8(8) 32(28) 50 5 2 2 4100R-M 8 100 120 67 31.75(32) 12.7(14.4) 8(8) 32(28) 50 5 2 2 4125R 8 125 144 87 38.1(40) 15.9(16.4) 10(9) 38(30) 63 5 3.8 2 4125R-M 10 125 144 87 38.1(40) 15.9(16.4) 10(9) 38(30) 63 5 3.8 2 4160R 10 160 179 107 50.8(40) 19.0(16.4) 11(9) 38(30) 63 5 5.8 2 4160R-M 14 160 179 107 50.8(40) 19.0(16.4) 11(9) 38(30) 63 5 5.8 2 4200R 12 200 219 130 47.625(60) 25.4(25.7) 14(14) 38(38) 63 5 7.9 3 4200R-M 18 200 219 130 47.625(60) 25.4(25.7) 14(14) 38(38) 63 5 7.9 3 4250R 16 250 269 180 47.625(60) 25.4(25.7) 14(14) 38(38) 63 5 13.0 3 4250R-M 22 250 269 180 47.625(60) 25.4(25.7) 14(14) 38(38) 63 5 13.0 3 4315R 20 315 334 240 47.625(60) 25.4(25.7) 14(14) 38(38) 63 5 20.5 4 4315R-M 28 315 334 240 47.625(60) 25.4(25.7) 14(14) 38(38) 63 5 20.5 4 ( Available Inserts ( )Metric Size, Stock item SNC(M)F-MF SNC(M)F-MM Cermet Coated Uncoated Designation CN2000 CN30 NCM325 NCM335 PC3500 PC3600 PC3545 PC9530 PC6510 PC5300 PC5400 A30 G10E H01 Page SNCF 1206ENN-MF E16 E17 E18 1206ENN-MM SNMF 1206ENN-MF 1206ENN-MM 0 Available Arbors Designation General Arbor NC Arbors RMT8E RMT8E RMT8E(M) 080R NT HO (M/U)-FMA25.4-25 BT DD -FMA25.4- FMC27 100R NT HO (M/UJ-FMA31.75 BT nn-FMA31.75 - FMC32 125R NT nn (M/UJ-FMA38.1 BT nn -FMA38.1 - FMB40 160R NT nn (M/U)-FMA50.8 BT nn -FMA50.8 - 200R 250R NT nn (M/U)-FMA47.625-25, KCP-8 BT nn -FMA47.625- FMB60 315R KCP-8 (Center Ring Plug) ‘ -NT Number -BT Number ” 0ver Milling 5 0 Parts Specification Screw Screw Spring Latch Wrench 080 0315 ETKA0523 KHB0417 SPR0315 LTC05SR-RM4 TW20-100 0 Available Inserts E16, E17, E18 O Available Adaptors E318 E320 Milling 97
