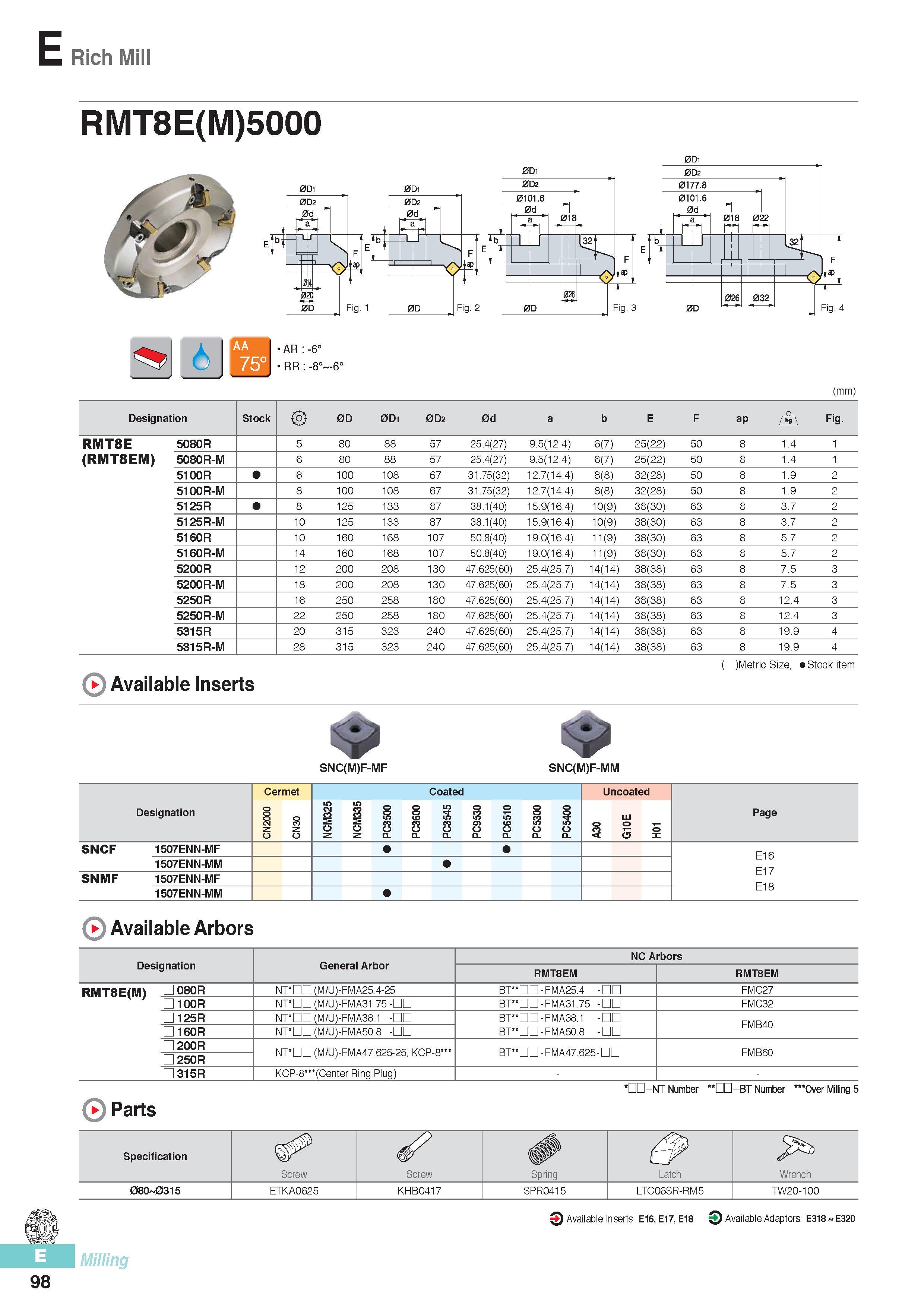

E Rich Mill RMT8E(M)5000 0D1 (mm) Designation Stock 0D 0D1 0D2 0d a b E F ap Fig. RMT8E 5080R 5 80 88 57 25.4(27) 9.5(12.4) 6(7) 25(22) 50 8 1.4 1 (RMT8EM) 5080R-M 6 80 88 57 25.4(27) 9.5(12.4) 6(7) 25(22) 50 8 1.4 1 5100R 6 100 108 67 31.75(32) 12.7(14.4) 8(8) 32(28) 50 8 1.9 2 5100R-M 8 100 108 67 31.75(32) 12.7(14.4) 8(8) 32(28) 50 8 1.9 2 5125R 8 125 133 87 38.1(40) 15.9(16.4) 10(9) 38(30) 63 8 3.7 2 5125R-M 10 125 133 87 38.1(40) 15.9(16.4) 10(9) 38(30) 63 8 3.7 2 5160R 10 160 168 107 50.8(40) 19.0(16.4) 11(9) 38(30) 63 8 5.7 2 5160R-M 14 160 168 107 50.8(40) 19.0(16.4) 11(9) 38(30) 63 8 5.7 2 5200R 12 200 208 130 47.625(60) 25.4(25.7) 14(14) 38(38) 63 8 7.5 3 5200R-M 18 200 208 130 47.625(60) 25.4(25.7) 14(14) 38(38) 63 8 7.5 3 5250R 16 250 258 180 47.625(60) 25.4(25.7) 14(14) 38(38) 63 8 12.4 3 5250R-M 22 250 258 180 47.625(60) 25.4(25.7) 14(14) 38(38) 63 8 12.4 3 5315R 20 315 323 240 47.625(60) 25.4(25.7) 14(14) 38(38) 63 8 19.9 4 5315R-M 28 315 323 240 47.625(60) 25.4(25.7) 14(14) 38(38) 63 8 19.9 4 ( Available Inserts ( )Metric Size, Stock item SNC(M)F-MF SNC(M)F-MM Cermet Coated Uncoated Designation CN2000 CN30 NCM325 NCM335 PC3500 PC3600 PC3545 PC9530 PC6510 PC5300 PC5400 A30 G10E H01 Page SNCF 1507ENN-MF E16 E17 E18 1507ENN-MM SNMF 1507ENN-MF 1507ENN-MM ( Available Arbors Designation General Arbor NC Arbors RMT8EM RMT8EM RMT8E(M) 080R NT HO (M/U)-FMA25.4-25 BT DD -FMA25.4 - FMC27 100R NT HO (M/UJ-FMA31.75 BT nn-FMA31.75 - FMC32 125R NT nn (M/UJ-FMA38.1 BT nn -FMA38.1 - BT nn -FMA50.8 - FMB40 160R NT nn (M/U)-FMA50.8 200R NT nn (M/U)-FMA47.625-25, KCP-8 BT nn -FMA47.625- FMB60 250R 315R KCP-8 (Center Ring Plug) ( Parts -NT Number -BT Number "'Over Milling 5 Specification Screw Screw Spring Latch Wrench 080 0315 ETKA0625 KHB0417 SPR0415 LTC06SR-RM5 TW20-100 Q Available Inserts E16, E17, E18 O Available Adaptors E318 E320 Milling 98
