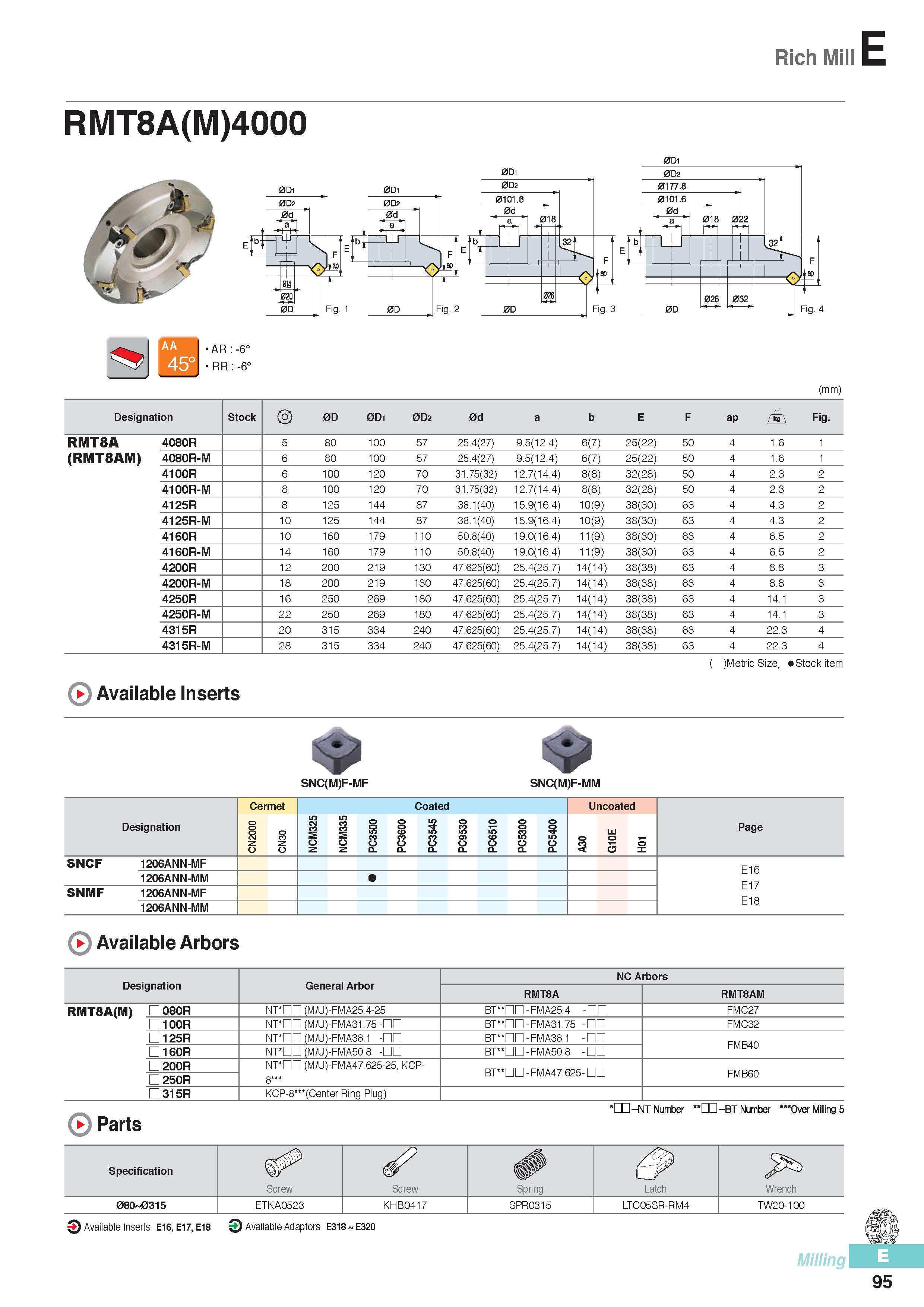

Rich Mill E RMT8A(M)4000 AR -6° WA I RR _6. (mm) Designation Stock 0D 0D1 0D2 0d a b E F ap f+\ Fig. RMT8A 4080R 5 80 100 57 25.4(27) 9.5(12.4) 6(7) 25(22) 50 4 1.6 1 (RMT8AM) 4080R-M 6 80 100 57 25.4(27) 9.5(12.4) 6(7) 25(22) 50 4 1.6 1 4100R 6 100 120 70 31.75(32) 12.7(14.4) 8(8) 32(28) 50 4 2.3 2 4100R-M 8 100 120 70 31.75(32) 12.7(14.4) 8(8) 32(28) 50 4 2.3 2 4125R 8 125 144 87 38.1(40) 15.9(16.4) 10(9) 38(30) 63 4 4.3 2 4125R-M 10 125 144 87 38.1(40) 15.9(16.4) 10(9) 38(30) 63 4 4.3 2 4160R 10 160 179 110 50.8(40) 19.0(16.4) 11(9) 38(30) 63 4 6.5 2 4160R-M 14 160 179 110 50.8(40) 19.0(16.4) 11(9) 38(30) 63 4 6.5 2 4200R 12 200 219 130 47.625(60) 25.4(25.7) 14(14) 38(38) 63 4 8.8 3 4200R-M 18 200 219 130 47.625(60) 25.4(25.7) 14(14) 38(38) 63 4 8.8 3 4250R 16 250 269 180 47.625(60) 25.4(25.7) 14(14) 38(38) 63 4 14.1 3 4250R-M 22 250 269 180 47.625(60) 25.4(25.7) 14(14) 38(38) 63 4 14.1 3 4315R 20 315 334 240 47.625(60) 25.4(25.7) 14(14) 38(38) 63 4 22.3 4 4315R-M 28 315 334 240 47.625(60) 25.4(25.7) 14(14) 38(38) 63 4 22.3 4 ( )Metric Size, Stock item ( Available Inserts SNC(M)F-MF SNC(M)F-MM Cermet Coated Uncoated Designation CN2000 CN30 NCM325 NCM335 PC3500 PC3600 PC3545 PC9530 PC6510 PC5300 PC5400 A30 G10E H01 Page SNCF 1206ANN-MF E16 E17 E18 1206ANN-MM SNMF 1206ANN-MF 1206ANN-MM ( Available Arbors Designation General Arbor NC Arbors RMT8A RMT8AM RMT8A(M) 080R NT HO (M/U)-FMA25.4-25 BT DD -FMA25.4 - FMC27 100R NT HO (M/U)-FMA31.75 BT nn -FMA31.75 - FMC32 125R NT nn (M/UJ-FMA38.1 BT nn -FMA38.1 - FMB40 160R NT nn (M/U)-FMA50.8 BT nn -FMA50.8 - 200R NT nn (M/U)-FMA47.625-25, KCP-8 BT nn -FMA47.625- FMB60 250R 315R KCP-8 (Center Ring Plug) ( Parts -NT Number -BT Number '"Over Milling 5 Specification Screw Screw Spring Latch Wrench 080 0315 ETKA0523 KHB0417 SPR0315 LTC05SR-RM4 TW20-100 0 Available Inserts E16, E17, E18 O Available Adaptors E318 E320 Milling 95
