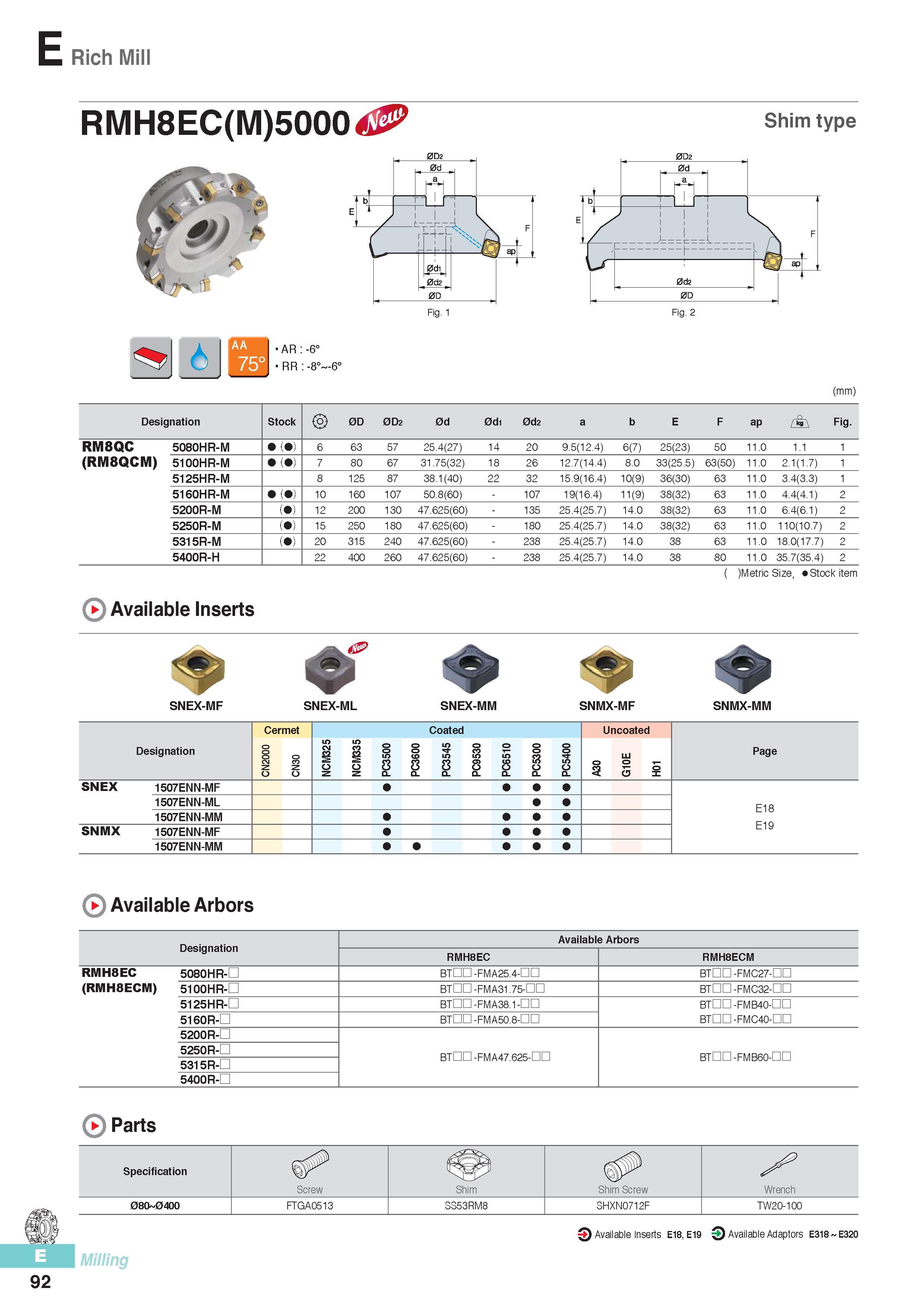

479 Каталог KORLOY 2016 Металлорежущий инструмент и станочная оснастка ENG Стр.E92

Каталог KORLOY 2016 Инструмент и оснастка Стр. E92 0479 ENG Lab2u

E Rich Mill RMH8EC(M)5000 Shim type (mm) Designation Stock 0D 0D2 0d 0d1 0d2 a b E F ap Fig. RM8QC 5080HR-M ( ) 6 63 57 25.4(27) 14 20 9.5(12.4) 6(7) 25(23) 50 11.0 1.1 1 (RM8QCM) 5100HR-M ( ) 7 80 67 31.75(32) 18 26 12.7(14.4) 8.0 33(25.5) 63(50) 11.0 2.1(1.7) 1 5125HR-M 8 125 87 38.1(40) 22 32 15.9(16.4) 10(9) 36(30) 63 11.0 3.4(3.3) 1 5160HR-M ( ) 10 160 107 50.8(60) 107 19(16.4) 11(9) 38(32) 63 11.0 4.4(4.1) 2 5200R-M ( ) 12 200 130 47.625(60) 135 25.4(25.7) 14.0 38(32) 63 11.0 6.4(6.1) 2 5250R-M ( ) 15 250 180 47.625(60) 180 25.4(25.7) 14.0 38(32) 63 11.0 110(10.7) 2 5315R-M ( ) 20 315 240 47.625(60) 238 25.4(25.7) 14.0 38 63 11.0 18.0(17.7) 2 5400R-H 22 400 260 47.625(60) 238 25.4(25.7) 14.0 38 80 11.0 35.7(35.4) 2 ( )Metric Size, Stock item 0 Available Inserts SNEX-MF SNEX-ML SNEX-MM SNMX-MF SNMX-MM Cermet Coated Uncoated Designation CN2000 CN30 SZEIAION NCM335 PC3500 PC3600 PC3545 PC9530 PC6510 PC5300 PC5400 o 3 G10E 01 X Page SNEX 1507ENN-MF E18 E19 1507ENN-ML 1507ENN-MM SNMX 1507ENN-MF 1507ENN-MM 0 Available Arbors Designation Available Arbors RMH8EC RMH8ECM RMH8EC 5080HR-D BTDD-FMA25.4-DD BTDD-FMC27-HO (RMH8ECM) 5100HR-D BTDD-FMA31.75-HO BTDD-FMC32-HO 5125HR-D BTDD-FMA38.1-DQ BTDD-FMB40-DQ BTDD-FMC40-HO 5160R-D BTDD-FMA50.8-DQ 5200R-D BTDD-FMA47.625-DQ BTDD-FMB60-QC 5250R-D 5315R-D 5400R-D 0 Parts Specification S' Screw Shim Shim Screw Wrench 080 0400 FTGA0513 SS53RM8 SHXN0712F TW20-100 gPf O Available Inserts E18, E19 O Available Adaptors E318 E320 E Milling 92
