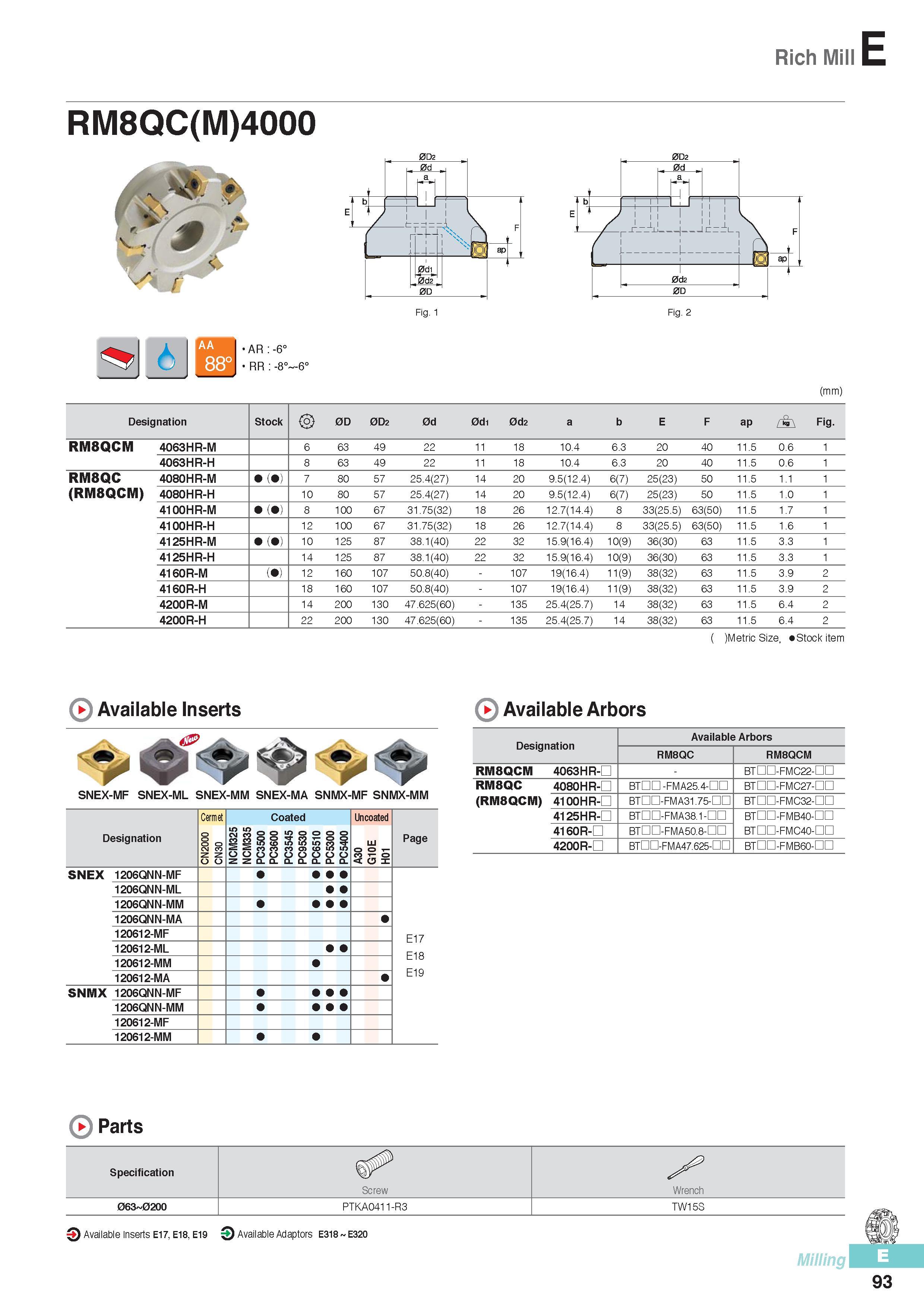

Rich Mill E RM8QC(M)4000 (mm) Designation Stock 0D 0D2 0d 0d1 0d2 a b E F ap Fig. RM8QCM 4063HR-M 6 63 49 22 11 18 10.4 6.3 20 40 11.5 0.6 1 4063HR-H 8 63 49 22 11 18 10.4 6.3 20 40 11.5 0.6 1 RM8QC 4080HR-M ( ) 7 80 57 25.4(27) 14 20 9.5(12.4) 6(7) 25(23) 50 11.5 1.1 1 (RM8QCM) 4080HR-H 10 80 57 25.4(27) 14 20 9.5(12.4) 6(7) 25(23) 50 11.5 1.0 1 4100HR-M ( ) 8 100 67 31.75(32) 18 26 12.7(14.4) 8 33(25.5) 63(50) 11.5 1.7 1 4100HR-H 12 100 67 31.75(32) 18 26 12.7(14.4) 8 33(25.5) 63(50) 11.5 1.6 1 4125HR-M ( ) 10 125 87 38.1(40) 22 32 15.9(16.4) 10(9) 36(30) 63 11.5 3.3 1 4125HR-H 14 125 87 38.1(40) 22 32 15.9(16.4) 10(9) 36(30) 63 11.5 3.3 1 4160R-M ( ) 12 160 107 50.8(40) 107 19(16.4) 11(9) 38(32) 63 11.5 3.9 2 4160R-H 18 160 107 50.8(40) 107 19(16.4) 11(9) 38(32) 63 11.5 3.9 2 4200R-M 14 200 130 47.625(60) 135 25.4(25.7) 14 38(32) 63 11.5 6.4 2 4200R-H 22 200 130 47.625(60) 135 25.4(25.7) 14 38(32) 63 11.5 6.4 2 ( )Metric Size, Stock item SNEX-MF SNEX-ML SNEX-MM SNEX-MA SNMX-MF SNMX-MM Designation Cermet Coated Uncoated Page CN2000 0 3 N C NCM325 moo rn o gSSSSKSS n cowcoinm oo za. a.a.a.a.a.a. A30 G10E H01 SNEX 1206QNN-MF 1206QNN-ML 1206QNN-MM 1206QNN-MA 120612-MF E17 120612-ML 120612-MM 120612-MA E19 SNMX 1206QNN-MF 1206QNN-MM 120612-MF 120612-MM Available Arbors Designation Available Arbors RM8QC RM8QCM RM8QCM 4063HR- BTHO-FMC22-HO RM8QC 4080HR-D BTDD-FMA25.4-DD BTHO-FMC27-HO (RM8QCM) 4100HR-D BTHO-FMA31.75-HO BTHO-FMC32-HO 4125HR-D BTDD-FMA38.1-nn BTHO-FMB40-HO BTHO-FMC40-HO 4160R-D BTDD-FMA50.8-nn 4200R-D BTDD-FMA47.625-nn BTHO-FMB60-HO Specification Screw Wrench 063 0200 PTKA0411-R3 TW15S 3 Available Inserts E17, E18, E19 O Available Adaptors E318 E320 Milling 93
