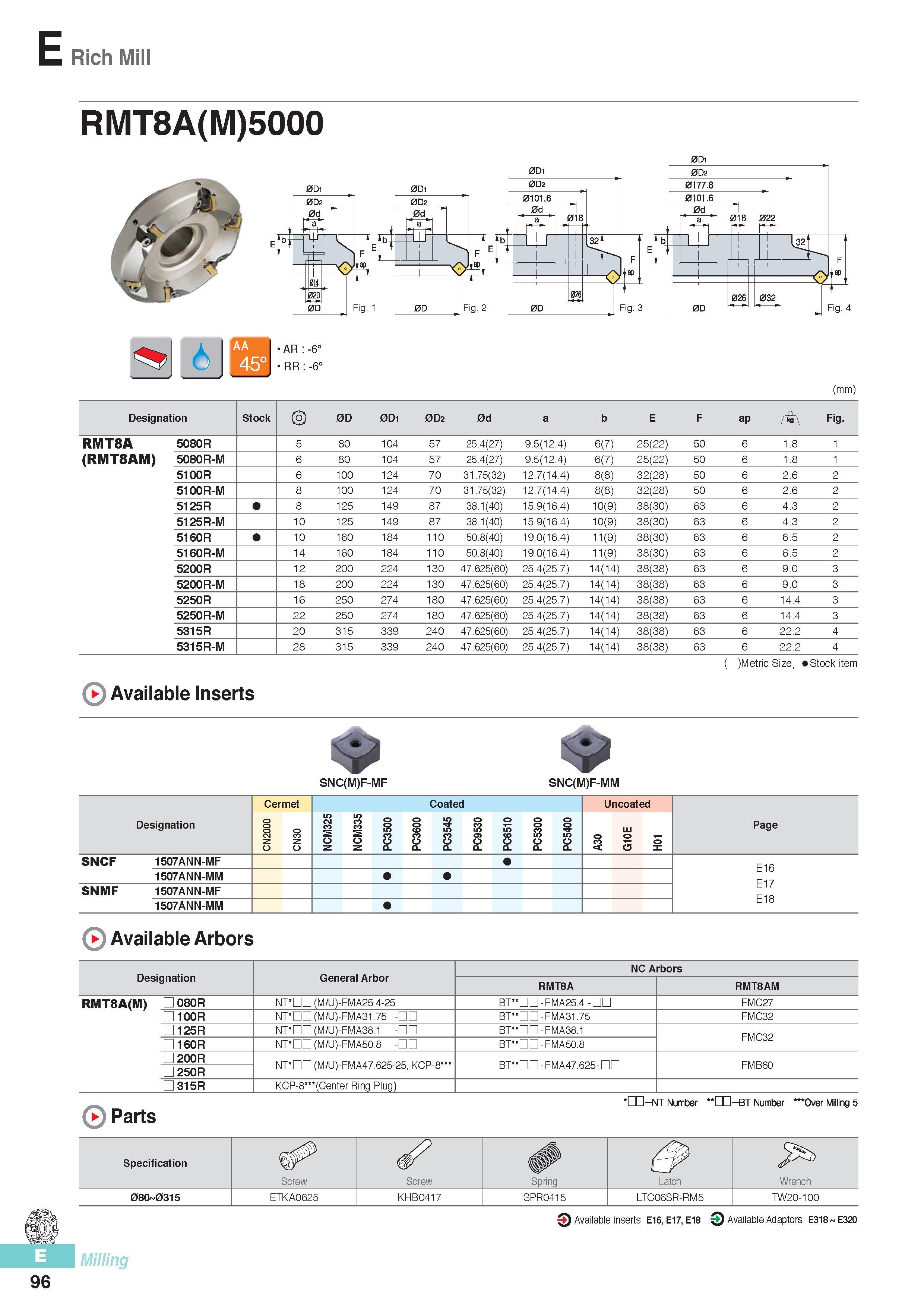

E Rich Mill RMT8A(M)5000 0D1 0D1 002 (mm) Designation Stock 0D 0D1 0D2 0d a b E F ap Fig. RMT8A 5080R 5 80 104 57 25.4(27) 9.5(12.4) 6(7) 25(22) 50 6 1.8 1 (RMT8AM) 5080R-M 6 80 104 57 25.4(27) 9.5(12.4) 6(7) 25(22) 50 6 1.8 1 5100R 6 100 124 70 31.75(32) 12.7(14.4) 8(8) 32(28) 50 6 2.6 2 5100R-M 8 100 124 70 31.75(32) 12.7(14.4) 8(8) 32(28) 50 6 2.6 2 5125R 8 125 149 87 38.1(40) 15.9(16.4) 10(9) 38(30) 63 6 4.3 2 5125R-M 10 125 149 87 38.1(40) 15.9(16.4) 10(9) 38(30) 63 6 4.3 2 5160R 10 160 184 110 50.8(40) 19.0(16.4) 11(9) 38(30) 63 6 6.5 2 5160R-M 14 160 184 110 50.8(40) 19.0(16.4) 11(9) 38(30) 63 6 6.5 2 5200R 12 200 224 130 47.625(60) 25.4(25.7) 14(14) 38(38) 63 6 9.0 3 5200R-M 18 200 224 130 47.625(60) 25.4(25.7) 14(14) 38(38) 63 6 9.0 3 5250R 16 250 274 180 47.625(60) 25.4(25.7) 14(14) 38(38) 63 6 14.4 3 5250R-M 22 250 274 180 47.625(60) 25.4(25.7) 14(14) 38(38) 63 6 14.4 3 5315R 20 315 339 240 47.625(60) 25.4(25.7) 14(14) 38(38) 63 6 22.2 4 5315R-M 28 315 339 240 47.625(60) 25.4(25.7) 14(14) 38(38) 63 6 22.2 4 ( )Metric Size, Stock item 0 Available Inserts SNC(M)F-MF SNC(M)F-MM Cermet Coated Uncoated Designation CN2000 CN30 NCM325 NCM335 PC3500 PC3600 PC3545 PC9530 PC6510 PC5300 PC5400 A30 G10E H01 Page SNCF 1507ANN-MF E16 E17 E18 1507ANN-MM SNMF 1507ANN-MF 1507ANN-MM 0 Available Arbors Designation General Arbor NC Arbors RMT8A RMT8AM RMT8A(M) 080R NT HO (M/U)-FMA25.4-25 BT DD -FMA25.4 - FMC27 100R NT HO (M/UJ-FMA31.75 BT nn -FMA31.75 FMC32 125R NT nn (M/UJ-FMA38.1 BT nn -FMA38.1 FMC32 160R NT nn (M/U)-FMA50.8 BT nn -FMA50.8 200R NT nn (M/U)-FMA47.625-25, KCP-8 BT nn -FMA47.625- FMB60 250R 315R KCP-8 (Center Ring Plug) 0 Parts -NT Number -BT Number 0ver Milling 5 Specification wW Screw Screw Spring Latch Wrench 080 0315 ETKA0625 KHB0417 SPR0415 LTC06SR-RM5 TW20-100 96 Milling 3 Available Inserts E16, E17, E18 3 Available Adaptors E318 E320
