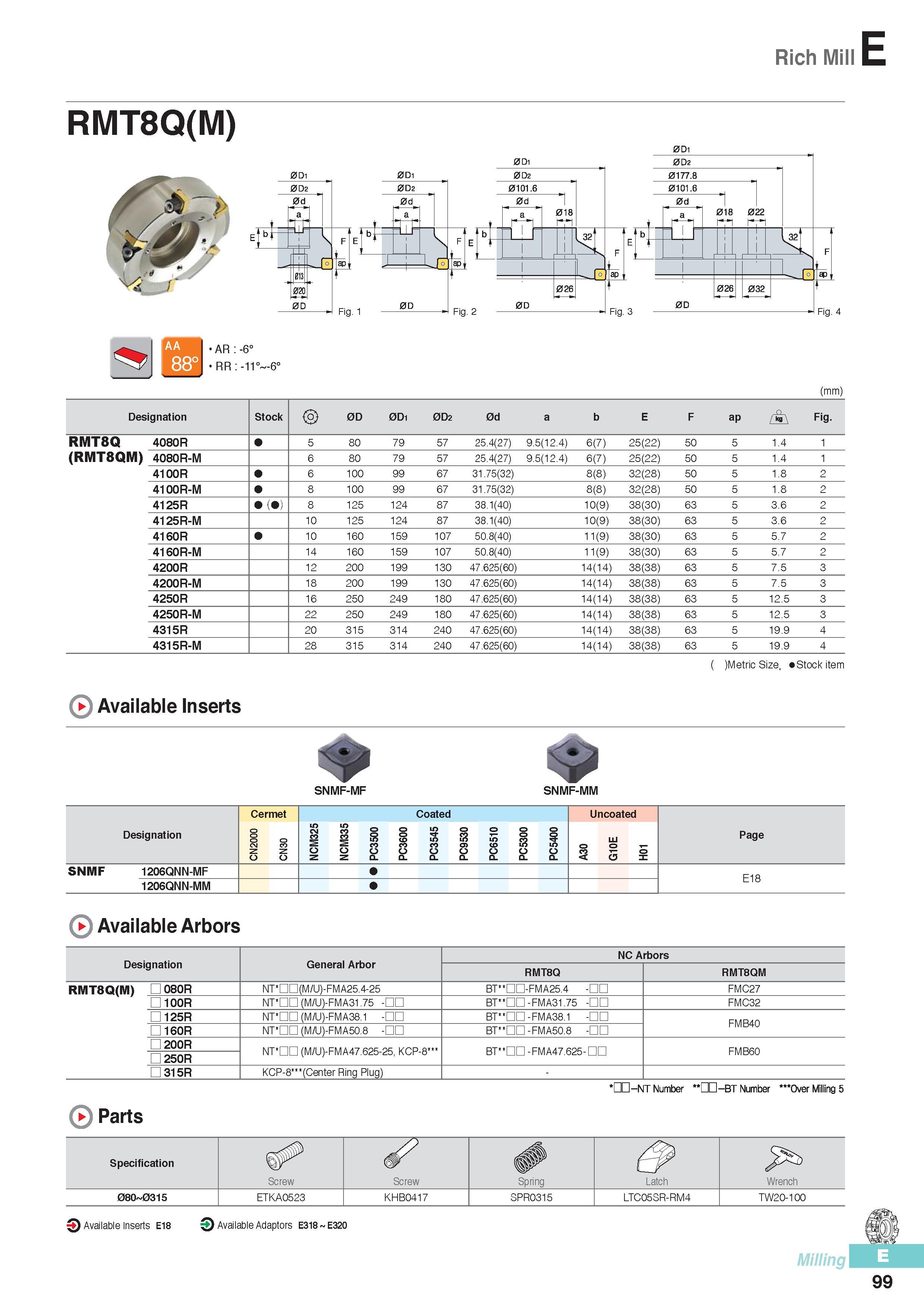

Rich Mill E RMT8Q(M) AR -6° RR -11° (mm) Designation Stock > 0D 0D1 0D2 0d a b E F ap Fig. RMT8Q 4080R 5 80 79 57 25.4(27) 9.5(12.4) 6(7) 25(22) 50 5 1.4 1 (RMT8QM) 4080R-M 6 80 79 57 25.4(27) 9.5(12.4) 6(7) 25(22) 50 5 1.4 1 4100R 6 100 99 67 31.75(32) 8(8) 32(28) 50 5 1.8 2 4100R-M 8 100 99 67 31.75(32) 8(8) 32(28) 50 5 1.8 2 4125R ( ) 8 125 124 87 38.1(40) 10(9) 38(30) 63 5 3.6 2 4125R-M 10 125 124 87 38.1(40) 10(9) 38(30) 63 5 3.6 2 4160R 10 160 159 107 50.8(40) 11(9) 38(30) 63 5 5.7 2 4160R-M 14 160 159 107 50.8(40) 11(9) 38(30) 63 5 5.7 2 4200R 12 200 199 130 47.625(60) 14(14) 38(38) 63 5 7.5 3 4200R-M 18 200 199 130 47.625(60) 14(14) 38(38) 63 5 7.5 3 4250R 16 250 249 180 47.625(60) 14(14) 38(38) 63 5 12.5 3 4250R-M 22 250 249 180 47.625(60) 14(14) 38(38) 63 5 12.5 3 4315R 20 315 314 240 47.625(60) 14(14) 38(38) 63 5 19.9 4 4315R-M 28 315 314 240 47.625(60) 14(14) 38(38) 63 5 19.9 4 ( )Metric Size, Stock item 0 Available Inserts SNMF-MF SNMF-MM Cermet Coated Uncoated Designation CN2000 CN30 NCM325 NCM335 PC3500 PC3600 PC3545 PC9530 PC6510 PC5300 PC5400 A30 G10E H01 Page SNMF 1206QNN-MF E18 1206QNN-MM 0 Available Arbors Designation General Arbor NC Arbors RMT8Q RMT8QM RMT8Q(M) 080R NT DD(M/U)-FMA25.4-25 BT DD-FMA25.4 - FMC27 100R NT HO (M/U)-FMA31.75 BT DD -FMA31.75 - FMC32 125R NT nn (M/U)-FMA38.1 BT nn -FMA38.1 - FMB40 160R NT nn (M/U)-FMA50.8 BT nn -FMA50.8 - 200R NT nn (M/U)-FMA47.625-25, KCP-8 BT nn -FMA47.625- FMB60 250R 315R KCP-8 (Center Ring Plug) -NT Number '' -BT Number '"Over Milling 5 0 Parts Specification Screw Screw Spring Latch Wrench 080 0315 ETKA0523 KHB0417 SPR0315 LTC05SR-RM4 TW20-100 QAvailable Inserts E18 OAvailable Adaptors E318 E320 Milling 99
