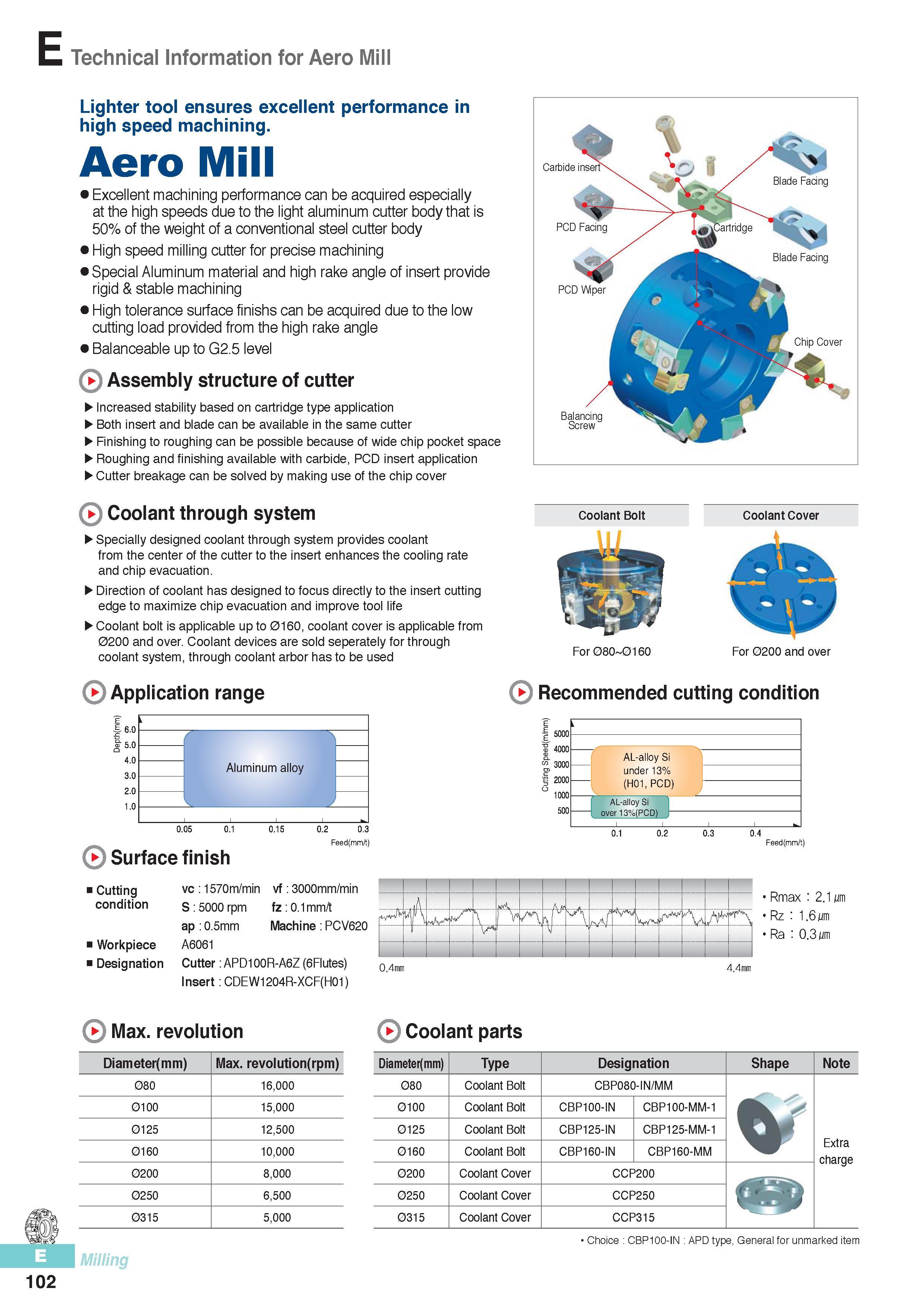

Lighter indexable milling tool Korloy Aero Mill ensures excellent performance in high speed machining. High speed milling cutter for precise machining Special Aluminum material and high rake angle of insert provide rigid & stable machining High tolerance surface finishs can be acquired due to the low cutting load provided from the high rake angle Balanceable up to G2.5 level Assembly structure of cutter Increased stability based on cartridge type application Both insert and blade can be available in the same cutter Finishing to roughing can be possible because of wide chip pocket space Roughing and finishing available with carbide, PCD insert application Cutter breakage can be solved by making use of the chip cover Coolant through system Specially designed coolant through system provides coolant from the center of the cutter to the insert enhances the cooling rate and chip evacuation. Direction of coolant has designed to focus directly to the insert cutting edge to maximize chip evacuation and improve tool life Coolant bolt is applicable up to 0160, coolant cover is applicable from 0200 and over. Coolant devices are sold seperately for through coolant system, through coolant arbor has to be used Carbide insert PCD Facing PCD Wiper Balancing Screw Coolant Bolt Coolant Cover For 080 0160 For 0200 and over Application range 6.0 & 5.0 4.0 3.0 2.0 1.0 Surface finish 0.2 0.3 Feed(mm/t) Cutting condition i Workpiece i Designation vc:1570m/min vf :3000mm/min S 5000 rpm fz:0.1mm/t ap 0.5mm Machine PCV620 A6061 Cutter APD100R-A6Z (6Flutes) Insert CDEW1204R-XCF(H01) Recommended cutting condition 5000 ( 4000 p 3000 2000 1000 500 AL-alloy Si under 13% (H01, PCD) AL-alloy Si over 13%(PCD) V \ hr \ Y Al rf 1', \ A I Feed(mm/t) Rmax 2.1 m Rz 1.6 m Ra 0.3 m 0.4m 4.4m 102 Max. revolution Diameter(mm) Max. revolution(rpm) 080 16,000 0100 15,000 0125 12,500 0160 10,000 0200 8,000 0250 6,500 0315 5,000 Milling Coolant parts Diameter(mm) 080 0100 0125 0160 0200 0250 0315 Type Coolant Bolt Coolant Bolt Coolant Bolt Coolant Bolt Coolant Cover Coolant Cover Coolant Cover Designation CBP080-IN/MM CBP100-II CBP125-II CBP160-I CBP100-MM-1 CBP125-MM-1 CBP160-MM CCP200 CCP250 CCP315 Shape Note V Extra charge Choice CBP100-IN APD type, General for unmarked item Technical Information for Aero Mill Aero Mill Excellent machining performance can be acquired especially at the high speeds due to the light aluminum cutter body that is 50% of the weight of a conventional steel cutter body
