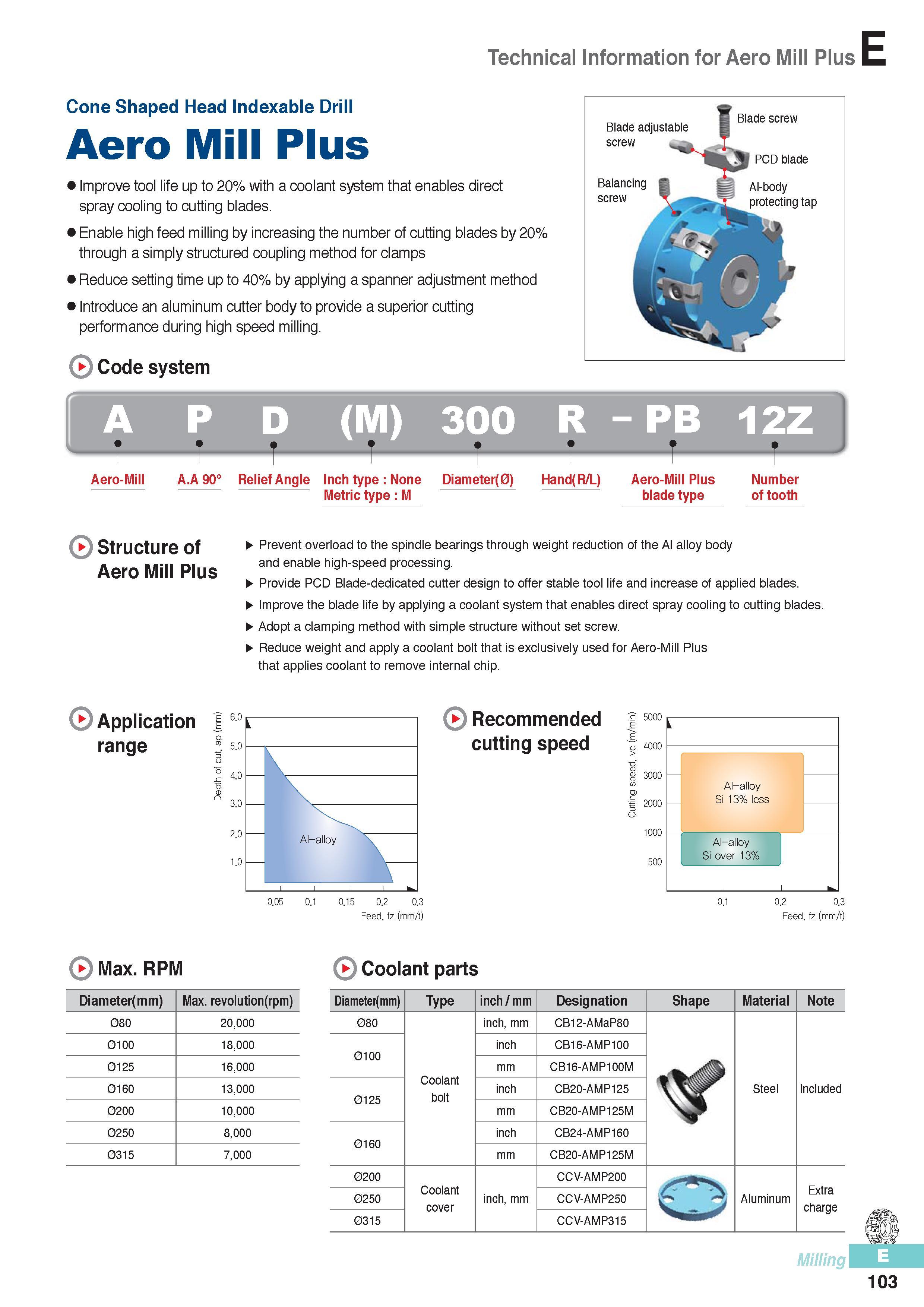

Metal cnc milling tools Korloy Aero Mill Plus Cone Shaped Head Indexable Drill Improve tool life up to 20% with a coolant system that enables direct spray cooling to cutting blades. Enable high feed milling by increasing the number of cutting blades by 20% through a simply structured coupling method for clamps Reduce setting time up to 40% by applying a spanner adjustment method Introduce an aluminum cutter body to provide a superior cutting performance during high speed milling. Code system A P D (M) 300 R -PB 12Z nr i rr rr Aero-Mill A.A 90° Relief Angle Inch type None Metric type M rr rr Diameter(0) Hand(R/L) Aero-Mill Plus blade type Number of tooth Structure of Aero Mill Plus Prevent overload to the spindle bearings through weight reduction of the Al alloy body and enable high-speed processing. Provide PCD Blade-dedicated cutter design to offer stable tool life and increase of applied blades. Improve the blade life by applying a coolant system that enables direct spray cooling to cutting blades. Adopt a clamping method with simple structure without set screw. Reduce weight and apply a coolant bolt that is exclusively used for Aero-Mill Plus that applies coolant to remove internal chip. Application range Recommended cutting speed 5000 4000 3000 2000 1000 500 Al-alloy Si 13% less Al-alloy Si over 13% Feed, fz (mm/t) 0.2 0.3 Feed, fz (mm/t) Max. RPM Diameter(mm) Max. revolution(rpm) 080 20,000 0100 18,000 0125 16,000 0160 13,000 0200 10,000 0250 8,000 0315 7,000 Coolant parts Diameter(mm) Type inch / mm Designation Shape Material Note 080 Coolant bolt inch, mm CB12-AMaP80 Steel Included 0100 inch CB16-AMP100 mm CB16-AMP100M 0125 inch CB20-AMP125 mm CB20-AMP125M 0160 inch CB24-AMP160 mm CB20-AMP125M 0200 Coolant cover inch, mm CCV-AMP200 Aluminum Extra charge 0250 CCV-AMP250 0315 CCV-AMP315 Milling 103 Technical Information for Aero Mill Plus
