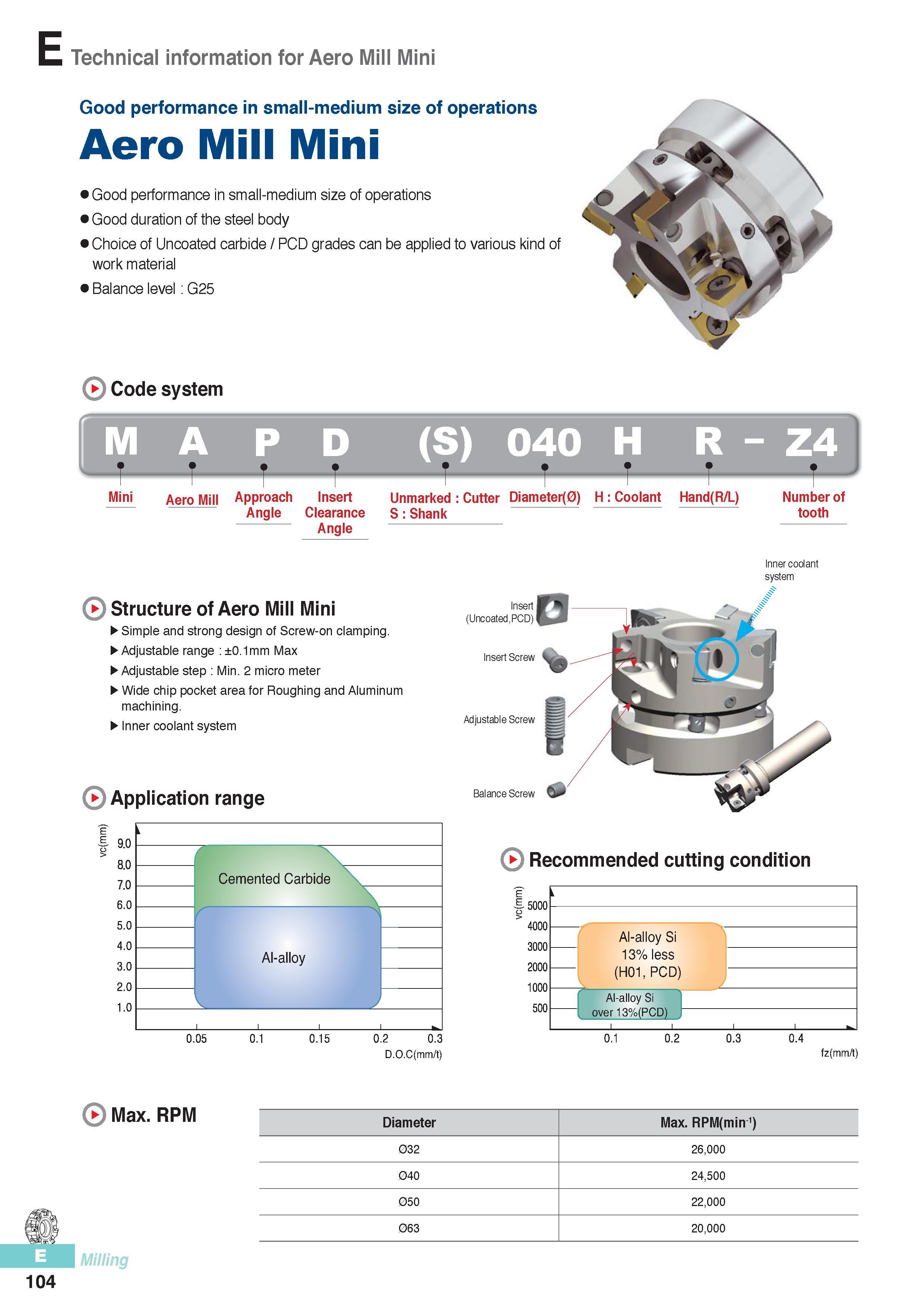

Metal milling indexable tools from South Korea Aero Mill Korloy Mini Good performance in small-medium size of operations Good duration of the steel body Choice of Uncoated carbide / PCD grades can be applied to various kind of work material Balance level G25 Code system M A (S) 040 H R - Z4 Mini Aero Mill Approach Insert Unmarked Cutter Diameter(0) H Coolant Hand(R/L) Number of Angle Clearance S Shank tooth Angle Structure of Aero Mill Mini Simple and strong design of Screw-on clamping. Adjustable range ±0.1mm Max Adjustable step Min. 2 micro meter Wide chip pocket area for Roughing and Aluminum machining. Inner coolant system Application range 0.05 0.15 Insert (Uncoated,PCD) Insert Screw Adjustable Screw Balance Screw X Cemented Carbide Al-alloy 1 1 1 1 Inner coolant system Recommended cutting condition 5000 4000 3000 2000 1000 500 i Al-alloy Si 13% less (H01, PCD) Al-alloy Si over 13%(PCD) - 0.2 0.3 D.O.C(mm/t) 0.1 0.2 0.3 0.4 fz(mm/t) Max. RPM Diameter Max. RPM(min-1) 032 26,000 040 24,500 050 22,000 063 20,000 Milling 104 Technical information for Aero Mill Mini Good performance in small-medium size of operations
