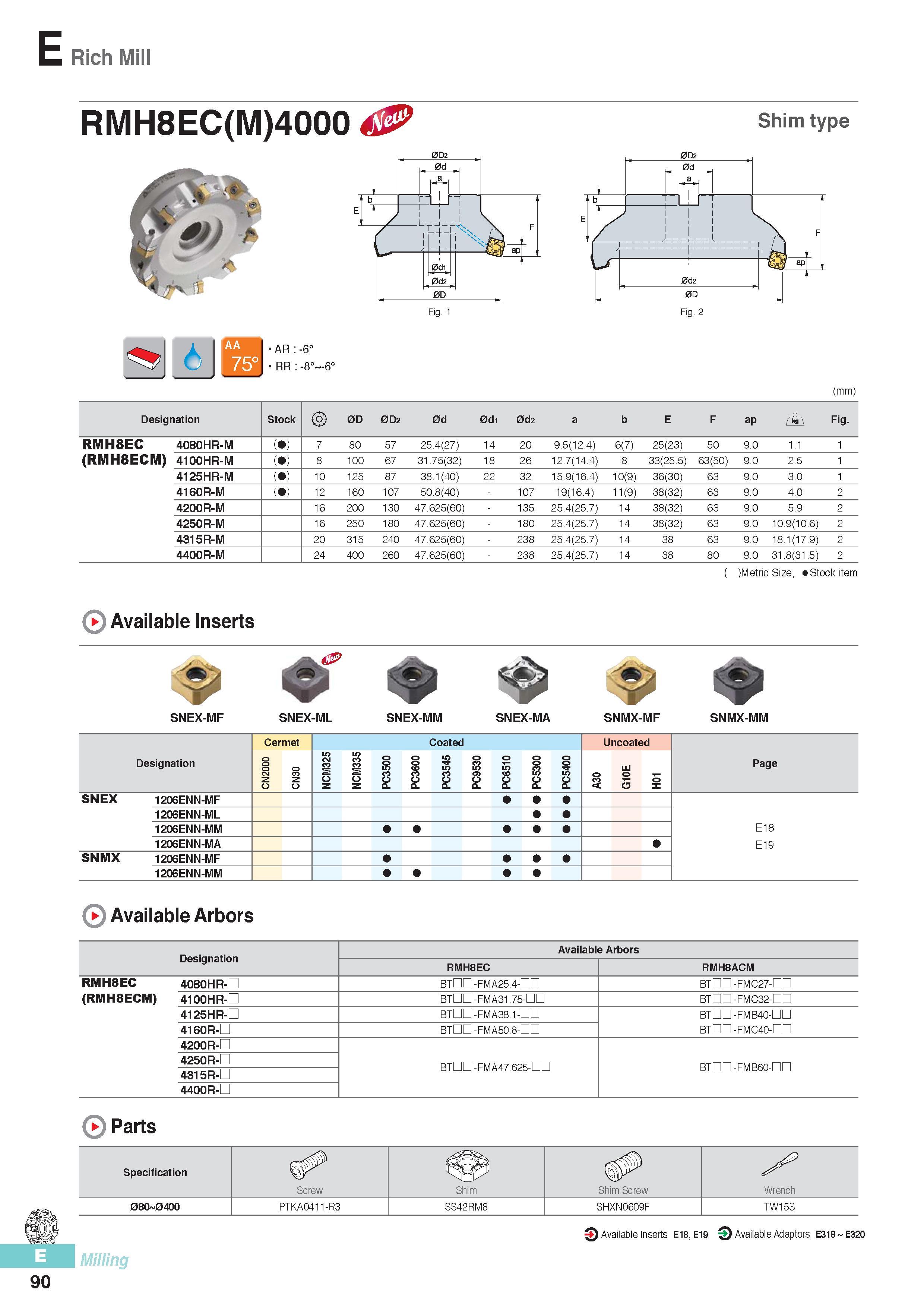

E Rich Mill RMH8EC(M)4000 shim.yPe (mm) Designation Stock 0D 0D2 0d 0d1 0d2 a b E F ap /"fry Fig. RMH8EC 4080HR-M ( ) 7 80 57 25.4(27) 14 20 9.5(12.4) 6(7) 25(23) 50 9.0 1.1 1 (RMH8ECM) 4100HR-M ( ) 8 100 67 31.75(32) 18 26 12.7(14.4) 8 33(25.5) 63(50) 9.0 2.5 1 4125HR-M ( ) 10 125 87 38.1(40) 22 32 15.9(16.4) 10(9) 36(30) 63 9.0 3.0 1 4160R-M ( ) 12 160 107 50.8(40) 107 19(16.4) 11(9) 38(32) 63 9.0 4.0 2 4200R-M 16 200 130 47.625(60) 135 25.4(25.7) 14 38(32) 63 9.0 5.9 2 4250R-M 16 250 180 47.625(60) 180 25.4(25.7) 14 38(32) 63 9.0 10.9(10.6) 2 4315R-M 20 315 240 47.625(60) 238 25.4(25.7) 14 38 63 9.0 18.1(17.9) 2 4400R-M 24 400 260 47.625(60) 238 25.4(25.7) 14 38 80 9.0 31.8(31.5) 2 ( )Metric Size, Stock item 0 Available Inserts SNEX-MF SNEX-ML SNEX-MM SNEX-MA SNMX-MF SNMX-MM Cermet Coated Uncoated Designation CN2000 CN30 NCM325 NCM335 PC3500 PC3600 PC3545 PC9530 PC6510 PC5300 PC5400 o 3 G10E 01 X Page SNEX 1206ENN-MF 1206ENN-ML 1206ENN-MM E18 1206ENN-MA E19 SNMX 1206ENN-MF 1206ENN-MM 0 Available Arbors Designation Available Arbors RMH8EC RMH8ACM RMH8EC 4080HR-D BTDD-FMA25.4-DQ BTDD-FMC27-HO (RMH8ECM) 4100HR-D BTDD-FMA31.75-DD BTDD-FMC32-DD 4125HR-D BTDD-FMA38.1-DQ BTDD-FMB40-DD BTDD-FMC40-HO 4160R-D BTDD-FMA50.8-DQ 4200R-D BTDD-FMA47.625-DQ BTDD-FMB60-DC 4250R-D 4315R-D 4400R-D 0 Parts Specification S' Screw Shim Shim Screw Wrench 080 0400 PTKA0411-R3 SS42RM8 SHXN0609F TW15S gPf Available Inserts E18, E19 OAvailable Adaptors E318 E320 E Milling 90
