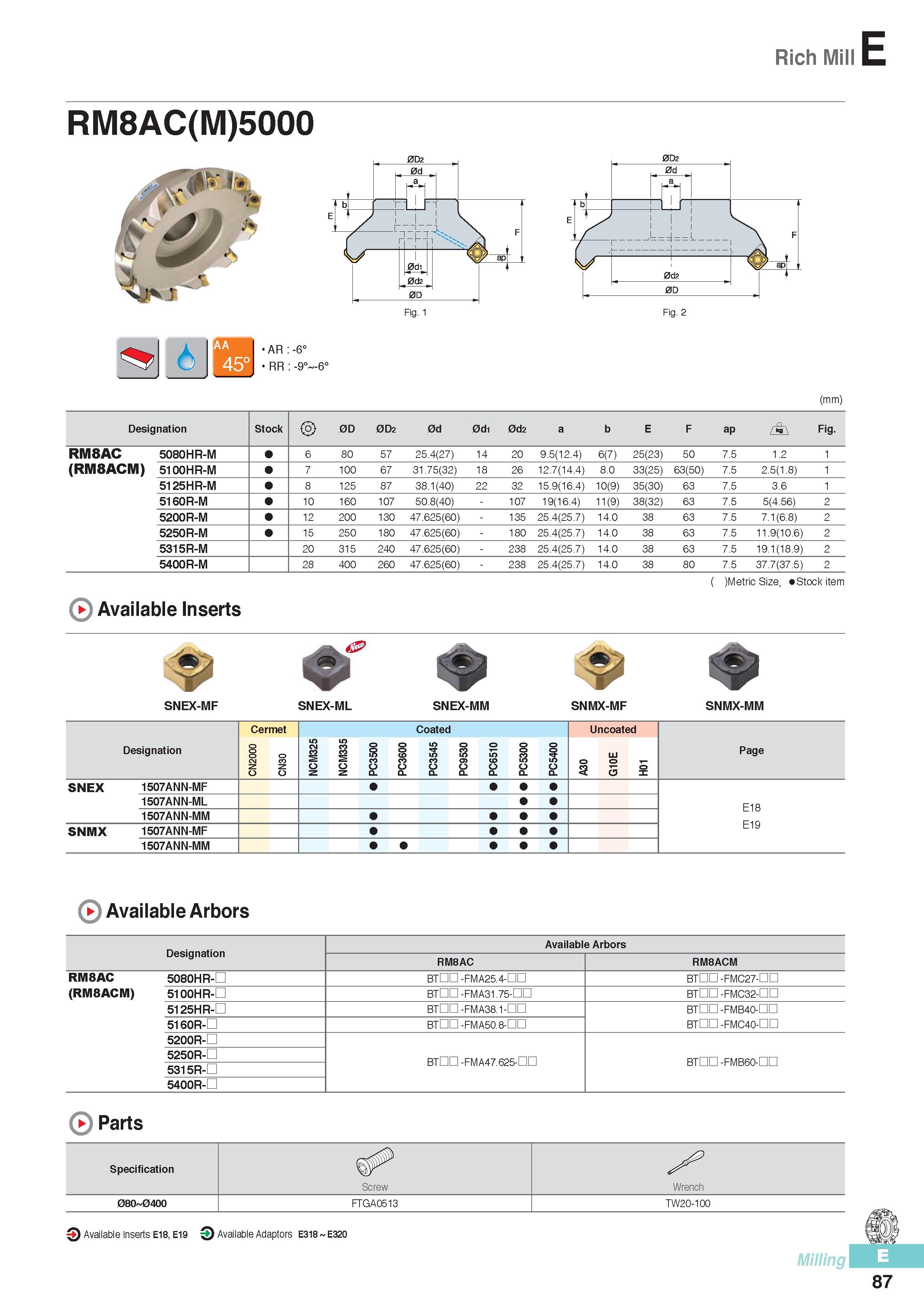

Rich Mill E RM8AC(M)5000 (mm) Designation Stock 0D 0D2 0d 0di 0d2 a b E F ap Fig. RM8AC 5080HR-M 6 80 57 25.4(27) 14 20 9.5(12.4) 6(7) 25(23) 50 7.5 1.2 1 (RM8ACM) 5100HR-M 7 100 67 31.75(32) 18 26 12.7(14.4) 8.0 33(25) 63(50) 7.5 2.5(1.8) 1 5125HR-M 8 125 87 38.1(40) 22 32 15.9(16.4) 10(9) 35(30) 63 7.5 3.6 1 5160R-M 10 160 107 50.8(40) - 107 19(16.4) 11(9) 38(32) 63 7.5 5(4.56) 2 5200R-M 12 200 130 47.625(60) - 1 35 25.4(25.7) 1 4.0 38 63 7.5 7.1 (6.8) 2 5250R-M 15 250 180 47.625(60) - 1 80 25.4(25.7) 1 4.0 38 63 7.5 11.9(10.6) 2 5315R-M 20 315 240 47.625(60) - 238 25.4(25.7) 1 4.0 38 63 7.5 19.1(18.9) 2 5400R-M 28 400 260 47.625(60) - 238 25.4(25.7) 14.0 38 80 7.5 37.7(37.5) 2 ( )Metric Size, Stock item 0 Available Inserts SNEX-MF SNEX-ML SNEX-MM SNMX-MF SNMX-MM Cermet Coated Uncoated Designation CN2000 CN30 NCM325 NCM335 PC3500 PC3600 PC3545 PC9530 PC6510 PC5300 PC5400 A30 G10E H01 Page SNEX 1507ANN-MF E18 E19 1507ANN-ML 1507ANN-MM SNMX 1507ANN-MF 1507ANN-MM 0 Available Arbors Designation Available Arbors RM8AC RM8ACM RM8AC 5080HR-D BTDD -FMA25.4-DQ BTDD -FMC27-DQ (RM8ACM) 5100HR-D BTDD -FMA31.75-HO BTDD -FMC32-DQ 5125HR-D BTDD -FMA38.1-HO BTDD -FMB40-DQ BTDD -FMC40-DQ 5160R-D BTDD -FMA50.8-DQ 5200R-D BTDD -FMA47.625-DQ BTDD -FMB60-DC 5250R-D 5315R-D 5400R-D 0 Parts Specification Screw Wrench 080 0400 FTGA0513 TW20-100 3 Available Inserts E18, E19 3 Available Adaptors E318 E320 \gpl 87
