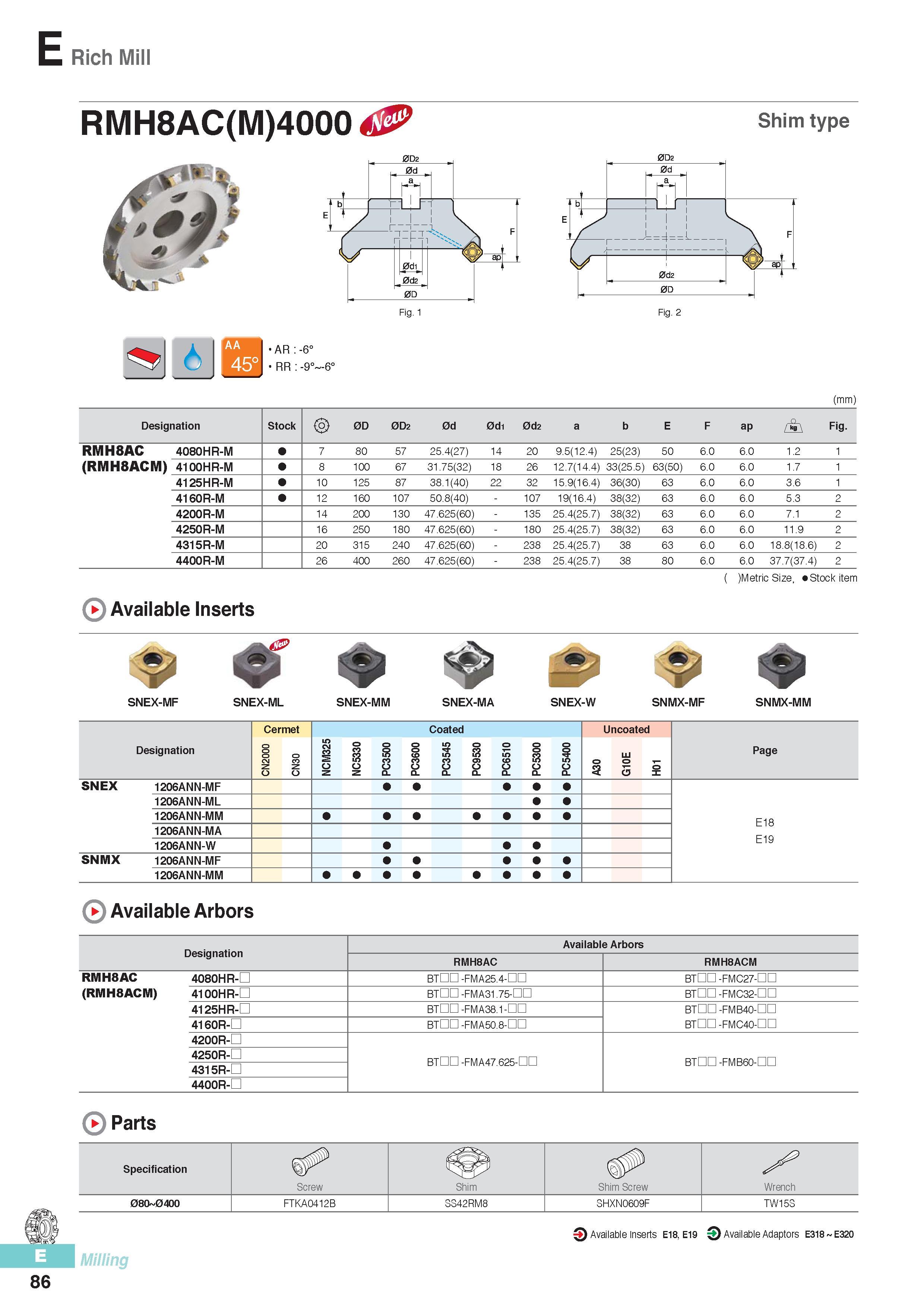

E Rich Mill RMH8AC(M)4000 & Shim type AR:-6° RR -9° -6° (mm) Designation Stock 0D 0D2 0d 0di 0d2 a b E F ap f+\ Fig. RMH8AC 4080HR-M 7 80 57 25.4(27) 14 20 9.5(12.4) 25(23) 50 6.0 6.0 1.2 1 (RMH8ACM) 4100HR-M 8 100 67 31.75(32) 18 26 12.7(14.4) 33(25.5) 63(50) 6.0 6.0 1.7 1 4125HR-M 10 125 87 38.1(40) 22 32 15.9(16.4) 36(30) 63 6.0 6.0 3.6 1 4160R-M 12 160 107 50.8(40) - 107 19(16.4) 38(32) 63 6.0 6.0 5.3 2 4200R-M 14 200 130 47.625(60) - 135 25.4(25.7) 38(32) 63 6.0 6.0 7.1 2 4250R-M 16 250 180 47.625(60) - 180 25.4(25.7) 38(32) 63 6.0 6.0 11.9 2 4315R-M 20 315 240 47.625(60) - 238 25.4(25.7) 38 63 6.0 6.0 18.8(18.6) 2 4400R-M 26 400 260 47.625(60) - 238 25.4(25.7) 38 80 6.0 6.0 37.7(37.4) 2 ( )Metric Size, Stock item ( Available Inserts SNEX-MF SNEX-ML SNEX-MM SNEX-MA SNEX-W SNMX-MF SNMX-MM Designation Cermet Coated Uncoated Page CN2000 CN30 NCM325 NC5330 PC3500 PC3600 PC3545 PC9530 PC6510 PC5300 PC5400 A30 G10E H01 SNEX 1206ANN-MF 1206ANN-ML 1206ANN-MM E18 1206ANN-MA 1206ANN-W SNMX 1206ANN-MF 1206ANN-MM ( Available Arbors Designation Available Arbors RMH8AC RMH8ACM RMH8AC 4080HR-D BTHO -FMA25.4-HO BTDQ -FMC27-DQ (RMH8ACM) 4100HR- BTDQ -FMA31.75-DD BTDQ -FMC32-DQ 4125HR-D BTDQ -FMA38.1-DQ BTDQ -FMB40-HO BTQQ -FMC40-DQ 4160R-D BTDQ -FMA50.8-HO 4200R-D BTDQ -FMA47.625-DQ BTHO -FMB60-DC 4250R-D 4315R-D 4400R-D ( Parts Specification S’ Screw Shim Shim Screw Wrench 080 0400 FTKA0412B SS42RM8 SHXN0609F TW15S O Available Inserts E18, E19 O Available Adaptors E318 E320 Milling 86
