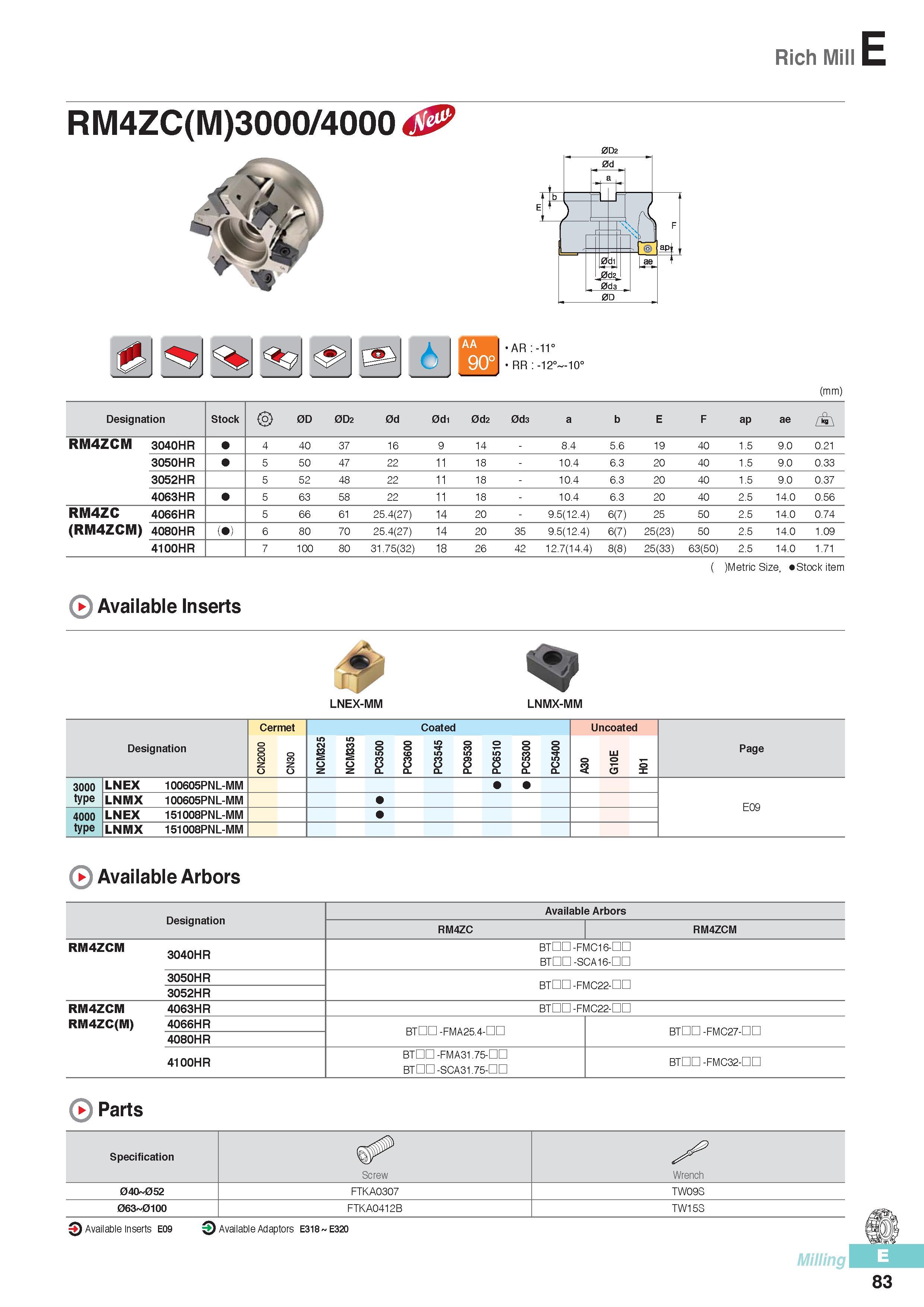

Rich Mill E RM4ZC(M)3000/4000 & 0D2 AR:-11° RR -12° 10° (mm) Designation Stock IS) 0D 0D2 0d 0di 0d2 0d3 a b E F ap ae RM4ZCM 3040HR 4 40 37 16 9 14 - 8.4 5.6 19 40 1.5 9.0 0.21 3050HR 5 50 47 22 11 18 - 10.4 6.3 20 40 1.5 9.0 0.33 3052HR 5 52 48 22 11 18 - 10.4 6.3 20 40 1.5 9.0 0.37 4063HR 5 63 58 22 11 18 - 10.4 6.3 20 40 2.5 14.0 0.56 RM4ZC 4066HR 5 66 61 25.4(27) 14 20 - 9.5(12.4) 6(7) 25 50 2.5 14.0 0.74 (RM4ZCM) 4080HR ( ) 6 80 70 25.4(27) 14 20 35 9.5(12.4) 6(7) 25(23) 50 2.5 14.0 1.09 4100HR 7 100 80 31.75(32) 18 26 42 12.7(14.4) 8(8) 25(33) 63(50) 2.5 14.0 1.71 ( )Metric Size, Stock item >) Available Inserts LNEX-MM LNMX-MM Cermet Coated Uncoated Designation CN2000 CN30 NCM325 NCM335 PC3500 PC3600 PC3545 PC9530 PC6510 PC5300 PC5400 A30 G10E H01 Page 3000 type LNEX 100605PNL-MM E09 LNMX 100605PNL-MM 4000 type LNEX 151008PNL-MM LNMX 151008PNL-MM 0 Available Arbors Designation Available Arbors RM4ZC RM4ZCM RM4ZCM 3040HR BTHO-FMC16-HO BTDD -SCA16-DD 3050HR BTQQ-FMC22-QC 3052HR RM4ZCM 4063HR BTHO-FMC22-HO RM4ZC(M) 4066HR BTDQ -FMA25.4-HO BTDQ -FMC27-QC 4080HR 4100HR BTHO -FMA31.75-DD BTDQ -SCA31.75-DQ BTDD -FMC32-DC Parts Specification Screw Wrench 040 052 FTKA0307 TW09S 063 0100 FTKA0412B TW15S 3 Available Inserts E09 O Available Adaptors E318 E320 Milling 83
