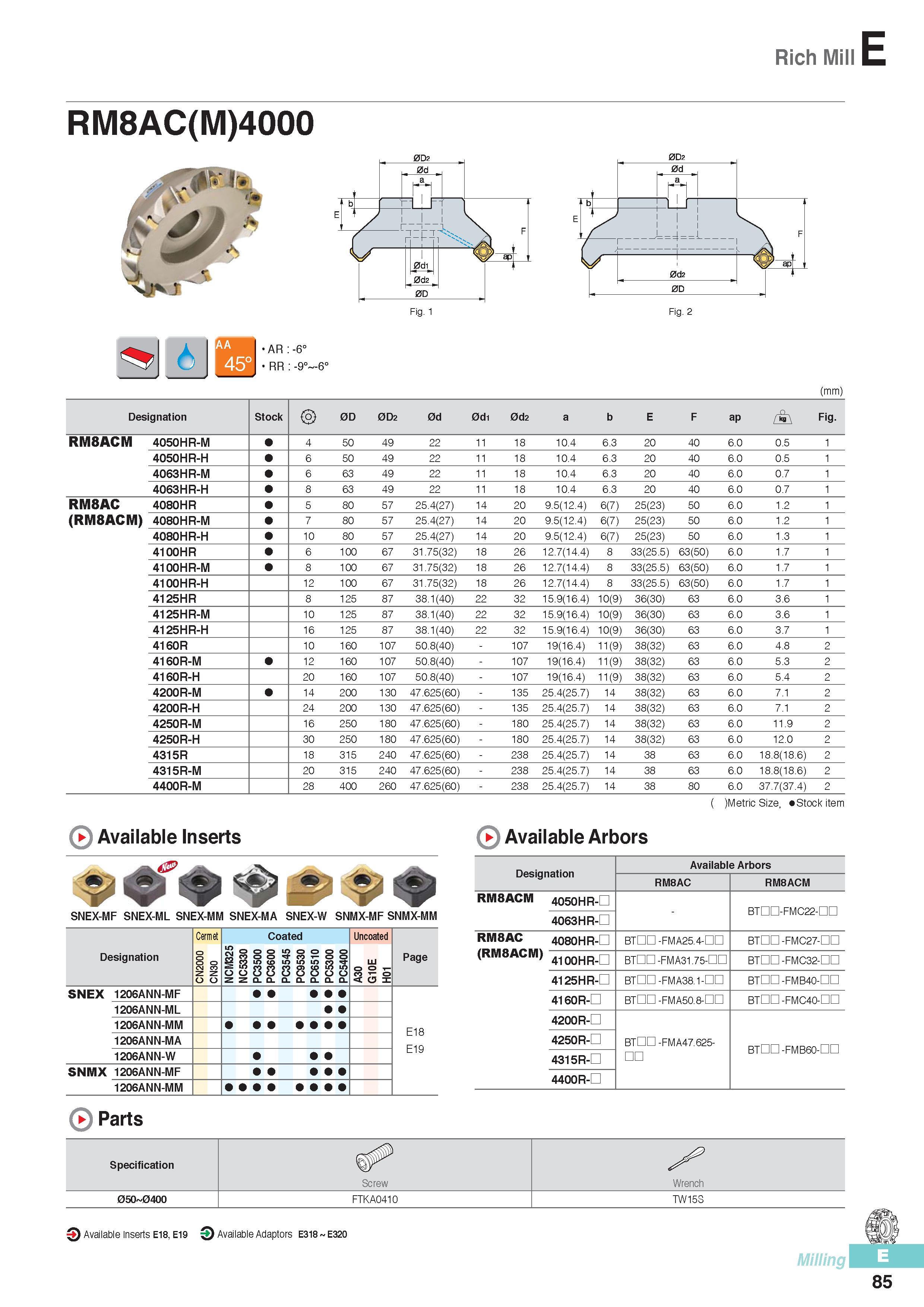

Rich Mill E RM8AC(M)4000 AR:-6° RR -9° -6° (mm) Designation Stock 0D 0D2 0d 0di 0d2 a b E F ap Fig. RM8ACM 4050HR-M 4 50 49 22 11 18 10.4 6.3 20 40 6.0 0.5 1 4050HR-H 6 50 49 22 11 18 10.4 6.3 20 40 6.0 0.5 1 4063HR-M 6 63 49 22 11 18 10.4 6.3 20 40 6.0 0.7 1 4063HR-H 8 63 49 22 11 18 10.4 6.3 20 40 6.0 0.7 1 RM8AC 4080HR 5 80 57 25.4(27) 14 20 9.5(12.4) 6(7) 25(23) 50 6.0 1.2 1 (RM8ACM) 4080HR-M 7 80 57 25.4(27) 14 20 9.5(12.4) 6(7) 25(23) 50 6.0 1.2 1 4080HR-H 10 80 57 25.4(27) 14 20 9.5(12.4) 6(7) 25(23) 50 6.0 1.3 1 4100HR 6 100 67 31.75(32) 18 26 12.7(14.4) 8 33(25.5) 63(50) 6.0 1.7 1 4100HR-M 8 100 67 31.75(32) 18 26 12.7(14.4) 8 33(25.5) 63(50) 6.0 1.7 1 4100HR-H 12 100 67 31.75(32) 18 26 12.7(14.4) 8 33(25.5) 63(50) 6.0 1.7 1 4125HR 8 125 87 38.1(40) 22 32 15.9(16.4) 10(9) 36(30) 63 6.0 3.6 1 4125HR-M 10 125 87 38.1(40) 22 32 15.9(16.4) 10(9) 36(30) 63 6.0 3.6 1 4125HR-H 16 125 87 38.1(40) 22 32 15.9(16.4) 10(9) 36(30) 63 6.0 3.7 1 4160R 10 160 107 50.8(40) - 107 19(16.4) 11(9) 38(32) 63 6.0 4.8 2 4160R-M 12 160 107 50.8(40) - 107 19(16.4) 11(9) 38(32) 63 6.0 5.3 2 4160R-H 20 160 107 50.8(40) - 107 19(16.4) 11(9) 38(32) 63 6.0 5.4 2 4200R-M 14 200 130 47.625(60) - 135 25.4(25.7) 14 38(32) 63 6.0 7.1 2 4200R-H 24 200 130 47.625(60) - 135 25.4(25.7) 14 38(32) 63 6.0 7.1 2 4250R-M 16 250 180 47.625(60) - 180 25.4(25.7) 14 38(32) 63 6.0 11.9 2 4250R-H 30 250 180 47.625(60) - 180 25.4(25.7) 14 38(32) 63 6.0 12.0 2 4315R 18 315 240 47.625(60) - 238 25.4(25.7) 14 38 63 6.0 18.8(18.6) 2 4315R-M 20 315 240 47.625(60) - 238 25.4(25.7) 14 38 63 6.0 18.8(18.6) 2 4400R-M 28 400 260 47.625(60) - 238 25.4(25.7) 14 38 80 6.0 37.7(37.4) 2 ( )Metric Size, Stock item >) Available Inserts Available Arbors SNEX-MF SNEX-ML SNEX-MM SNEX-MA SNEX-W SNMX-MF SNMX-MM Cermet Coated Uncoated Designation CN2000 0 3 N C NCM325 NC5330 PC3500 PC3600 PC3545 PC9530 PC6510 PC5300 PC5400 A30 G10E H01 Page SNEX 1206ANN-MF E18 E19 1206ANN-ML 1206ANN-MM 1206ANN-MA 1206ANN-W SNMX 1206ANN-MF 1206ANN-MM Designation Available Arbors RM8AC RM8ACM RM8ACM 4050HR-D BTHO-FMC22-HO 4063HR-D RM8AC 4080HR-D BTDD -FMA25.4-DD BTDD-FMC27-HO (RM8ACM) 4100HR-Q BTDD -FMA31.75-HO BTDD-FMC32-HO 4125HR-D BTDD -FMA38.1-HO BTDD-FMB40-HO 4160R-D BTDD -FMA50.8-DQ BTDD-FMC40-DQ 4200R-D BTDD -FMA47.625- BTDD-FMB60-QC 4250R-D 4315R-D 4400R-D Parts Specification Screw S’ Wrench 050 0400 FTKA0410 TW15S 3 Available Inserts E18, E19 3 Available Adaptors E318 E320 Milling 85
