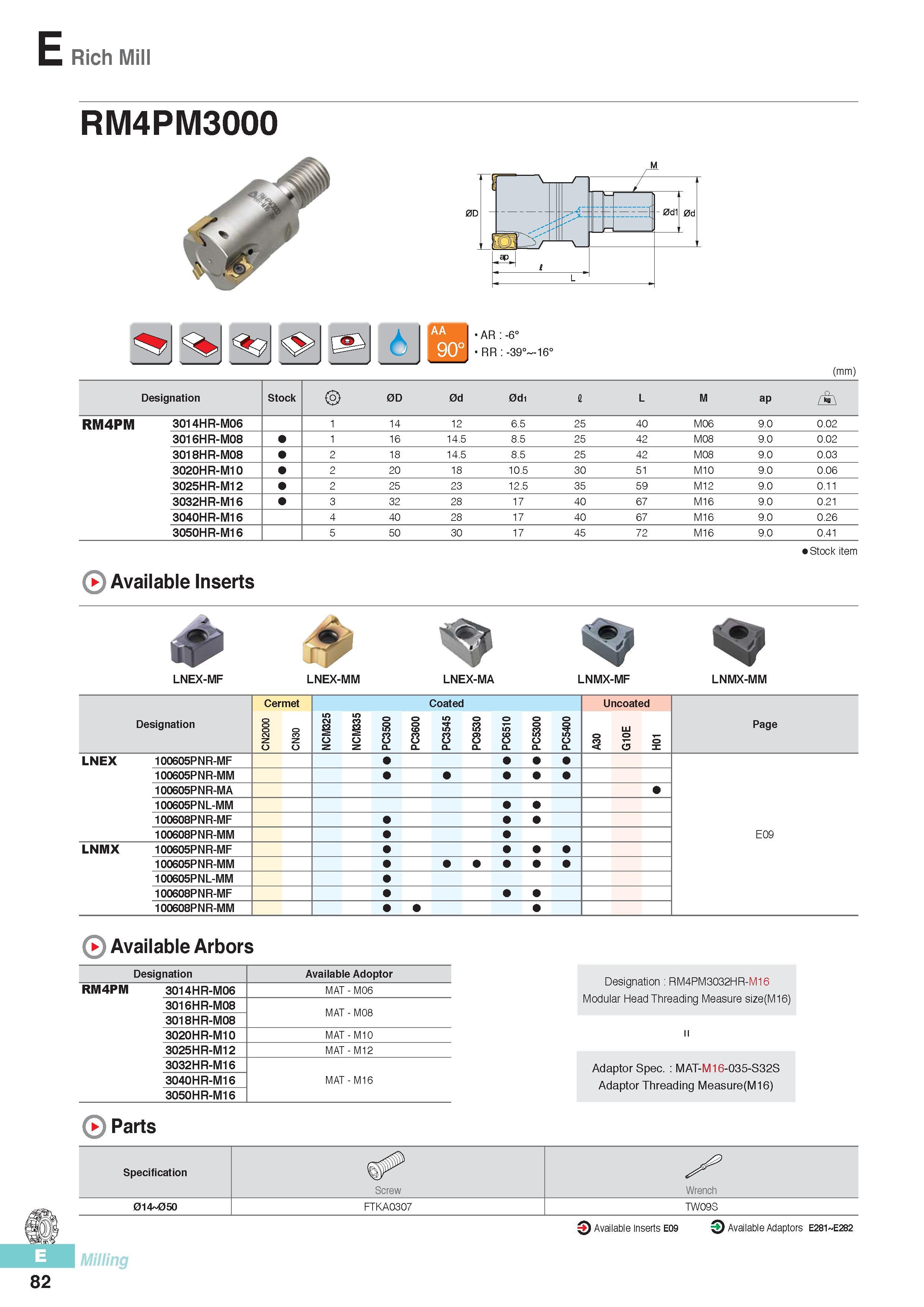

E Rich Mill I AR -6° I RR -39° -16° (mm) Designation Stock 0D 0d 0di I L M ap RM4PM 3014HR-M06 14 12 6.5 25 40 M06 9.0 0.02 3016HR-M08 16 14.5 8.5 25 42 M08 9.0 0.02 3018HR-M08 2 18 14.5 8.5 25 42 M08 9.0 0.03 3020HR-M10 2 20 18 10.5 30 51 M10 9.0 0.06 3025HR-M12 2 25 23 12.5 35 59 M12 9.0 0.11 3032HR-M16 3 32 28 17 40 67 M16 9.0 0.21 3040HR-M16 4 40 28 17 40 67 M16 9.0 0.26 3050HR-M16 5 50 30 17 45 72 M16 9.0 0.41 Available Inserts Stock item LNEX-MF LNEX-MM LNEX-MA LNMX-MF LNMX-MM Designation Cermet Coated Uncoated Page CN2000 CN30 NCM325 NCM335 PC3500 PC3600 PC3545 PC9530 PC6510 PC5300 PC5400 A30 G10E H01 LNEX 100605PNR-MF 100605PNR-MM 100605PNR-MA 100605PNL-MM 100608PNR-MF 100608PNR-MM E09 LNMX 100605PNR-MF 100605PNR-MM 100605PNL-MM 100608PNR-MF 100608PNR-MM Available Arbors Designation Available Adoptor RM4PM 3014HR-M06 MAT - M06 3016HR-M08 MAT - M08 3018HR-M08 3020HR-M10 MAT - M10 3025HR-M12 MAT - M12 3032HR-M16 3040HR-M16 MAT - M16 3050HR-M16 Parts Designation RM4PM3032HR-M16 Modular Head Threading Measure size(M16) Adaptor Spec. MAT-M16-035-S32S Adaptor Threading Measure(M16) Specification Screw S’ Wrench 014 050 FTKA0307 TW09S Milling 82 3 Available Inserts E09 3 Available Adaptors E281 E282
