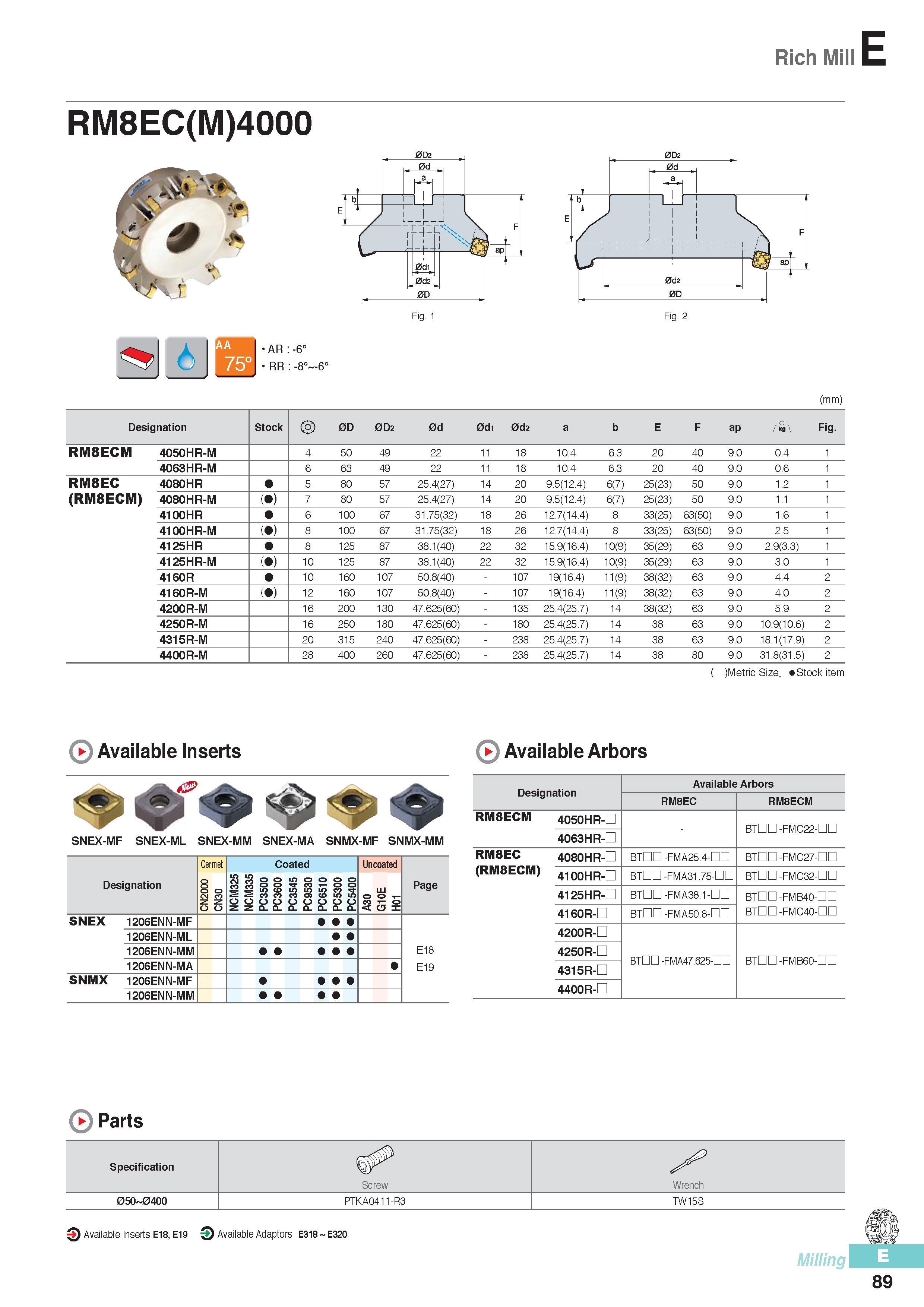

Rich Mill E RM8EC(M)4000 Fig. 1 AR:-6° RR -8° -6° (mm) Designation Stock CO) 0D 0D2 0d 0di 0d2 a b E F ap Fig. RM8ECM 4050HR-M 4 50 49 22 11 18 10.4 6.3 20 40 9.0 0.4 1 4063HR-M 6 63 49 22 11 18 10.4 6.3 20 40 9.0 0.6 1 RM8EC 4080HR 5 80 57 25.4(27) 14 20 9.5(12.4) 6(7) 25(23) 50 9.0 1.2 1 (RM8ECM) 4080HR-M ( ) 7 80 57 25.4(27) 14 20 9.5(12.4) 6(7) 25(23) 50 9.0 1.1 1 4100HR 6 100 67 31.75(32) 18 26 12.7(14.4) 8 33(25) 63(50) 9.0 1.6 1 4100HR-M ( ) 8 100 67 31.75(32) 18 26 12.7(14.4) 8 33(25) 63(50) 9.0 2.5 1 4125HR 8 125 87 38.1(40) 22 32 15.9(16.4) 10(9) 35(29) 63 9.0 2.9(3.3) 1 4125HR-M ( ) 10 125 87 38.1(40) 22 32 15.9(16.4) 10(9) 35(29) 63 9.0 3.0 1 4160R 10 160 107 50.8(40) 107 19(16.4) 11(9) 38(32) 63 9.0 4.4 2 4160R-M ( ) 12 160 107 50.8(40) 107 19(16.4) 11(9) 38(32) 63 9.0 4.0 2 4200R-M 16 200 130 47.625(60) 135 25.4(25.7) 14 38(32) 63 9.0 5.9 2 4250R-M 16 250 180 47.625(60) 180 25.4(25.7) 14 38 63 9.0 10.9(10.6) 2 4315R-M 20 315 240 47.625(60) 238 25.4(25.7) 14 38 63 9.0 18.1(17.9) 2 4400R-M 28 400 260 47.625(60) 238 25.4(25.7) 14 38 80 9.0 31.8(31.5) 2 ( )Metric Size, Stock item 0 Available Inserts SNEX-MF SNEX-ML SNEX-MM SNEX-MA SNMX-MF SNMX-MM Cermet Coated Uncoated Designation CN2000 0 3 N C NCM325 rnOO m o mOO COi-OO Smo mmm co s c mm CCCCCCCC znnnnnnn A30 G10E H01 Page SNEX 1206ENN-MF 1206ENN-ML 1206ENN-MM E18 1206ENN-MA E19 SNMX 1206ENN-MF 1206ENN-MM 0 Available Arbors Designation Available Arbors RM8EC RM8ECM RM8ECM 4050HR-D BTDD-FMC22-DC 4063HR-D RM8EC 4080HR-D BTDD -FMA25.4-HO BTDD-FMC27-HO (RM8ECM) 4100HR-D BTDD -FMA31J5-HO BTDD-FMC32-HO 4125HR-D BTDD -FMA38.1-HO BTDD-FMB40-DQ BTDD-FMC40-DC 4160R-D BTDD -FMA50.8-DQ 4200R-D BTDD -FMA47.625-DD BTDD-FMB60-DC 4250R-D 4315R-D 4400R-D ( Parts Specification S’ Screw Wrench 050 0400 PTKA0411-R3 TW15S 3 Available Inserts E18, E19 3 Available Adaptors E318 E320 Milling 89
