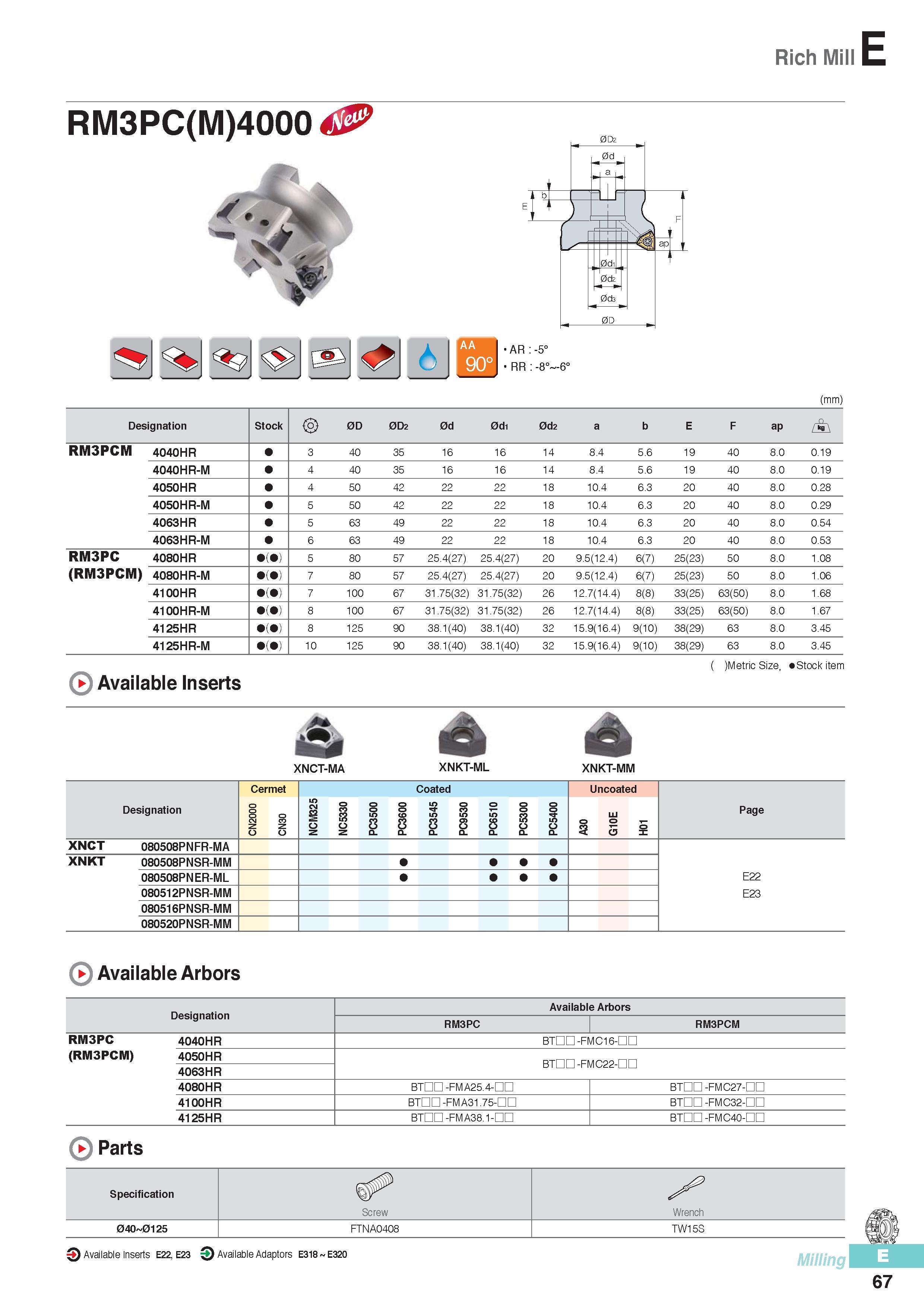

Rich Mill E RM3PC(M)4000 & AR:-5° RR -8° -6° (mm) Designation Stock 0D 0D2 0d 0di 0d2 a b E F ap A RM3PCM 4040HR 3 40 35 16 16 14 8.4 5.6 19 40 8.0 0.19 4040HR-M 4 40 35 16 16 14 8.4 5.6 19 40 8.0 0.19 4050HR 4 50 42 22 22 18 10.4 6.3 20 40 8.0 0.28 4050HR-M 5 50 42 22 22 18 10.4 6.3 20 40 8.0 0.29 4063HR 5 63 49 22 22 18 10.4 6.3 20 40 8.0 0.54 4063HR-M 6 63 49 22 22 18 10.4 6.3 20 40 8.0 0.53 RM3PC 4080HR ( ) 5 80 57 25.4(27) 25.4(27) 20 9.5(12.4) 6(7) 25(23) 50 8.0 1.08 (RM3PCM) 4080HR-M ( ) 7 80 57 25.4(27) 25.4(27) 20 9.5(12.4) 6(7) 25(23) 50 8.0 1.06 4100HR ( ) 7 100 67 31.75(32) 31.75(32) 26 12.7(14.4) 8(8) 33(25) 63(50) 8.0 1.68 4100HR-M ( ) 8 100 67 31.75(32) 31.75(32) 26 12.7(14.4) 8(8) 33(25) 63(50) 8.0 1.67 4125HR ( ) 8 125 90 38.1(40) 38.1(40) 32 15.9(16.4) 9(10) 38(29) 63 8.0 3.45 4125HR-M ( ) 10 125 90 38.1(40) 38.1(40) 32 15.9(16.4) 9(10) 38(29) 63 8.0 3.45 ( Available Inserts ( )Metric Size, Stock item & XNCT-MA XNKT-ML XNKT-MM Designation Cermet Coated Uncoated Page CN2000 CN30 NCM325 NC5330 PC3500 PC3600 PC3545 PC9530 PC6510 PC5300 PC5400 A30 G10E H01 XNCT 080508PNFR-MA XNKT 080508PNSR-MM 080508PNER-ML E22 080512PNSR-MM E23 080516PNSR-MM 080520PNSR-MM AA 90° 0 Available Arbors Designation Available Arbors RM3PC RM3PCM RM3PC 4040HR BTDD -FMC16-DD (RM3PCM) 4050HR BTDD -FMC22-DC 4063HR 4080HR BTDD -FMA25.4-DD BTDD -FMC27-HO 4100HR BTDD -FMA31.75-DD BTDD -FMC32-HO 4125HR BTDD -FMA38.1-HO BTDD -FMC40-DD 0 Parts Specification Screw Wrench 040 0125 FTNA0408 TW15S 0 Available Inserts E22, E23 O Available Adaptors E318 E320
