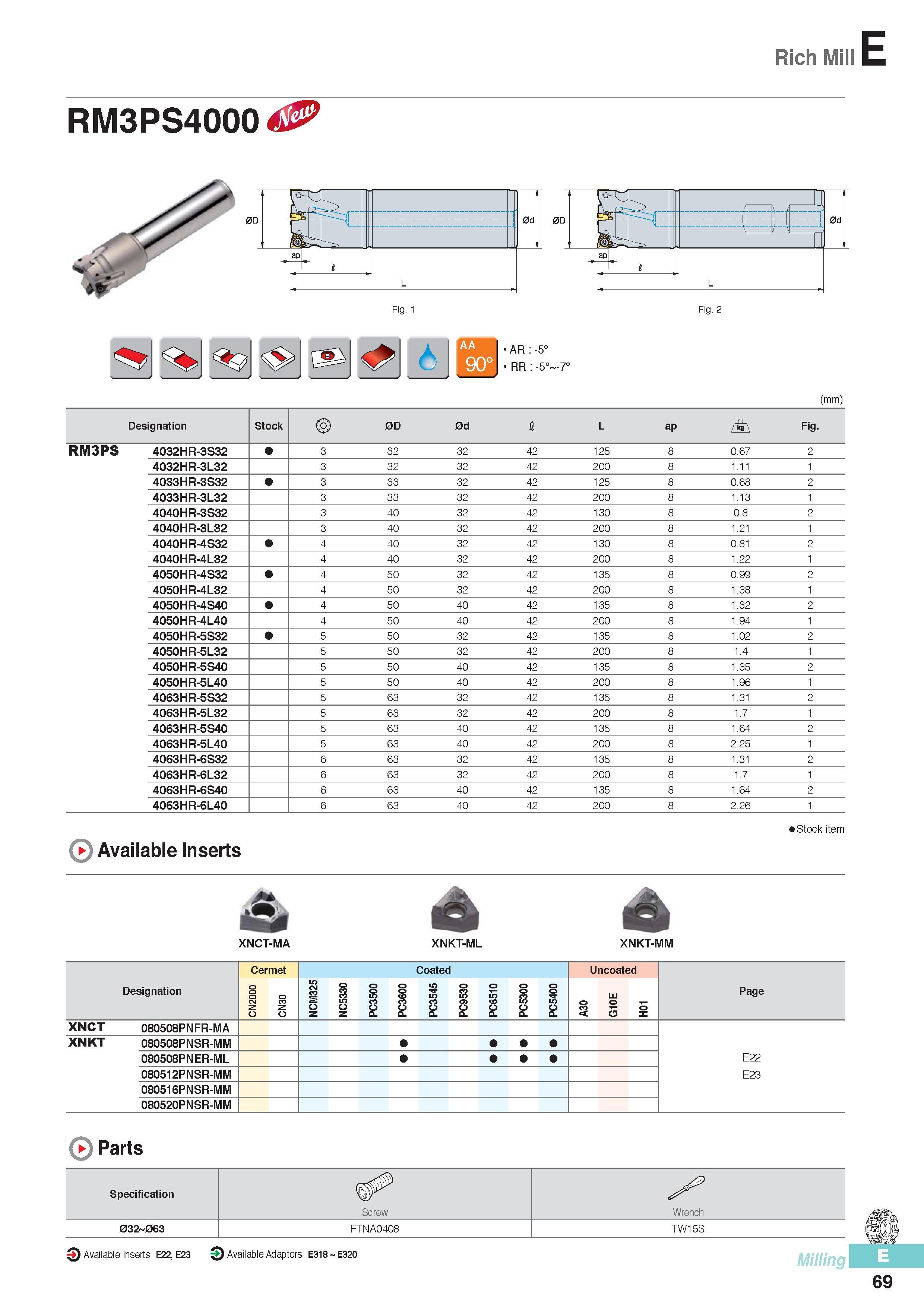

Rich Mill E Fig. 1 Fig. 2 AR:-5° RR -5° -7° (mm) Designation Stock 0D 0d I L ap Fig. RM3PS 4032HR-3S32 3 32 32 42 125 8 0.67 2 4032HR-3L32 3 32 32 42 200 8 1.11 1 4033HR-3S32 3 33 32 42 125 8 0.68 2 4033HR-3L32 3 33 32 42 200 8 1.13 1 4040HR-3S32 3 40 32 42 130 8 0.8 2 4040HR-3L32 3 40 32 42 200 8 1.21 1 4040HR-4S32 4 40 32 42 130 8 0.81 2 4040HR-4L32 4 40 32 42 200 8 1.22 1 4050HR-4S32 4 50 32 42 135 8 0.99 2 4050HR-4L32 4 50 32 42 200 8 1.38 1 4050HR-4S40 4 50 40 42 135 8 1.32 2 4050HR-4L40 4 50 40 42 200 8 1.94 1 4050HR-5S32 5 50 32 42 135 8 1.02 2 4050HR-5L32 5 50 32 42 200 8 1.4 1 4050HR-5S40 5 50 40 42 135 8 1.35 2 4050HR-5L40 5 50 40 42 200 8 1.96 1 4063HR-5S32 5 63 32 42 135 8 1.31 2 4063HR-5L32 5 63 32 42 200 8 1.7 1 4063HR-5S40 5 63 40 42 135 8 1.64 2 4063HR-5L40 5 63 40 42 200 8 2.25 1 4063HR-6S32 6 63 32 42 135 8 1.31 2 4063HR-6L32 6 63 32 42 200 8 1.7 1 4063HR-6S40 6 63 40 42 135 8 1.64 2 4063HR-6L40 6 63 40 42 200 8 2.26 1 ( Available Inserts Stock item XNCT-MA XNKT-ML XNKT-MM Designation Cermet Coated Uncoated Page 0 0 O
