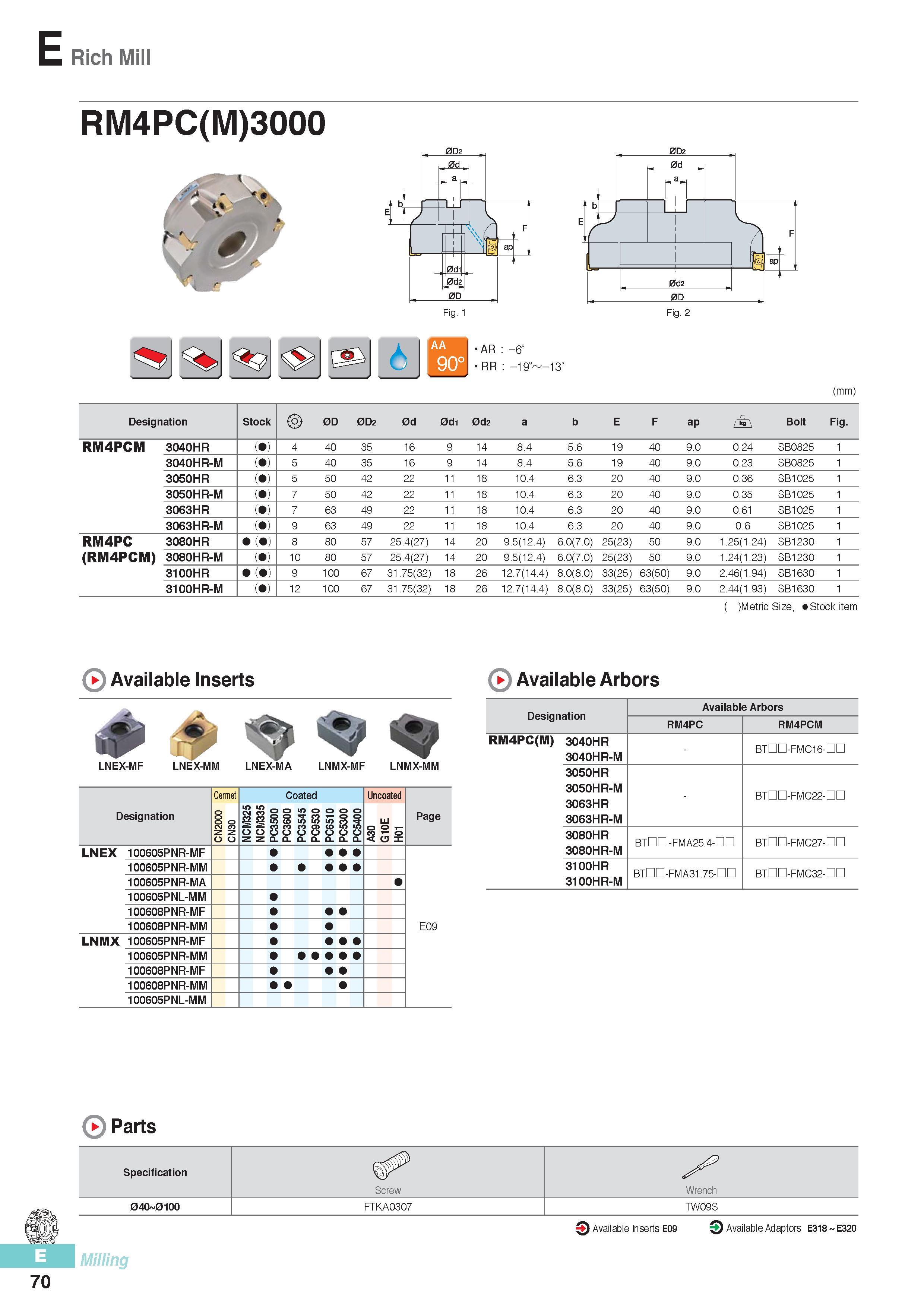

E Rich Mill RM4PC(M)3000 AR -6° RR -19° -13° (mm) Designation Stock 0D 0D2 0d 0di 0d2 a b E F ap Bolt Fig. RM4PCM 3040HR ( ) 4 40 35 16 9 14 8.4 5.6 19 40 9.0 0.24 SB0825 1 3040HR-M ( ) 5 40 35 16 9 14 8.4 5.6 19 40 9.0 0.23 SB0825 1 3050HR ( ) 5 50 42 22 11 18 10.4 6.3 20 40 9.0 0.36 SB1025 1 3050HR-M ( ) 7 50 42 22 11 18 10.4 6.3 20 40 9.0 0.35 SB1025 1 3063HR ( ) 7 63 49 22 11 18 10.4 6.3 20 40 9.0 0.61 SB1025 1 3063HR-M ( ) 9 63 49 22 11 18 10.4 6.3 20 40 9.0 0.6 SB1025 1 RM4PC 3080HR ( ) 8 80 57 25.4(27) 14 20 9.5(12.4) 6.0(7.0) 25(23) 50 9.0 1.25(1.24) SB1230 1 (RM4PCM) 3080HR-M ( ) 10 80 57 25.4(27) 14 20 9.5(12.4) 6.0(7.0) 25(23) 50 9.0 1.24(1.23) SB1230 1 3100HR ( ) 9 100 67 31.75(32) 18 26 12.7(14.4) 8.0(8.0) 33(25) 63(50) 9.0 2.46(1.94) SB1630 1 3100HR-M ( ) 12 100 67 31.75(32) 18 26 12.7(14.4) 8.0(8.0) 33(25) 63(50) 9.0 2.44(1.93) SB1630 1 ( )Metric Size, Stock item Available Inserts >) Available Arbors LNEX-MF LNEX-MM LNEX-MA LNMX-MF LNMX-MM Cermet Coated Uncoated Designation CN2000 0 3 N C NCM325 NCM335 PC3500 PC3600 PC3545 PC9530 PC6510 PC5300 PC5400 A30 G10E H01 Page LNEX 100605PNR-MF 100605PNR-MM 100605PNR-MA 100605PNL-MM 100608PNR-MF 100608PNR-MM E09 LNMX 100605PNR-MF 100605PNR-MM 100608PNR-MF 100608PNR-MM 100605PNL-MM Designation Available Arbors RM4PC RM4PCM RM4PC(M) 3040HR 3040HR-M BTDD-FMC16-DC 3050HR 3050HR-M 3063HR 3063HR-M BTDD-FMC22-DC 3080HR 3080HR-M BTDD-FMA25.4-DQ BTDD-FMC27-DC 3100HR 3100HR-M BTHO-FMA31.75-HO BTDD-FMC32-DC Specification Screw S' Wrench 040 0100 FTKA0307 TW09S 70 3 Available Inserts E09 3 Available Adaptors E318 E320 Milling
