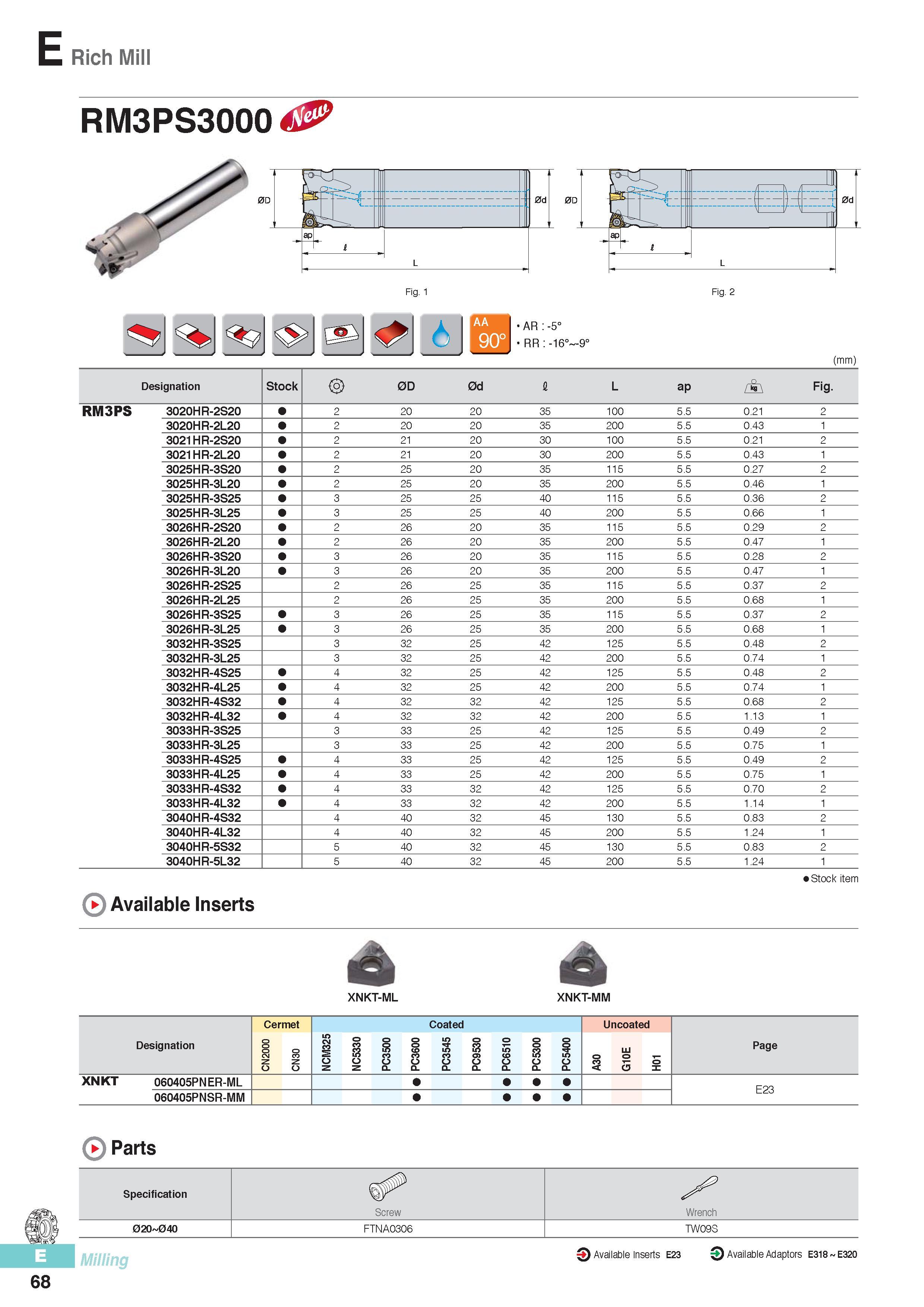

E Rich Mill RM3PS3000 Designation Stock 0D 0d I L ap dL Fig. RM3PS 3020HR-2S20 2 20 20 35 100 5.5 0.21 2 3020HR-2L20 2 20 20 35 200 5.5 0.43 1 3021HR-2S20 2 21 20 30 100 5.5 0.21 2 3021HR-2L20 2 21 20 30 200 5.5 0.43 1 3025HR-3S20 2 25 20 35 115 5.5 0.27 2 3025HR-3L20 2 25 20 35 200 5.5 0.46 1 3025HR-3S25 3 25 25 40 115 5.5 0.36 2 3025HR-3L25 3 25 25 40 200 5.5 0.66 1 3026HR-2S20 2 26 20 35 115 5.5 0.29 2 3026HR-2L20 2 26 20 35 200 5.5 0.47 1 3026HR-3S20 3 26 20 35 115 5.5 0.28 2 3026HR-3L20 3 26 20 35 200 5.5 0.47 1 3026HR-2S25 2 26 25 35 115 5.5 0.37 2 3026HR-2L25 2 26 25 35 200 5.5 0.68 1 3026HR-3S25 3 26 25 35 115 5.5 0.37 2 3026HR-3L25 3 26 25 35 200 5.5 0.68 1 3032HR-3S25 3 32 25 42 125 5.5 0.48 2 3032HR-3L25 3 32 25 42 200 5.5 0.74 1 3032HR-4S25 4 32 25 42 125 5.5 0.48 2 3032HR-4L25 4 32 25 42 200 5.5 0.74 1 3032HR-4S32 4 32 32 42 125 5.5 0.68 2 3032HR-4L32 4 32 32 42 200 5.5 1.13 1 3033HR-3S25 3 33 25 42 125 5.5 0.49 2 3033HR-3L25 3 33 25 42 200 5.5 0.75 1 3033HR-4S25 4 33 25 42 125 5.5 0.49 2 3033HR-4L25 4 33 25 42 200 5.5 0.75 1 3033HR-4S32 4 33 32 42 125 5.5 0.70 2 3033HR-4L32 4 33 32 42 200 5.5 1.14 1 3040HR-4S32 4 40 32 45 130 5.5 0.83 2 3040HR-4L32 4 40 32 45 200 5.5 1.24 1 3040HR-5S32 5 40 32 45 130 5.5 0.83 2 3040HR-5L32 5 40 32 45 200 5.5 1.24 1 Stock item 0 Available Inserts & XNKT-ML XNKT-MM Cermet Coated Uncoated Designation CN2000 CN30 NCM325 NC5330 PC3500 PC3600 PC3545 PC9530 PC6510 PC5300 PC5400 A30 G10E H01 Page XNKT 060405PNER-ML 060405PNSR-MM 0 Parts Specification Screw S’ Wrench 020 040 FTNA0306 TW09S Milling 0 Available Inserts E23 0 Available Adaptors E318 E320 68
