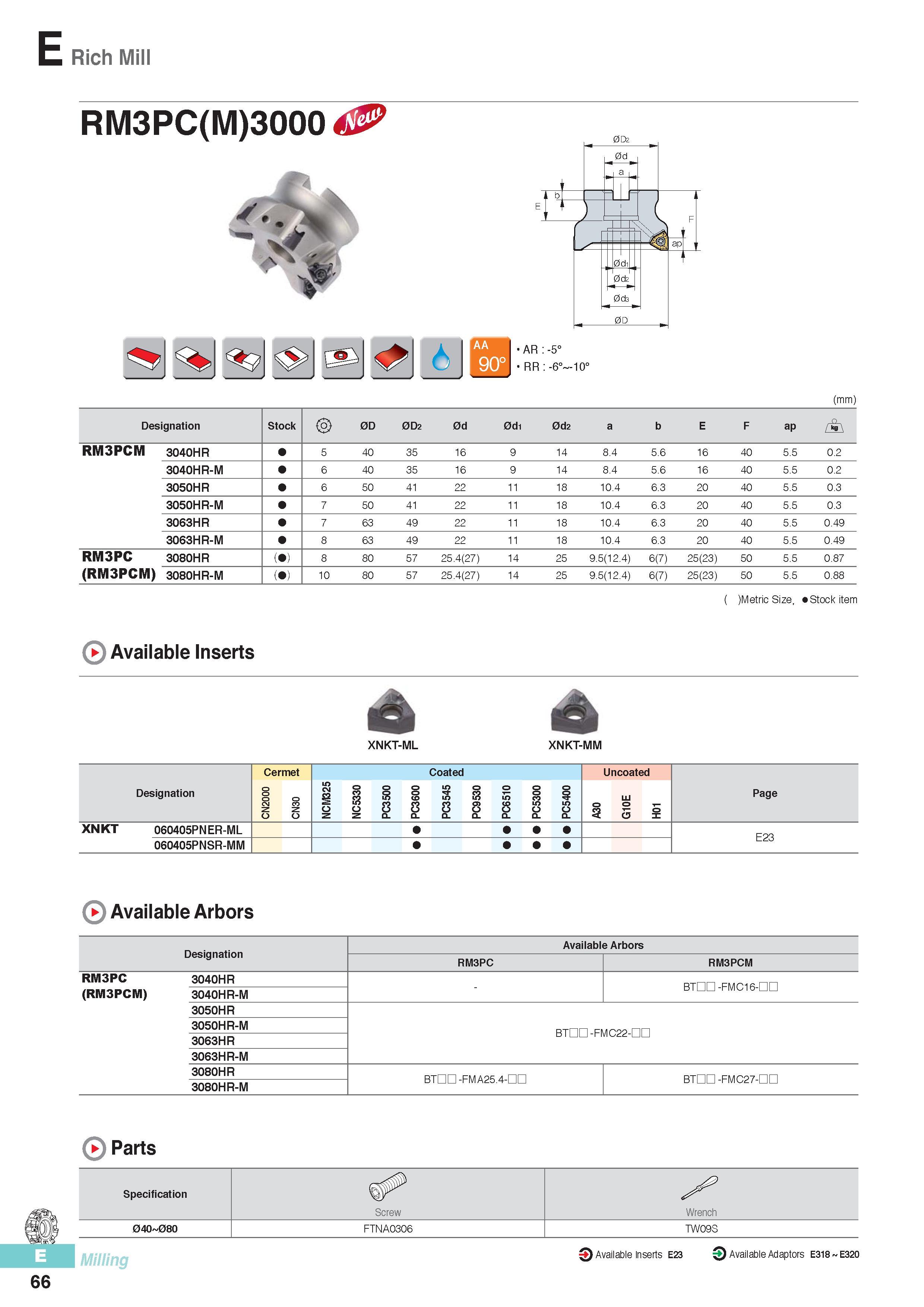

E Rich Mill RM3PC(M)3000 & V AR -5° RR -6° -10° (mm) Designation Stock 0D 0D2 0d 0di 0d2 a b E F ap RM3PCM 3040HR 5 40 35 16 9 14 8.4 5.6 16 40 5.5 0.2 3040HR-M 6 40 35 16 9 14 8.4 5.6 16 40 5.5 0.2 3050HR 6 50 41 22 11 18 10.4 6.3 20 40 5.5 0.3 3050HR-M 7 50 41 22 11 18 10.4 6.3 20 40 5.5 0.3 3063HR 7 63 49 22 11 18 10.4 6.3 20 40 5.5 0.49 3063HR-M 8 63 49 22 11 18 10.4 6.3 20 40 5.5 0.49 RM3PC 3080HR ( ) 8 80 57 25.4(27) 14 25 9.5(12.4) 6(7) 25(23) 50 5.5 0.87 (RM3PCM) 3080HR-M ( ) 10 80 57 25.4(27) 14 25 9.5(12.4) 6(7) 25(23) 50 5.5 0.88 ( )Metric Size, Stock item >) Available Inserts XNKT-ML XNKT-MM Cermet Coated Uncoated Designation CN2000 CN30 NCM325 NC5330 PC3500 PC3600 PC3545 PC9530 PC6510 PC5300 PC5400 UJ o O 3 a S Page XNKT 060405PNER-ML E23 060405PNSR-MM 0 Available Arbors Designation Available Arbors RM3PC RM3PCM RM3PC 3040HR - BTDD -FMC16-DH (RM3PCM) 3040HR-M 3050HR BTDD-FMC22-DC 3050HR-M 3063HR 3063HR-M 3080HR BTDD -FMA25.4-HO BTDD -FMC27-DC 3080HR-M Specification Screw S’ Wrench 040 080 FTNA0306 TW09S Milling 0 Available Inserts E23 0 Available Adaptors E318 E320 66
