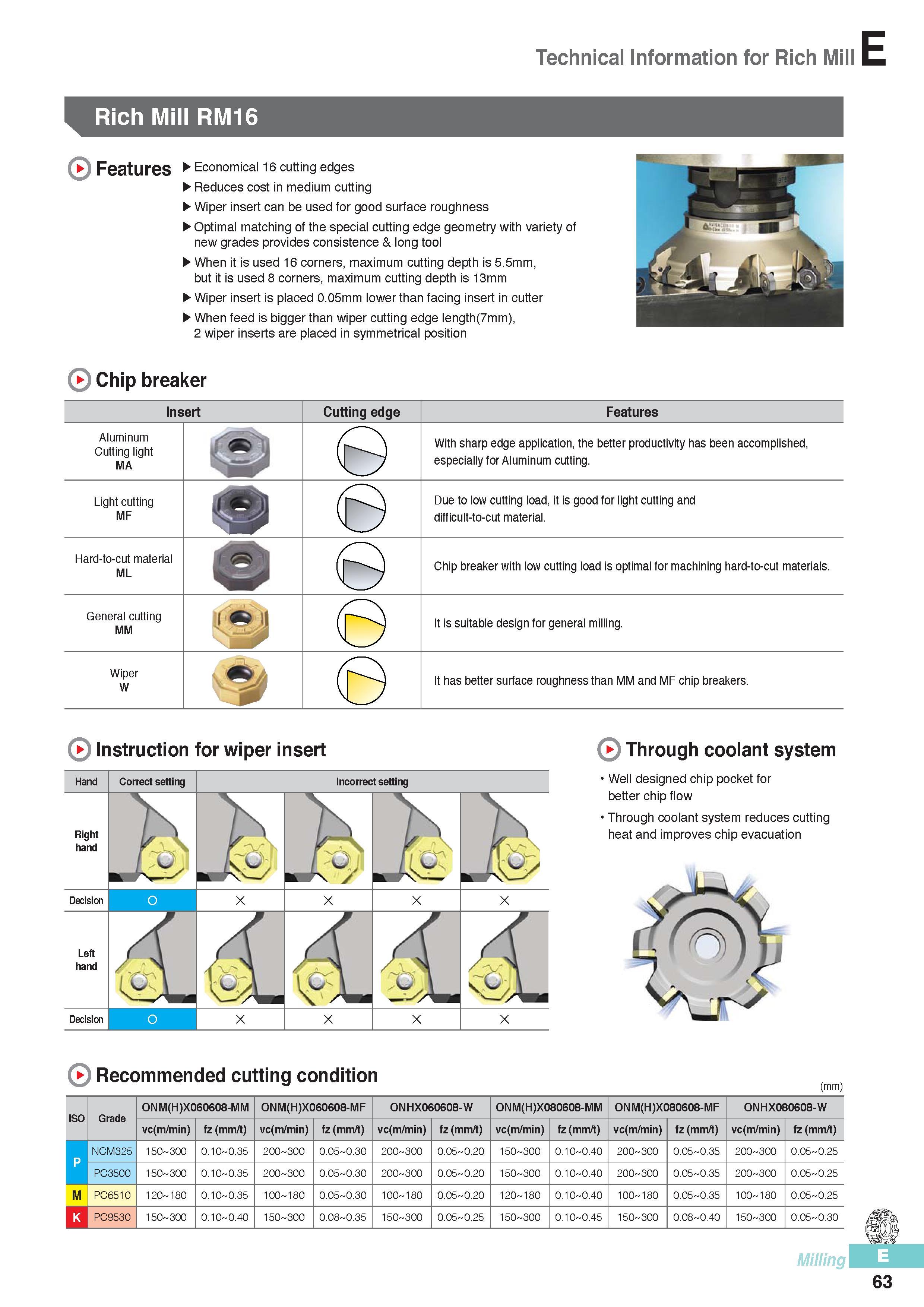

Metal milling cutters Korloy Rich Mill RM16 Features Economical 16 cutting edges Reduces cost in medium cutting Wiper insert can be used for good surface roughness Optimal matching of the special cutting edge geometry with variety of new grades provides consistence & long tool When it is used 16 corners, maximum cutting depth is 5.5mm, but it is used 8 corners, maximum cutting depth is 13mm Wiper insert is placed 0.05mm lower than facing insert in cutter When feed is bigger than wiper cutting edge length(7mm), 2 wiper inserts are placed in symmetrical position Chip breaker Insert Cutting edge Features Aluminum Cutting light MA W 9 With sharp edge application, the better productivity has been accomplished, especially for Aluminum cutting. Light cutting MF ( Due to low cutting load, it is good for light cutting and difficult-to-cut material. Hard-to-cut material ML w> ( 0 Chip breaker with low cutting load is optimal for machining hard-to-cut materials. General cutting MM 1 ( 0 It is suitable design for general milling. Wiper W ( 0 It has better surface roughness than MM and MF chip breakers. Instruction for wiper insert Hand Correct setting Incorrect setting Right hand ft M n Decision O Left hand 4. ll 4l. 4. 4l. Decision O Through coolant system Well designed chip pocket for better chip flow Through coolant system reduces cutting heat and improves chip evacuation Recommended cutting condition (mm) ISO Grade ONM(H)X060608-MM ONM(H)X060608-MF ONHX060608-W ONM(H)X080608-MM ONM(H)X080608-MF ONHX080608-W vc(m/min) fz (mm/t) vc(m/min) fz (mm/t) vc(m/min) fz (mm/t) vc(m/min) fz (mm/t) vc(m/min) fz (mm/t) vc(m/min) fz (mm/t) NCM325 150 300 0.10 0.35 200 300 0.05 0.30 200 300 0.05 0.20 150 300 0.10 0.40 200 300 0.05 0.35 200 300 0.05 0.25 P P PC3500 150 300 0.10 0.35 200 300 0.05 0.30 200 300 0.05 0.20 150 300 0.10 0.40 200 300 0.05 0.35 200 300 0.05 0.25 M PC6510 120 180 0.10 0.35 100 180 0.05 0.30 100 180 0.05 0.20 120 180 0.10 0.40 100 180 0.05 0.35 100 180 0.05 0.25 K PC9530 150 300 0.10 0.40 150 300 0.08 0.35 150 300 0.05 0.25 150 300 0.10 0.45 150 300 0.08 0.40 150 300 0.05 0.30 Milling 63 Technical Information for Rich Mill Rich Mill RM16
